Test 14 - A/C Switch Circuit
Test 14 - A/C Switch Circuit

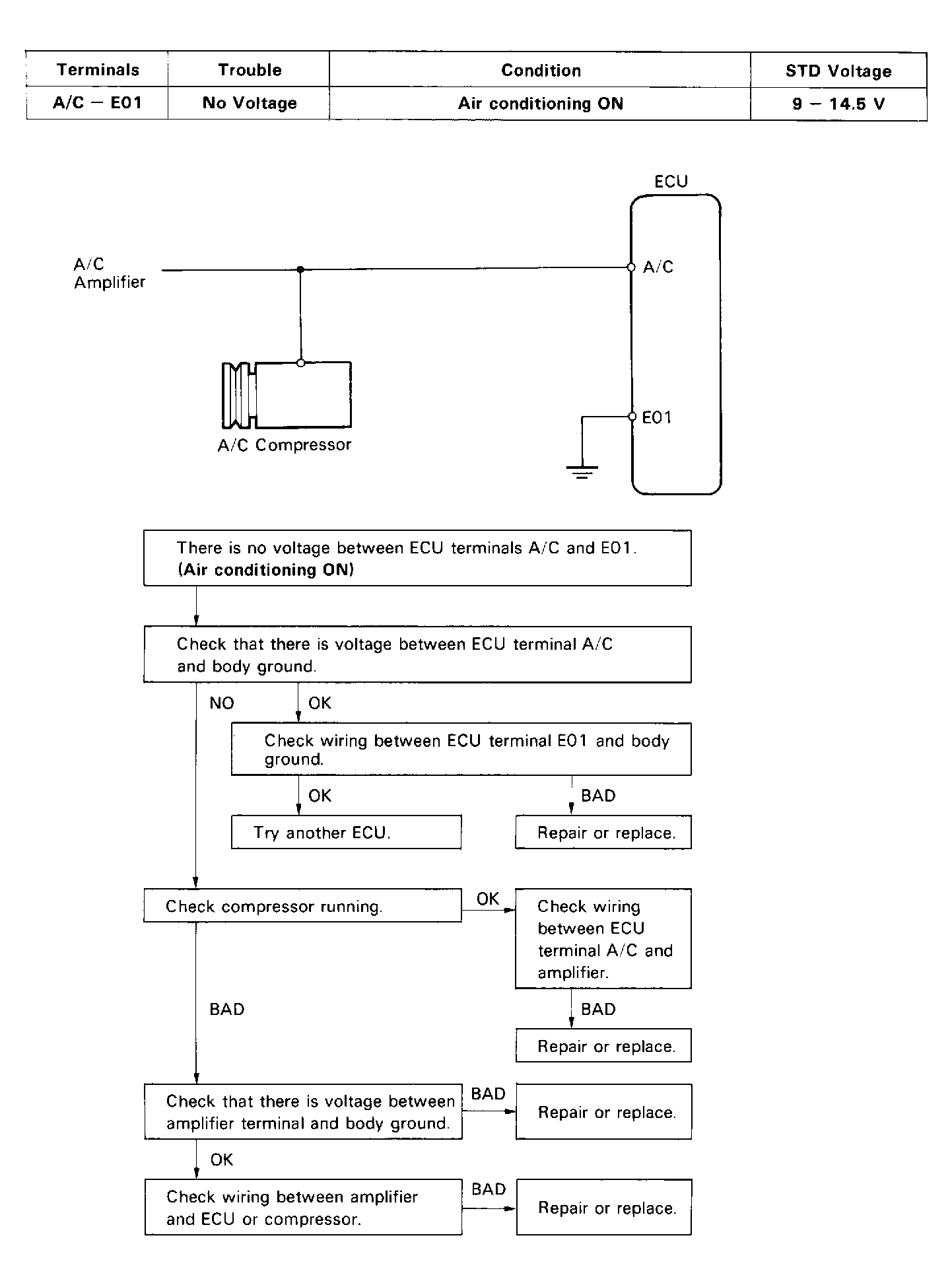

Fig 1: Test 14 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
