Test 4 Or Code 22 - Coolant Temperature Switch Signal
Test 4 Or Code 22 - Coolant Temperature Switch Signal

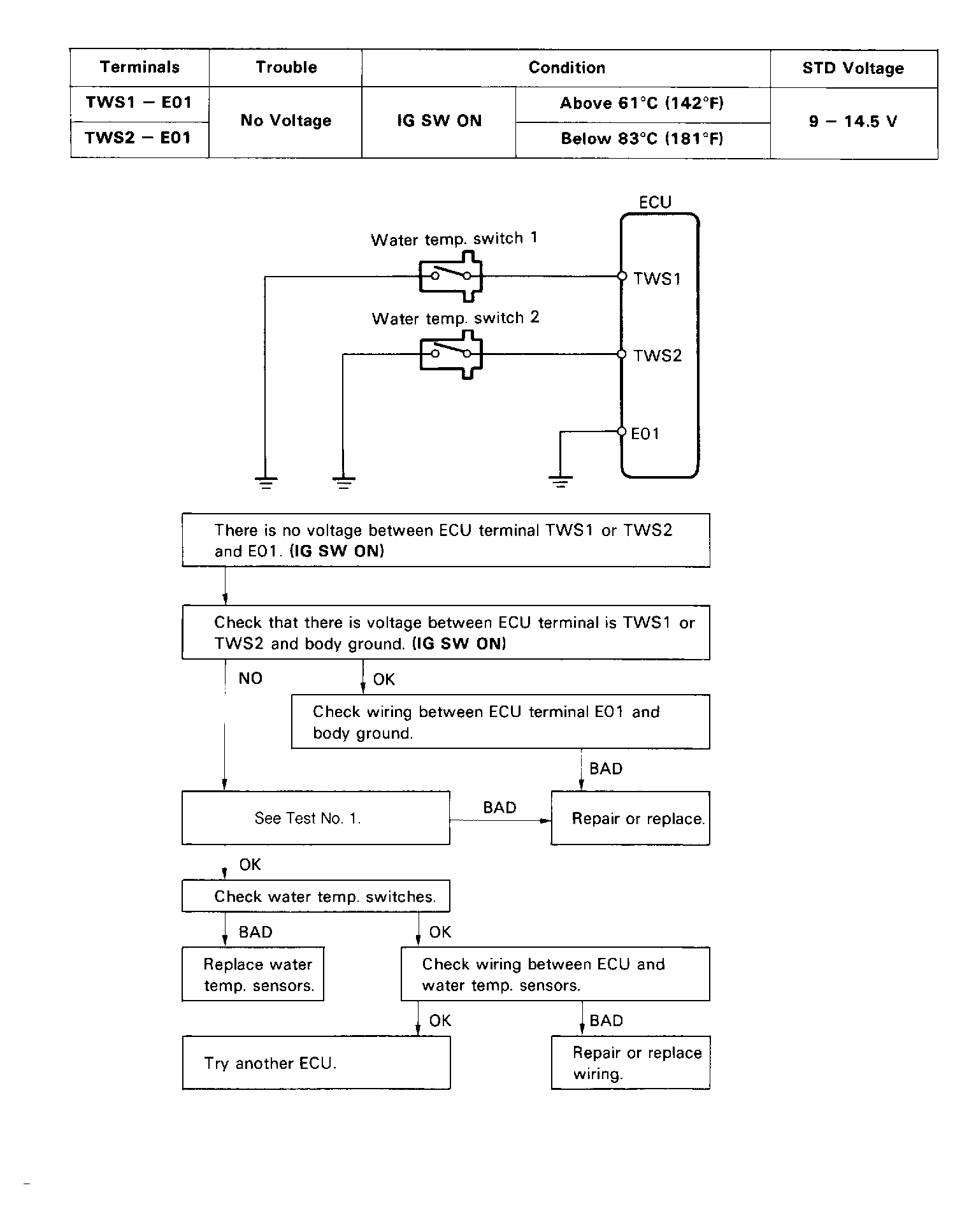

Fig 1: Test 4 or Code 22 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
