Test 6 Or Code 31 - Vacuum Switch Signal
Test 6 Or Code 31 - Vacuum Switch Signal

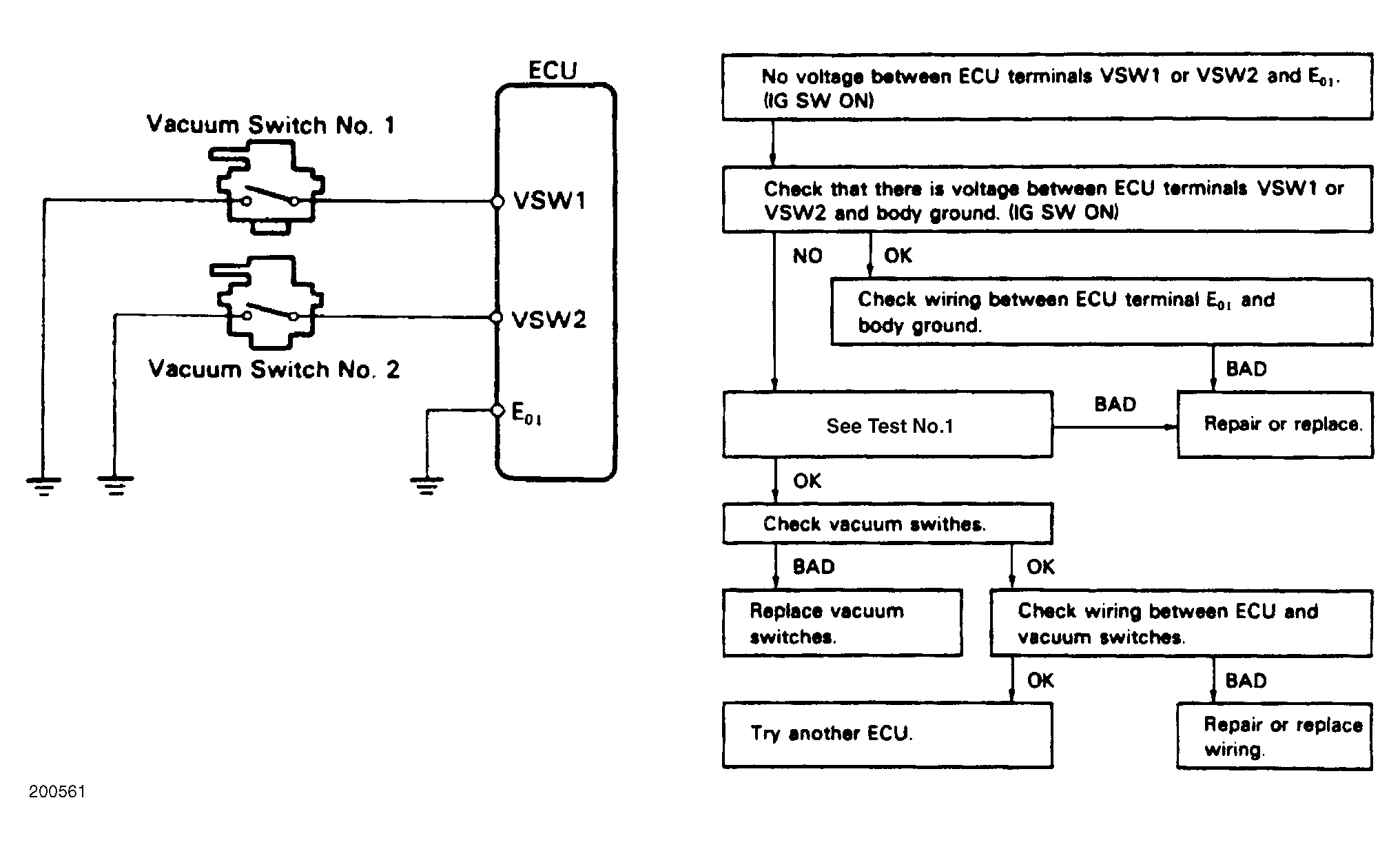

Fig 1: Test 6 or Code 31 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
