Test 12 - Throttle Positioner Circuit
Test 12 - Throttle Positioner Circuit

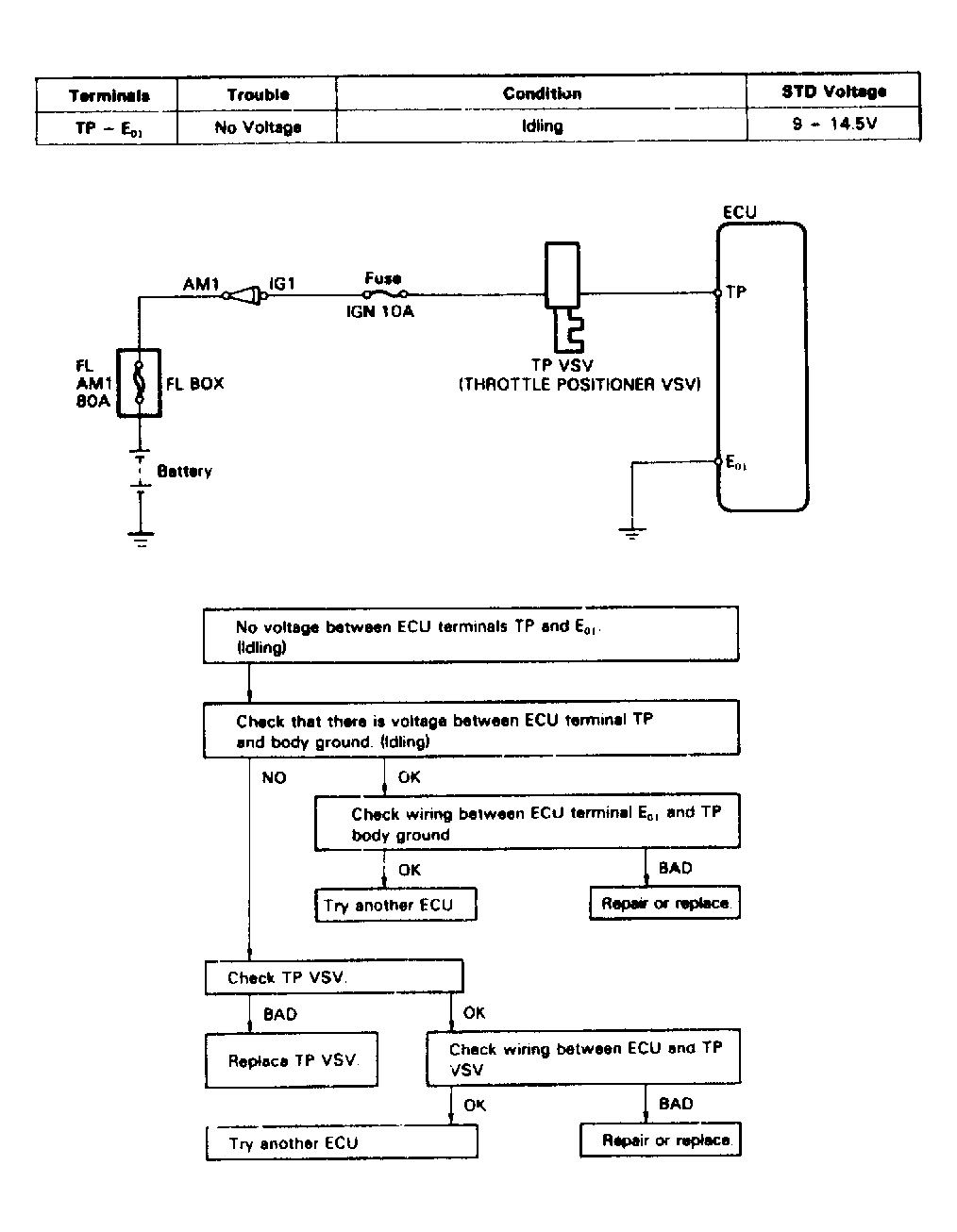

Fig 1: Test 12 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
