Home › Toyota › 1990 › Tercel DX, Standard › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Connector Identification

Connector Identification

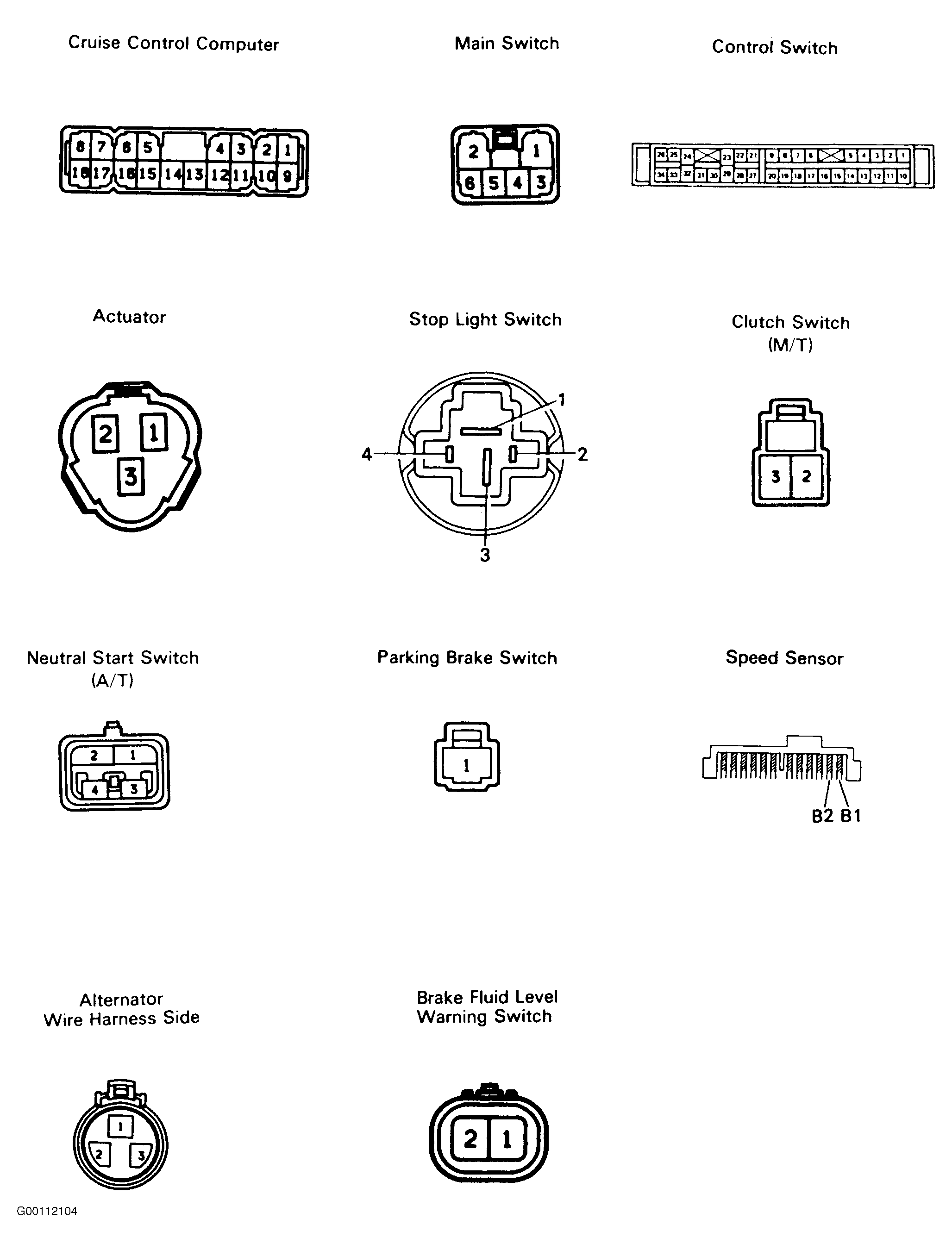

Fig 1: Identifying Cruise Control System Connectors & Terminals
G00112104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
