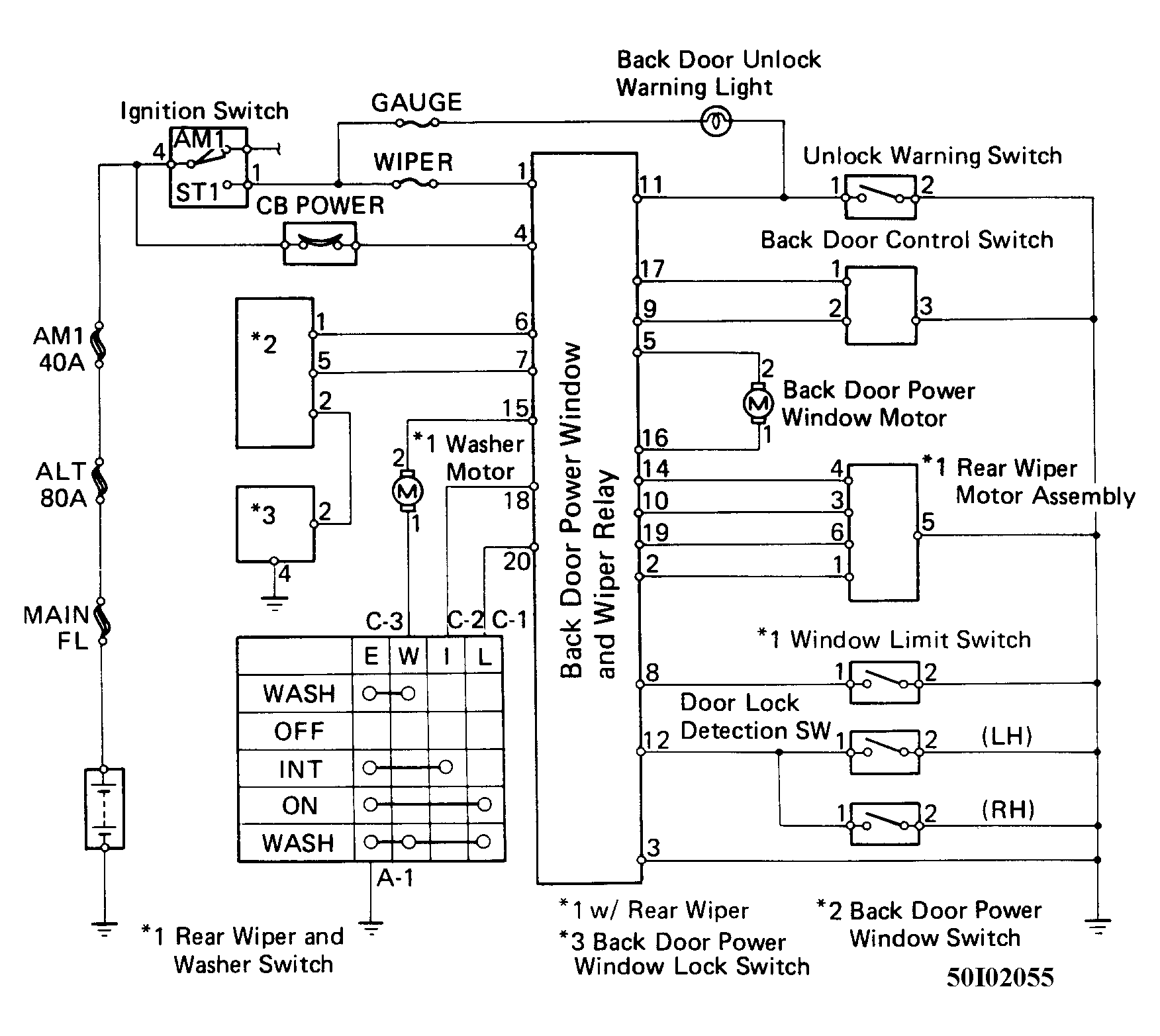

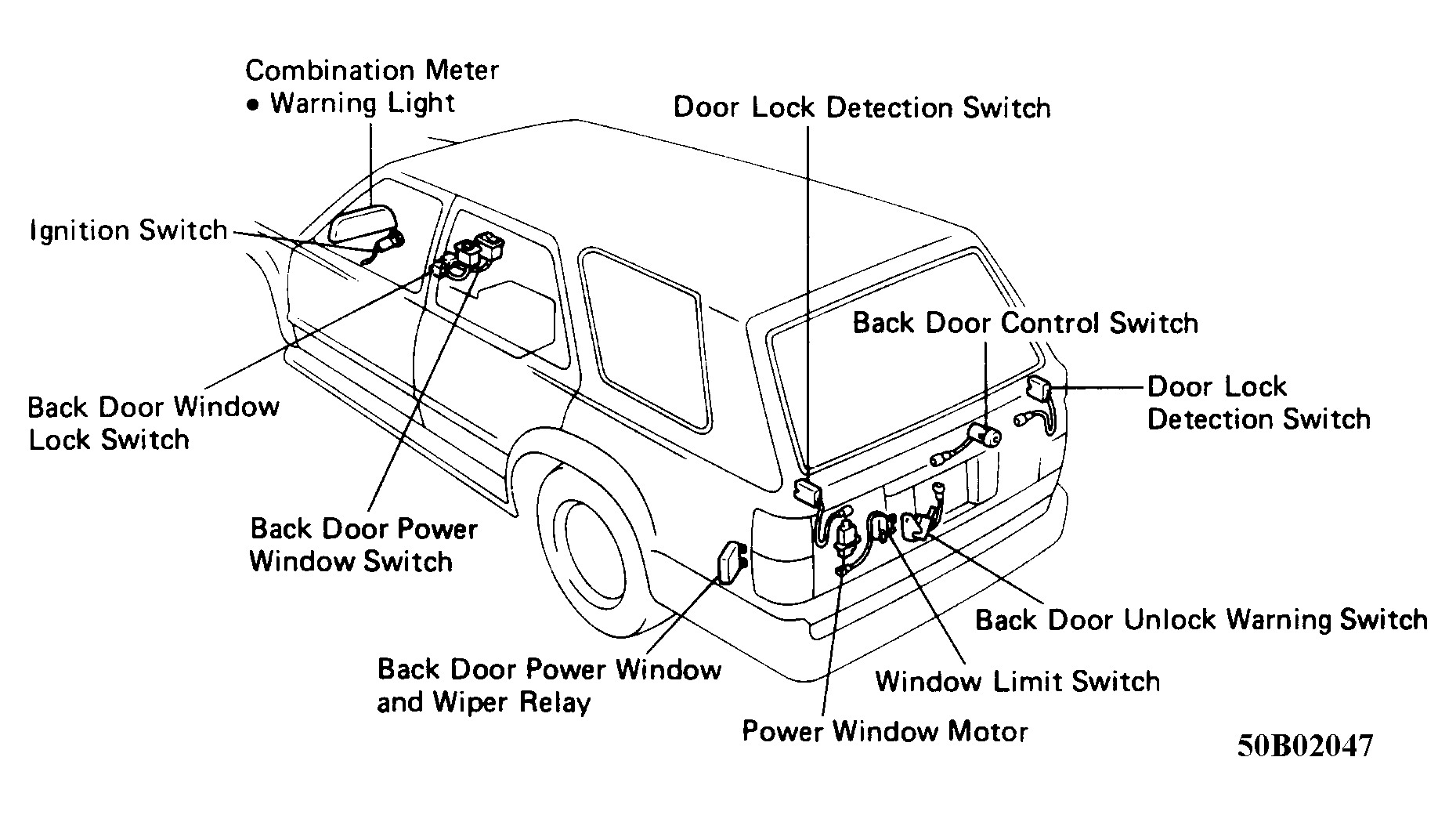

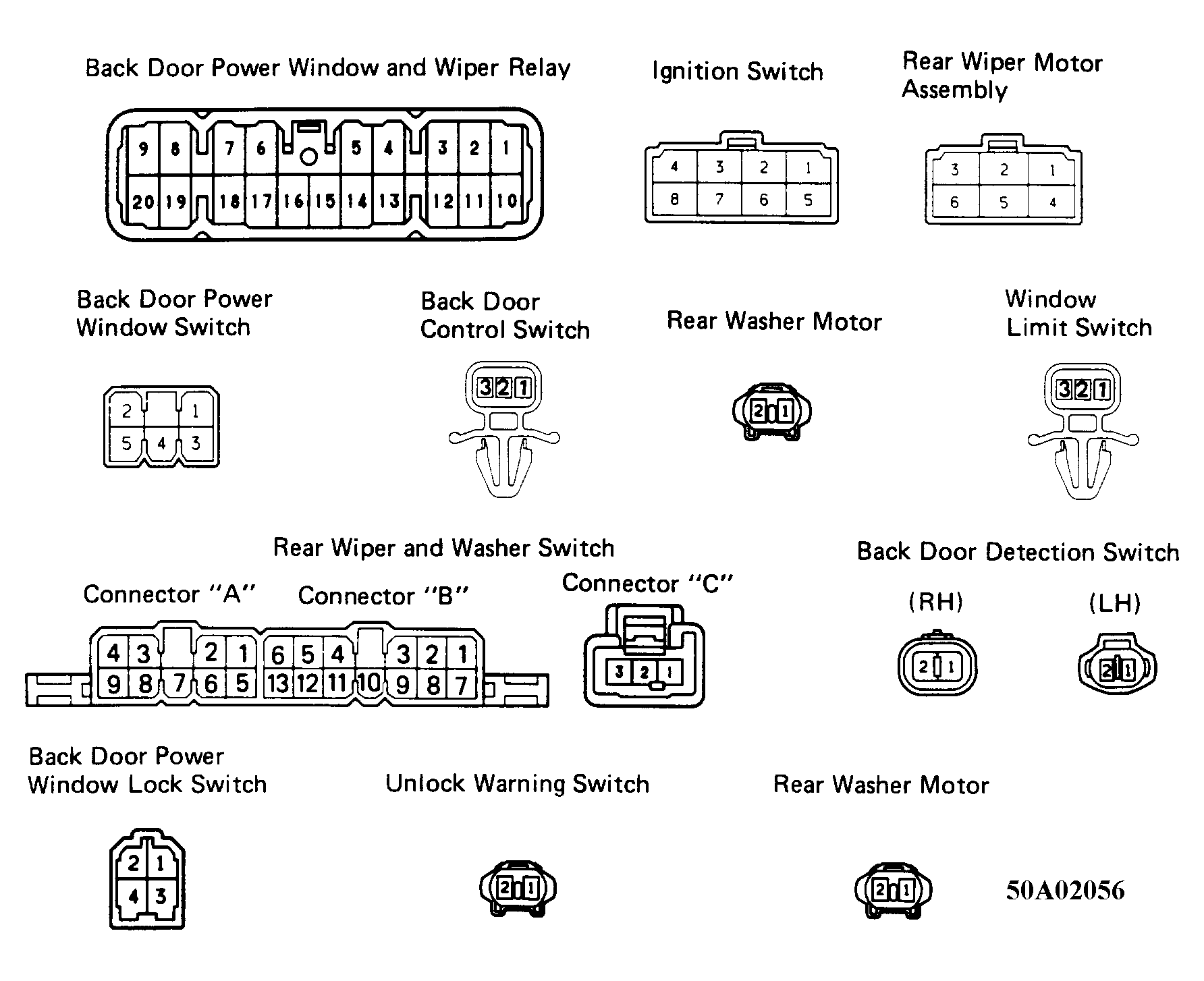

Back Door Power Window Control System
POWER WINDOW & BACK DOOR WARNING LIGHT TROUBLE SHOOTING
| Problem/Possible Cause | Remedy | |
|---|---|---|
| Power Window Does Not Work | ||
| Fusible Link Blow | Replace Fusible Link | |
| Circuit Breaker Off | Reset breaker and check for short | |
| WIPER fuse blown | Replace fuse and check for short | |
| Power window & wiper relay faulty | Check relay | |
| Power window regulator switch faulty | Check switch | |
| Window lock switch faulty | Check switch | |
| Back door control switch faulty | Check switch | |
| Door lock detection switch faulty | Check switch | |
| Power window motor faulty | Check motor | |
| Rear wiper motor faulty (w/rear wiper) | Check motor | |
| Wiring or ground faulty | Repair as necessary | |
| BACK DOOR Warning Light Does Not Work (Ignition Switch ON) | ||
| GAUGE Fuse Blown | Replace fuse and check for short | |
| Light Bulb Burned out | Replace Bulb | |
| Door Lock detection sw. faulty (Back door Open) | Check switch | |
| Back door unlock warning switch faulty (Back door unlocked) | Check switch | |
| Power window & wiper relay faulty | Check relay | |
| Wiring or ground faulty | Repair as necessary | |
| Back Door Unlock warning buzzer warning does not sound | ||
| Wiper Fuse blown | Replace fuse and check for short | |
| Door lock detection switch | Check switch | |
| Power window regulator switch faulty | Check switch | |
| Back door control switch faulty | Check switch | |
| Power window & wiper relay faulty | Check relay | |
| Wiring or ground faulty | Repair as necessary | |
