Engine Controls - Tests W/Codes - 4-CYL
›
Tic Code Charts
›
Diagnostic Circuit Check
Diagnostic Circuit Check
CAUTION:
Perform all voltage measurements with ECU harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

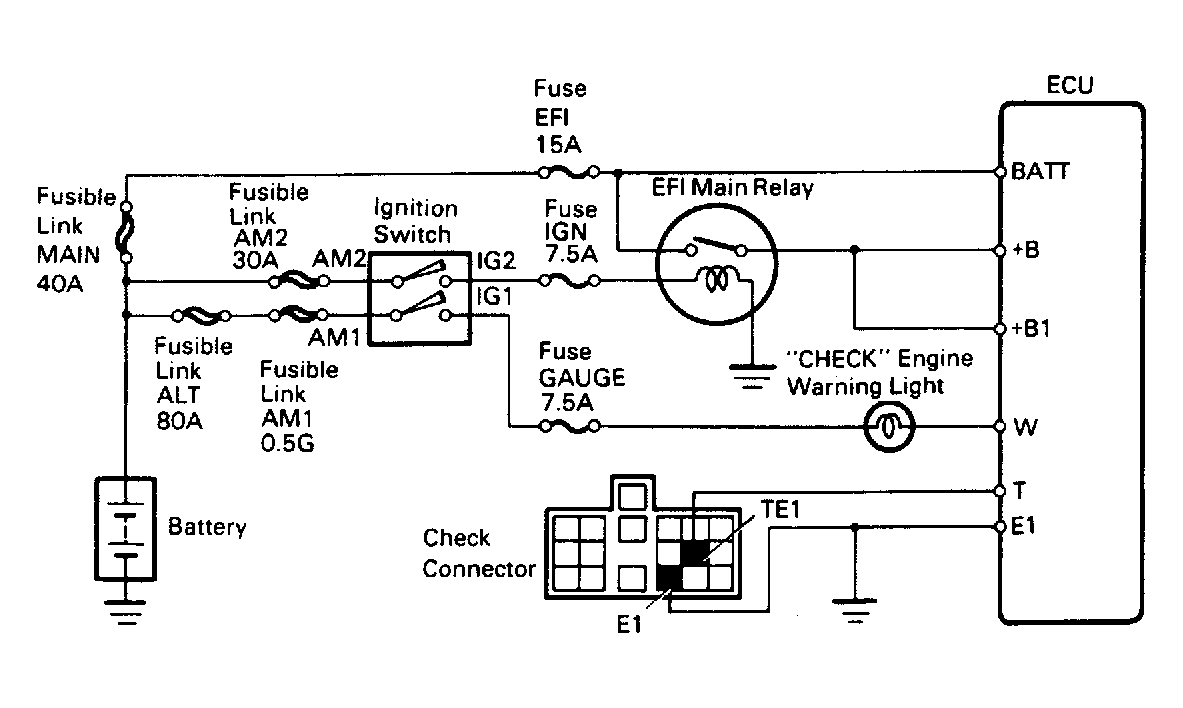

Fig 1: Diagnostic Circuit Check Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

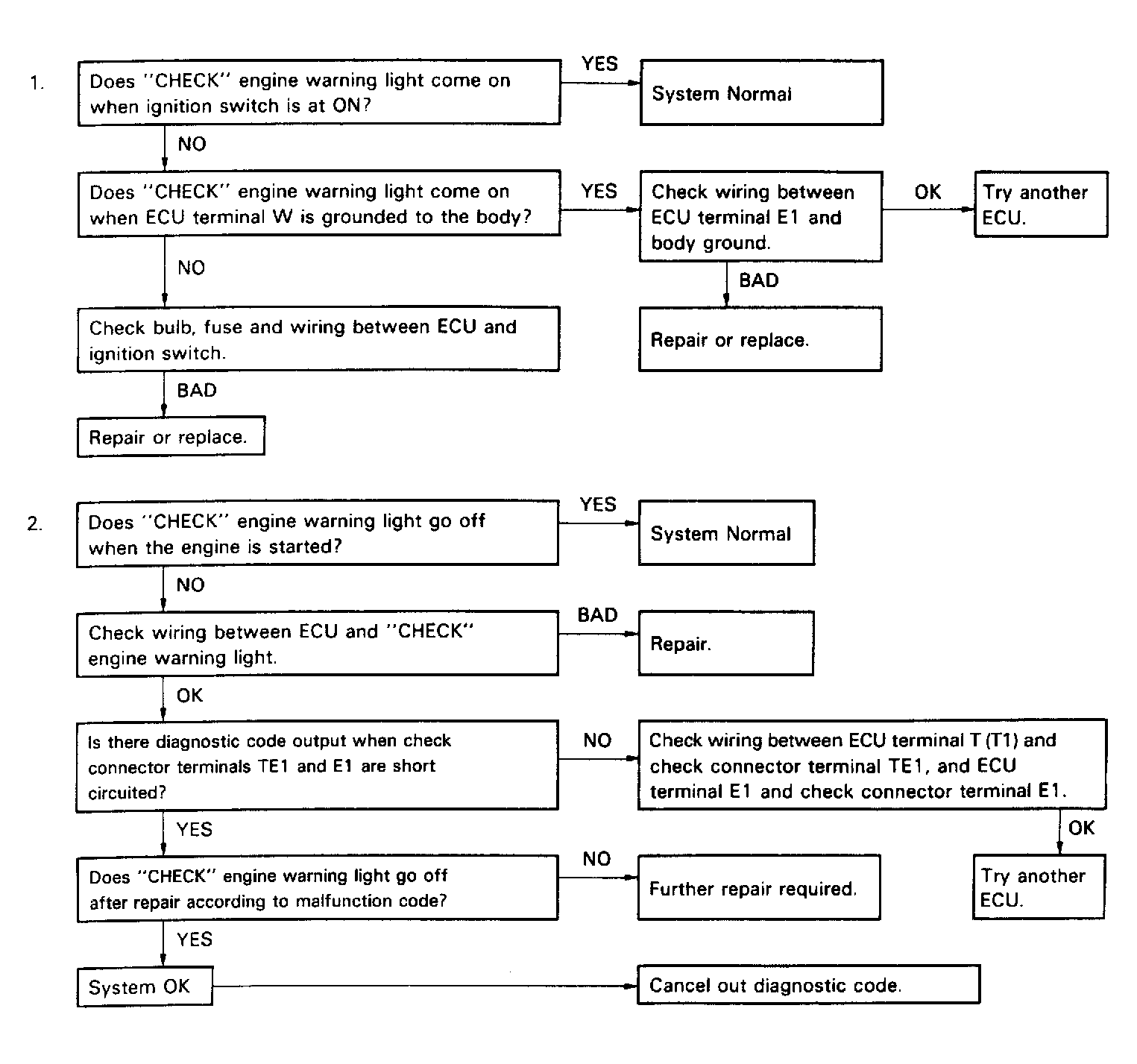

Fig 2: Diagnostic Circuit Check Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
