Ignition Timing

IGNITION TIMING - Degrees BTDC @ RPM

Application

Base Timing ⁽¹⁾

Advance Timing

1.6L

10 @ Idle

5-15 @ Idle

2.0L

10 @ 750

14-19 @ Idle

2.2L

10 @ 700

13-22 @ Idle

⁽¹⁾	With check connector terminals TE1 and E1 jumpered.

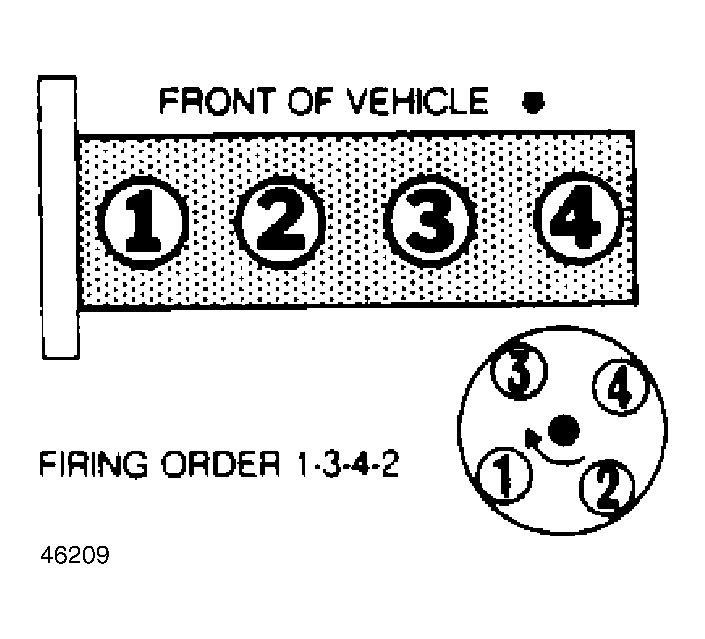

Fig 1: Firing Order & Distributor Rotation

G46209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
