Code 21, 27/Test No. 4 - Oxygen Sensor Signal

NOTE: Code 27 applies to 5S-FE only.

Fig 1: Code 21/Test No. 4 Schematic (3S-GTE) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

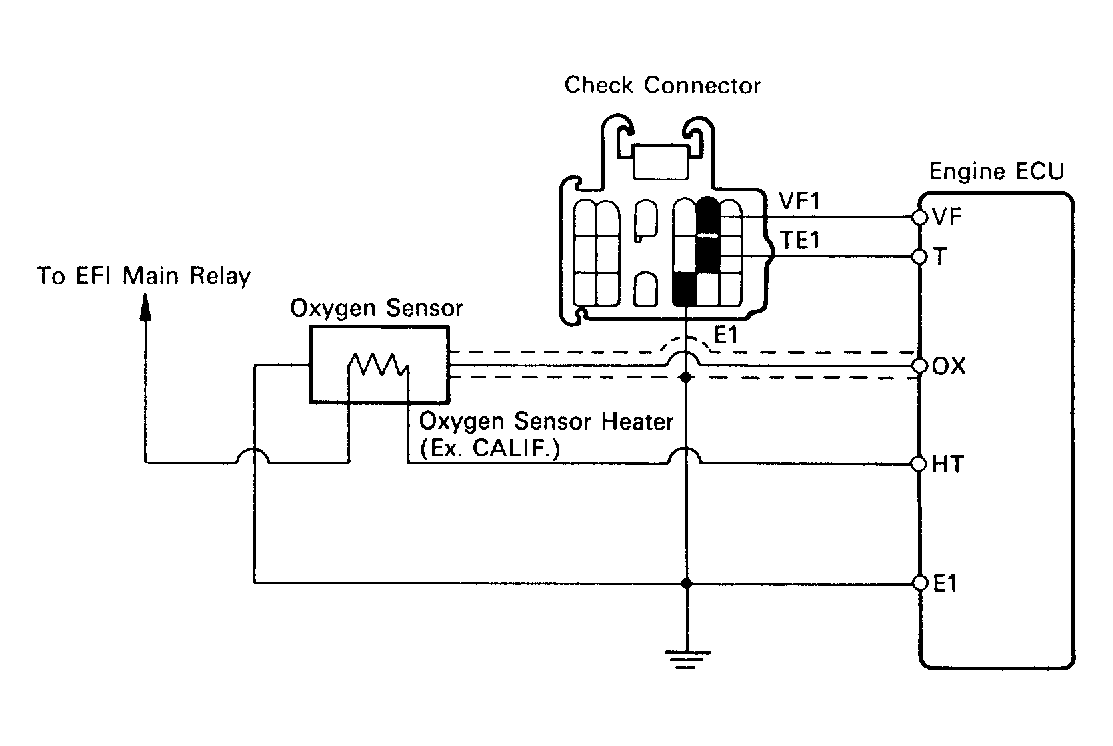

Fig 2: Code 21/Test No. 4 Schematic (4A-FE) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

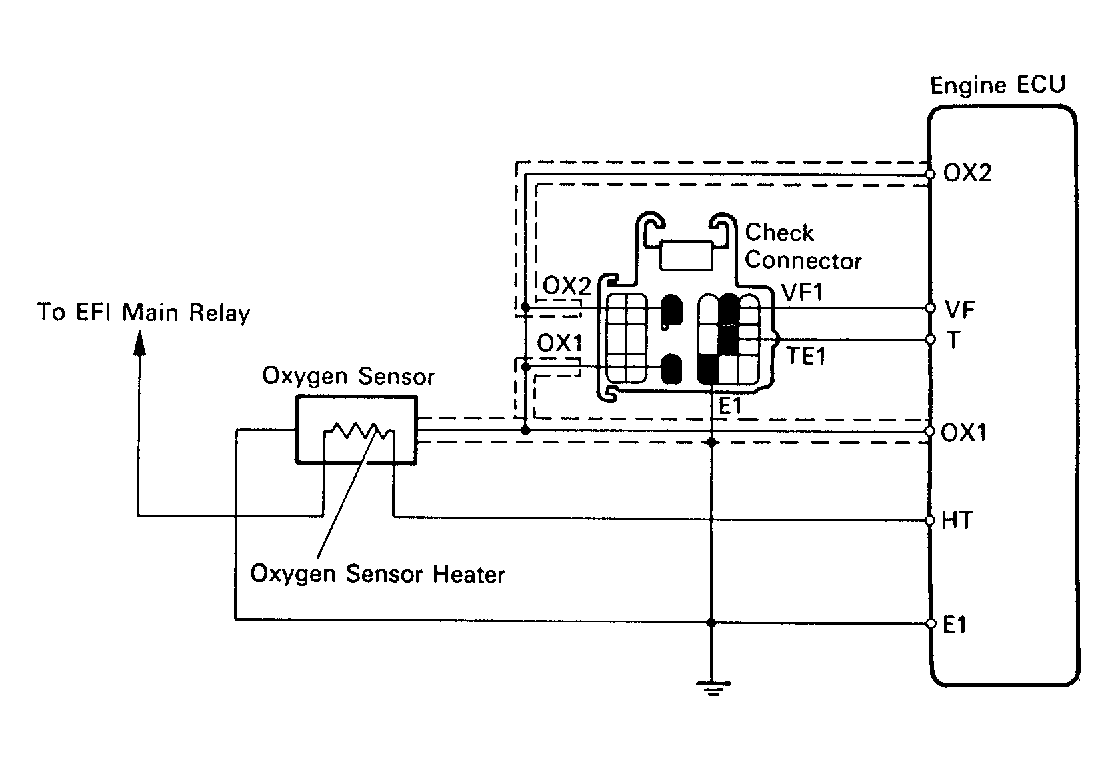

Fig 3: Code 21, 27/Test No. 4 Schematic (5S-FE) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

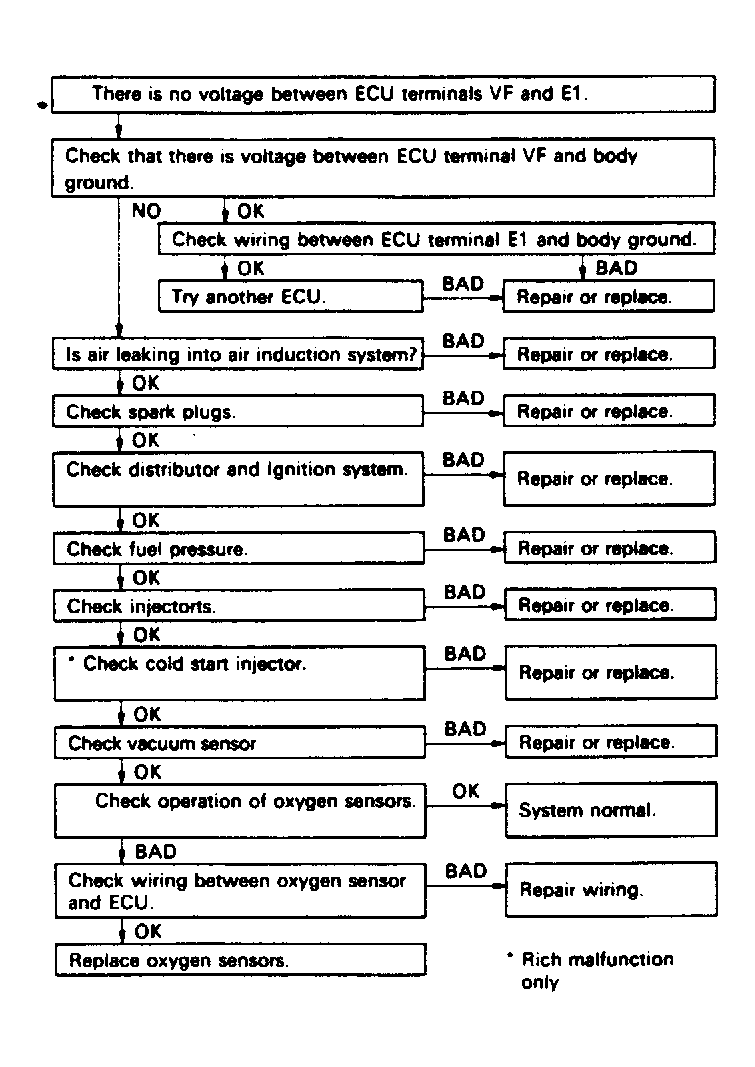

Fig 4: Code 21/Test No. 4 Flow Chart (3S-GTE) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Code 21, 27/Test No. 4 Flow Chart (4A-FE & 5S-FE) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
