Instrument Panel: Testing: Voltmeter: Pickup

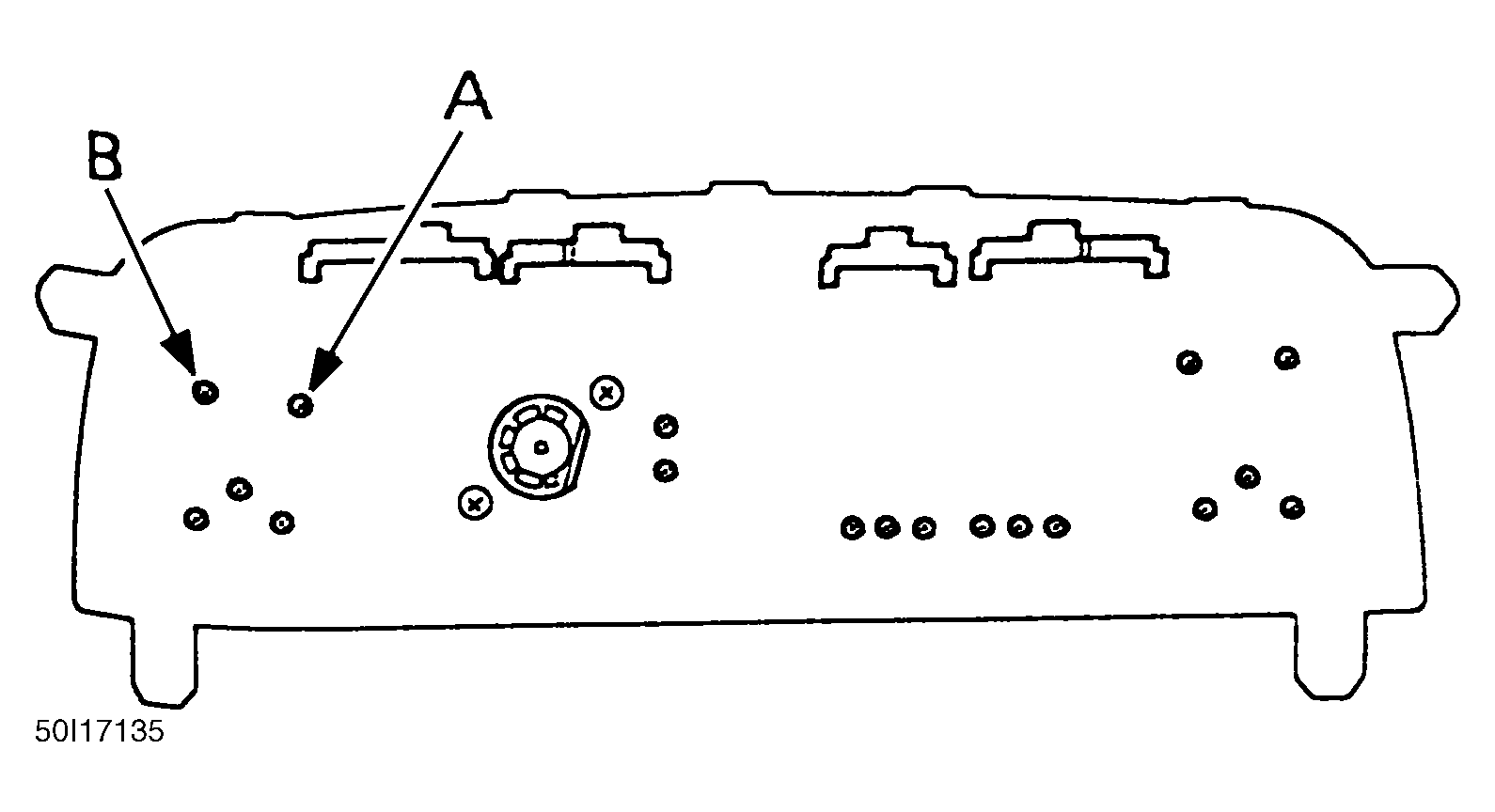

Remove instrument cluster and disconnect harness connector. Measure resistance between voltmeter terminal screws "A" and "B". See Fig 1. Resistance should be approximately 347 Ohms. If resistance is not as specified, replace voltmeter.
