Component Locations

Fig 1: Locating TCCS Components (Camry 2VZ-FE)

G118498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating TCCS Components (Camry 3S-FE)

G118494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating TCCS Components (Celica Turbo 3S-GTE)

G90J21328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating TCCS Components (Celica 4A-FE)

G91I18224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating TCCS Components (Celica 5S-FE)

G118497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Locating TCCS Components (Corolla 4A-FE - 1 of 2)

G90B21338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Locating TCCS Components (Corolla 4A-FE - 2 of 2)

G118502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

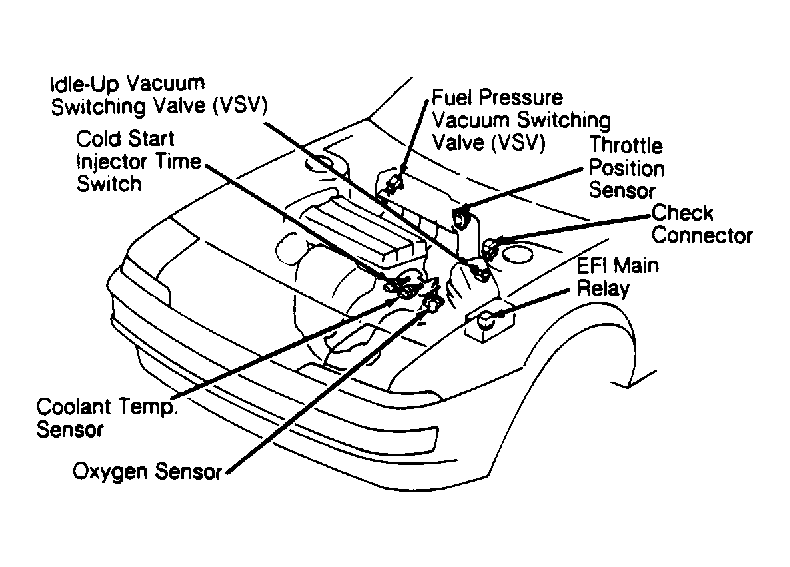

Fig 8: Locating TCCS Components (Corolla 4A-GE - 1 of 2)

G118501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating TCCS Components (Corolla 4A-GE - 2 of 2)

G118502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Locating TCCS Components (Cressida)

G118499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Locating TCCS Components (Land Cruiser)

G91J18225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Locating TCCS Components (MR2 Turbo 3S-GTE)

G91A18226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Locating TCCS Components (MR2 Non-Turbo 5S-FE)

G91B18227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Locating TCCS Components (Pickup & 4Runner 22R-E)

G90A21329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Locating TCCS Components (Pickup & 4Runner 3VZ-E)

G90D21330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Locating TCCS Components (Previa)

G91C18228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Locating TCCS Components (Supra Non-Turbo - 1 of 2)

G118508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Locating TCCS Components (Supra Non-Turbo - 2 of 2)

G118509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Locating TCCS Components (Supra Turbo - 1 of 2)

G90I21327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Locating TCCS Components (Supra Turbo - 2 of 2)

G118509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Locating TCCS Components (Tercel - 1 of 2)

G91D18229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Locating TCCS Components (Tercel - 2 of 2)

G91G18230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
