Component Locations

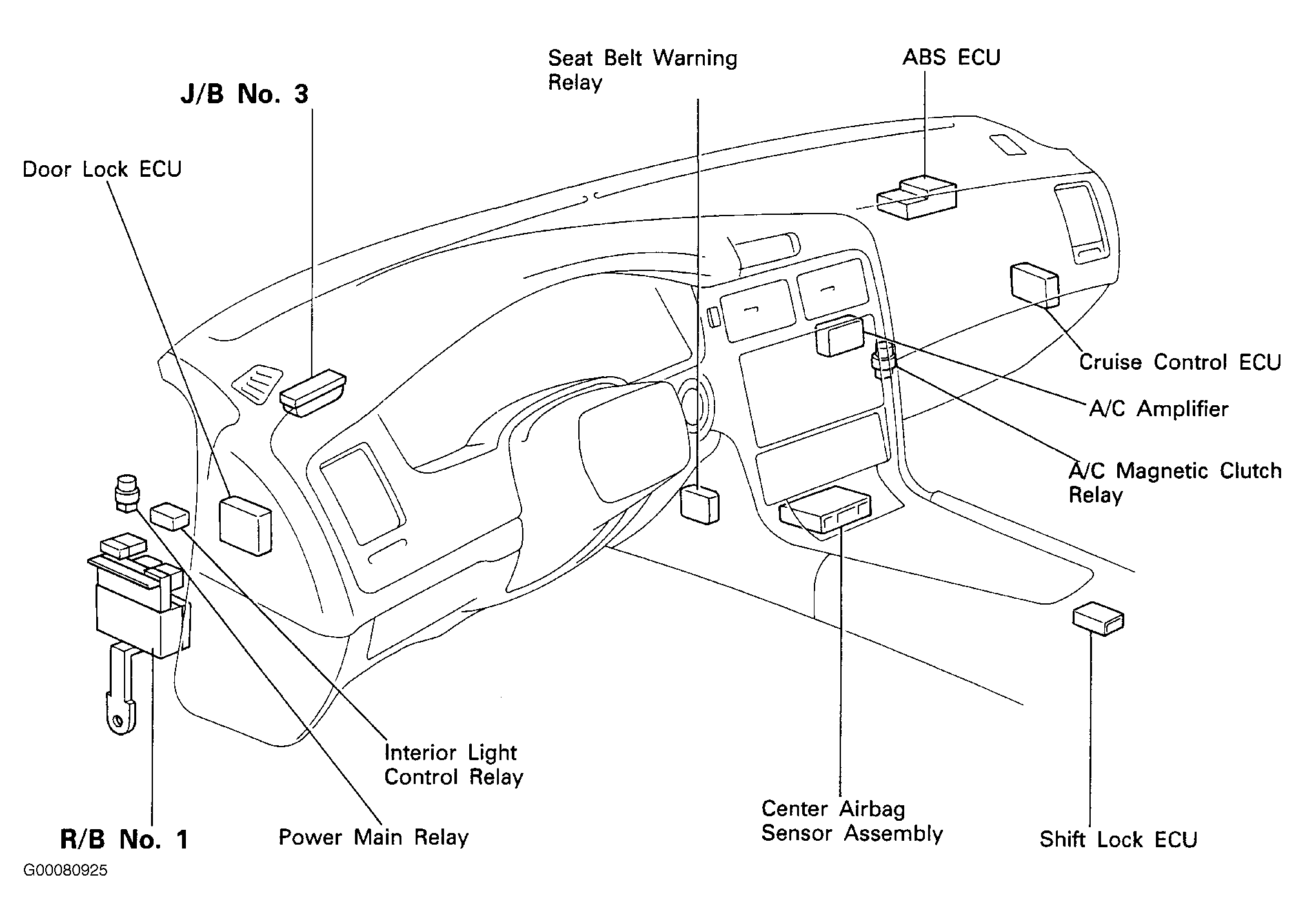

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

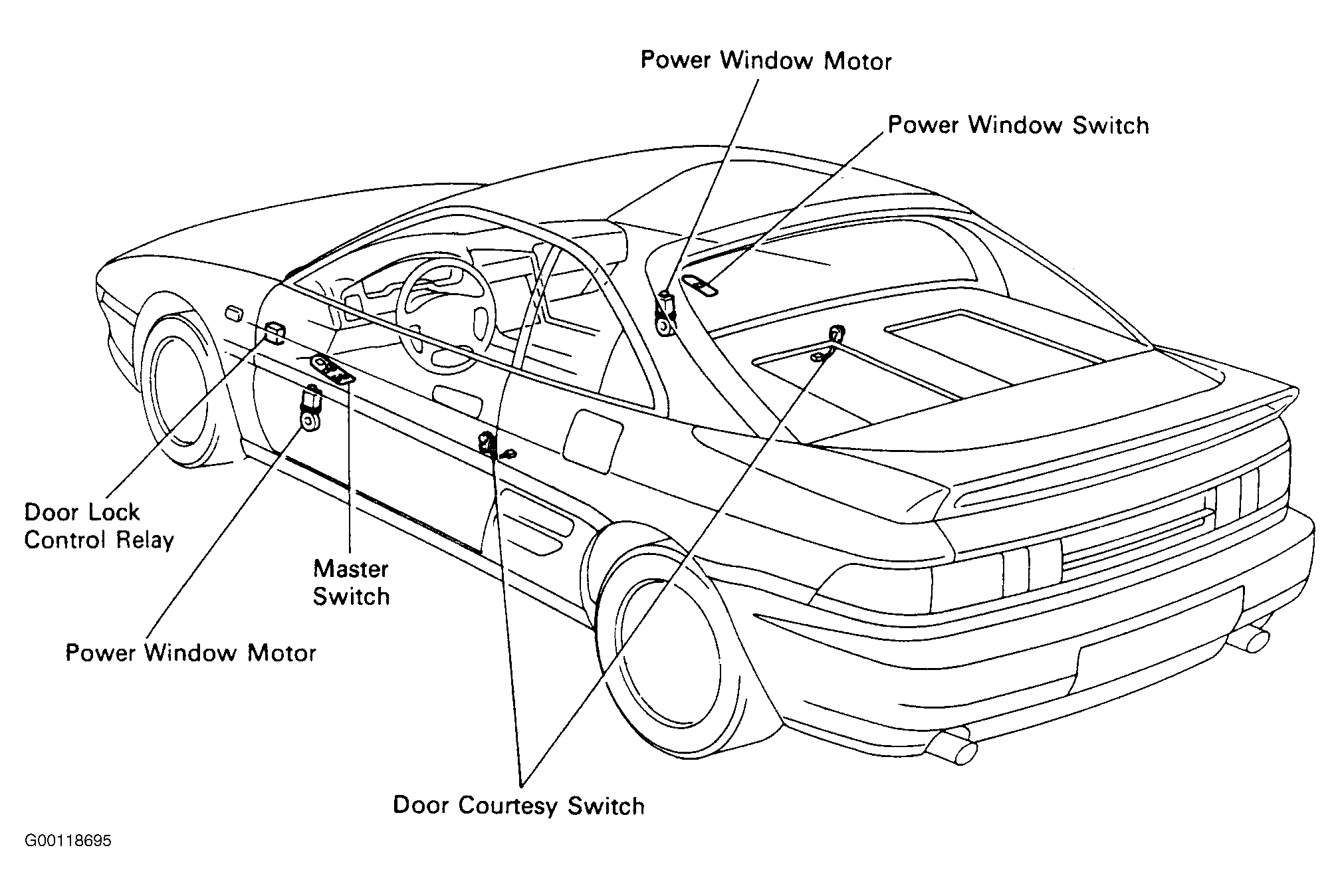

Fig 1: Locating Power Window Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Door Lock ECU, Junction Block No. 1 & Power Main Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

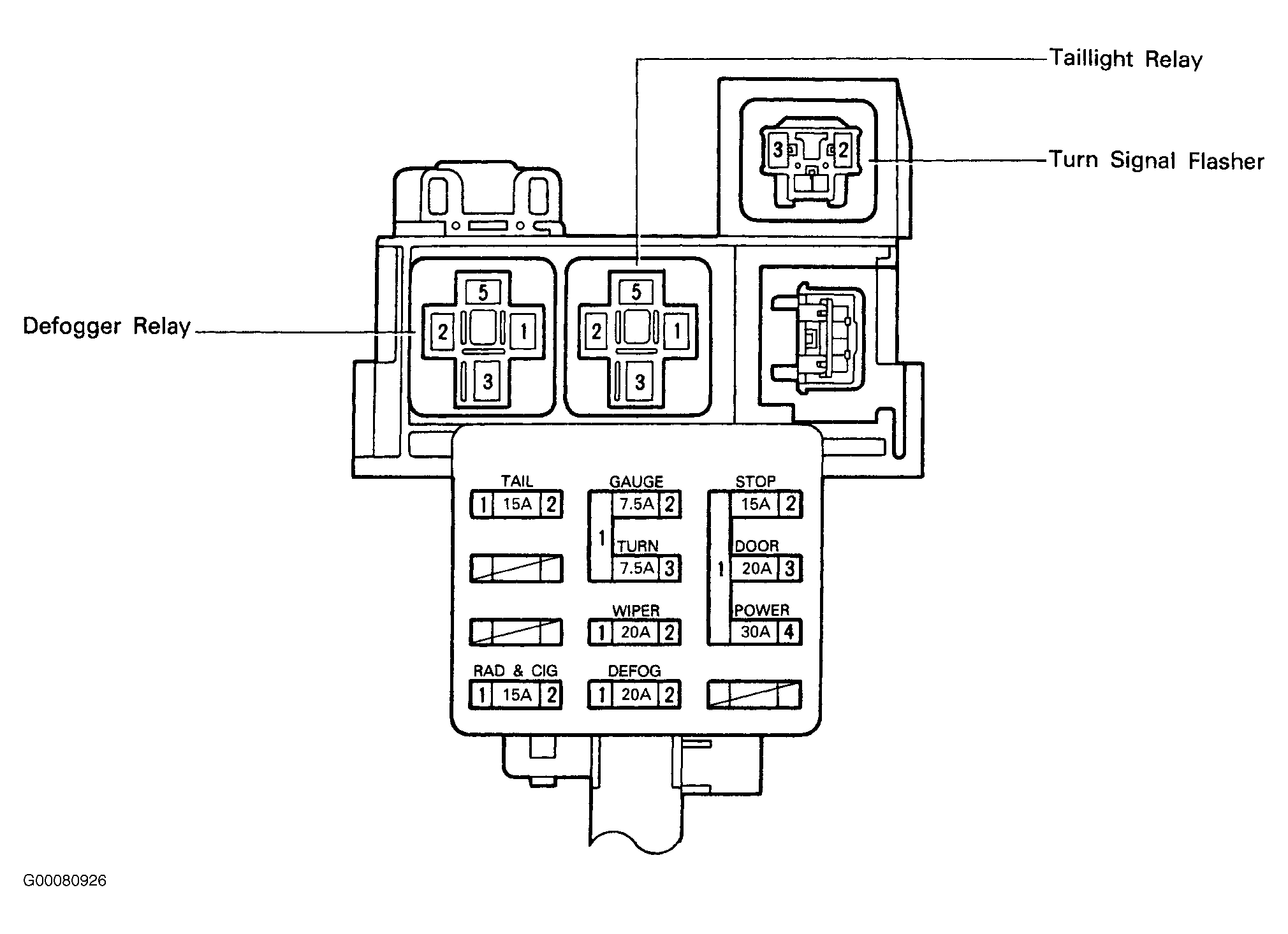

Fig 3: Identifying Relay Block No. 1 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
