Code 71/Test No. 8 - EGR System Malfunction

Fig 1: Code 71/Test No. 8 Schematic EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

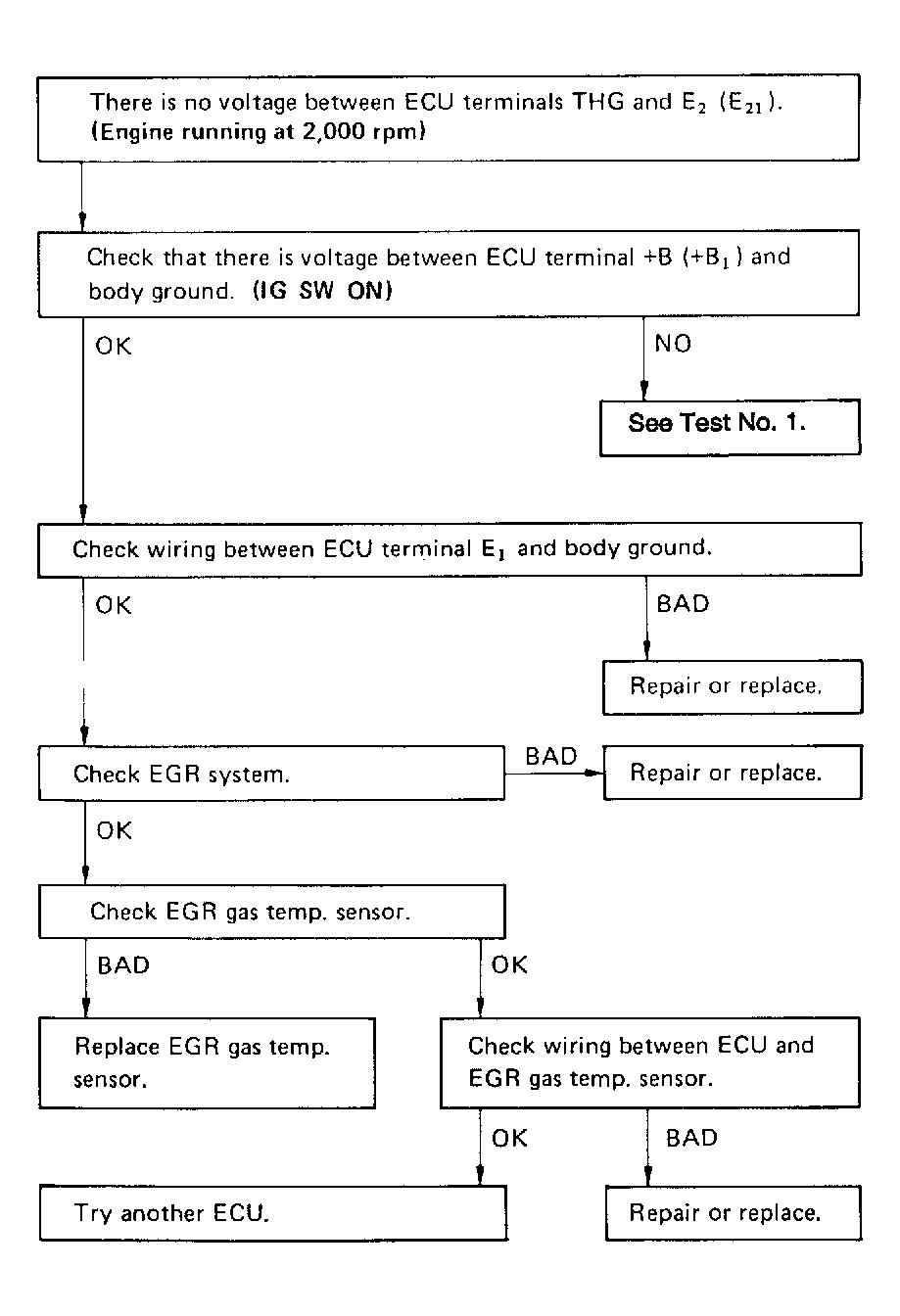

Fig 2: Code 71/Test No. 8 Flow Chart EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
