Test No. 10 - Cold Start Injector Circuit

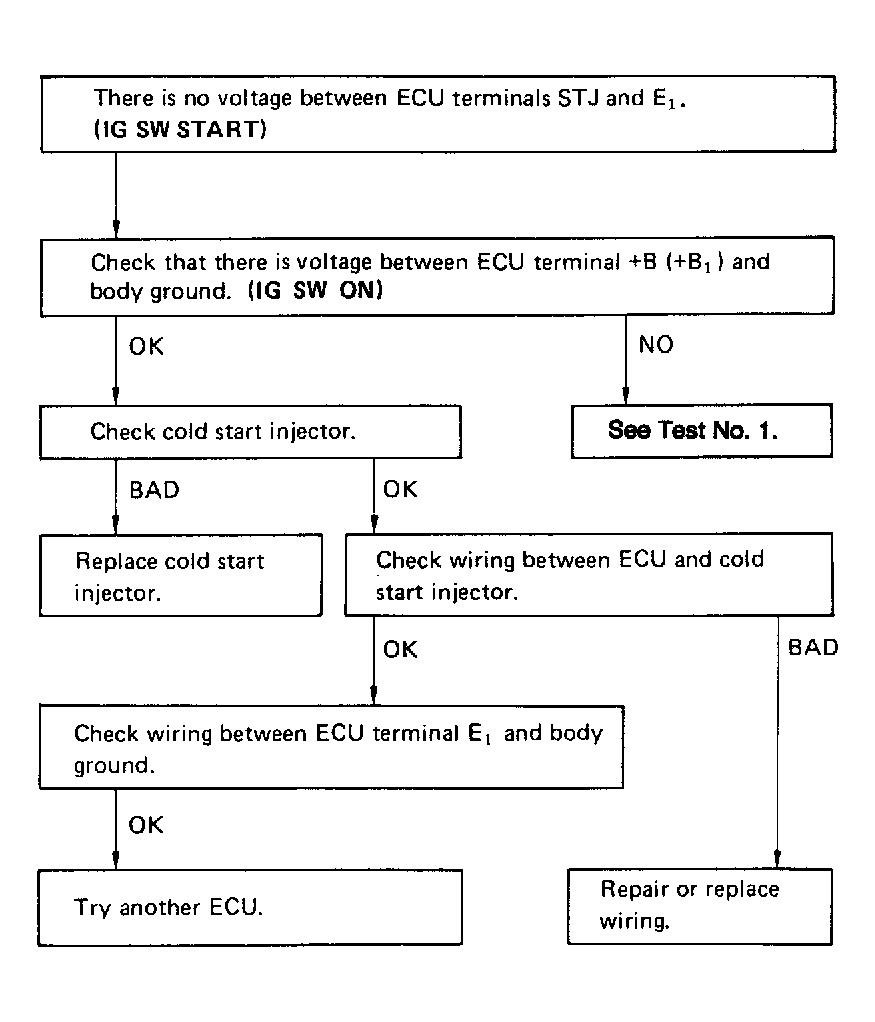

TEST NO. 10-COLD START INJECTOR CIRCUIT TROUBLE
| Terminal |
Trouble |
Condition |
STD Voltage |
| STJ-E1 |
No Voltage |
Ignition Switch In Start Position Coolant Temp. 80°C(176°F) |
6 - 12V |
