Test No. 12 - Stoplight Switch Circuit

TEST NO. 12 - STOPLIGHT SWITCH CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
STP-E1	No Voltage	Stop Light Switch ON	10 - 14V

Fig 1: Test No. 12 Schematic Stoplight Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

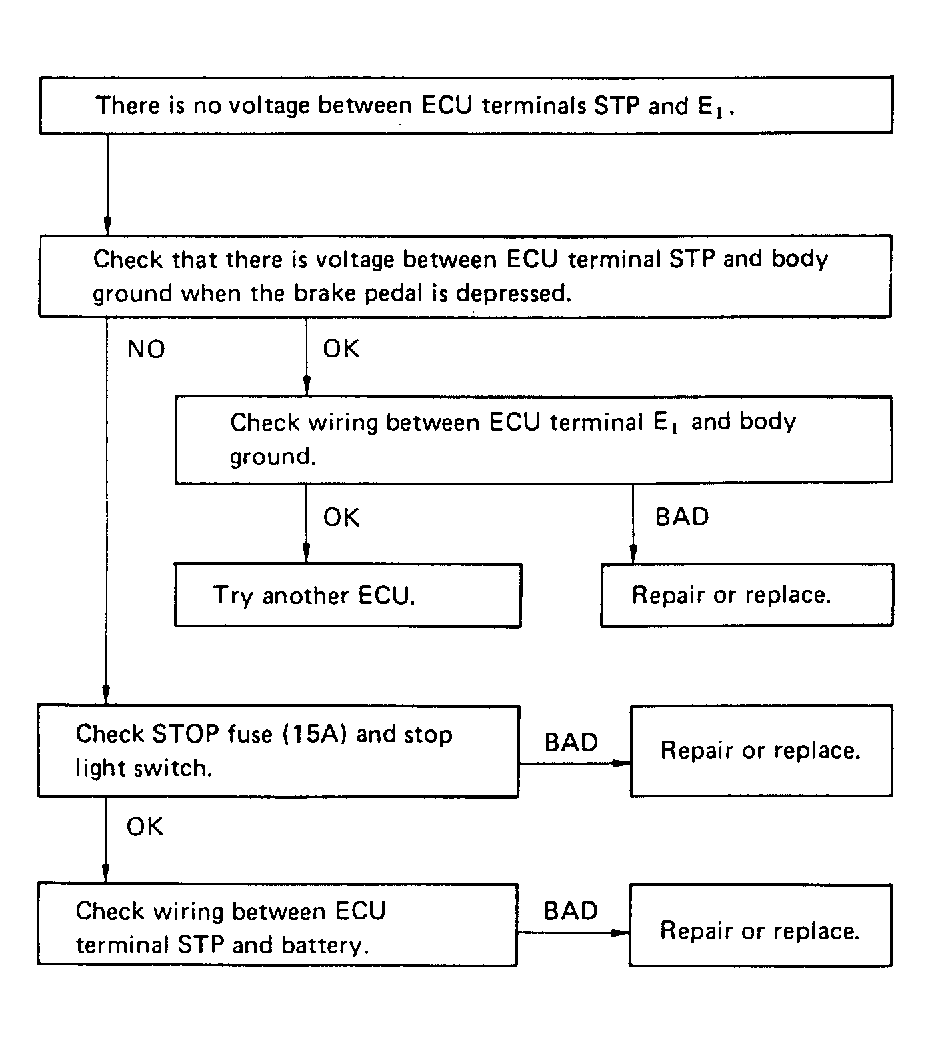

Fig 2: Test No. 12 Flow Chart Stoplight Switch Circuit
