Theft Deterrent Computer Inputs

Disconnect the computer connector. Inspect the connector on the wire harness side for correct voltages and continuity. See Fig 1 and Fig 2 .

Fig 1: Identifying Theft Deterrent Computer Wire Harness Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

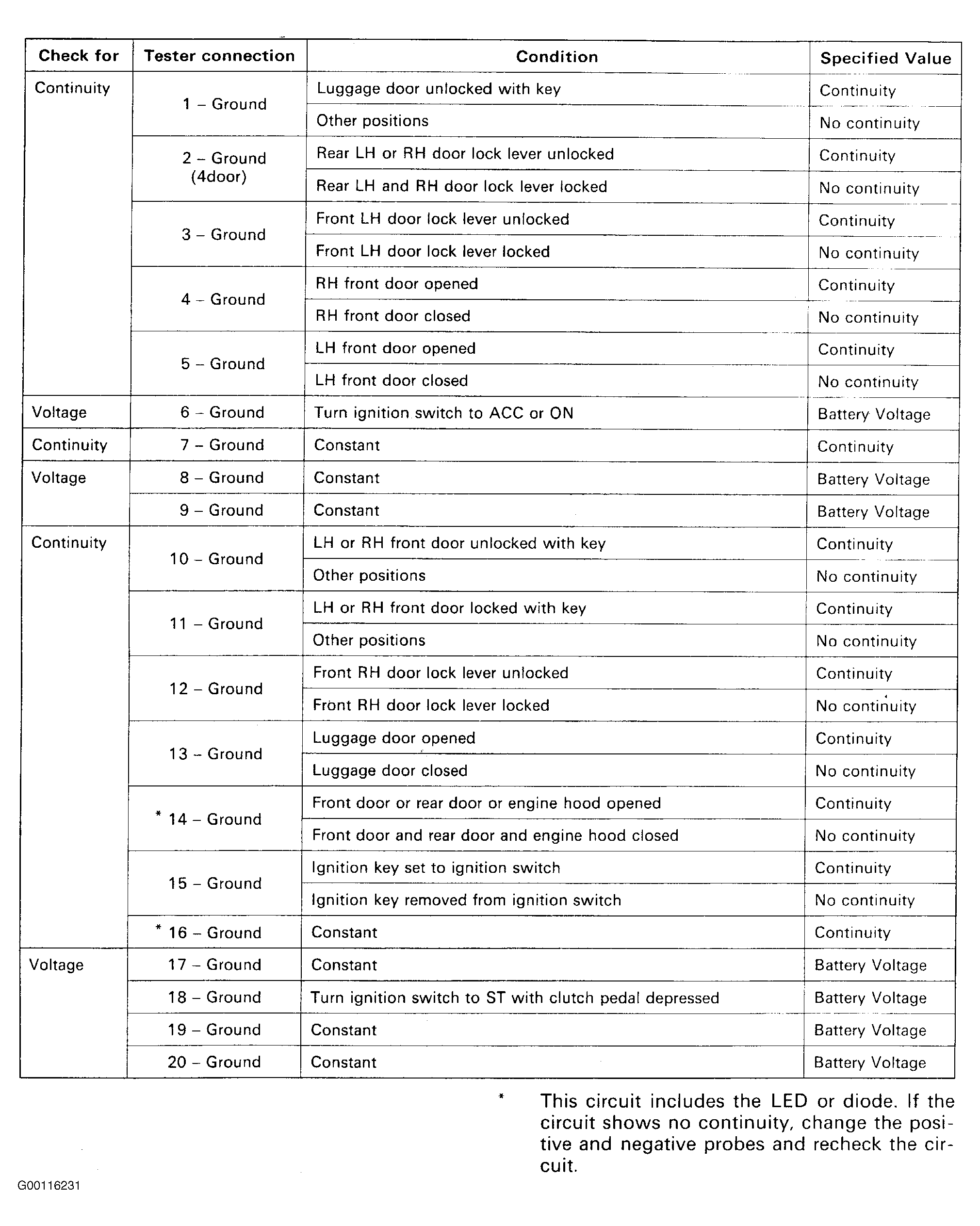

Fig 2: Testing Theft Deterrent Computer Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
