Neutral Safety Switch

Loosen neutral safety switch bolts. Position shift lever in "N". Align switch shaft groove to neutral basic line. See Fig 1. Tighten adjusting bolt.

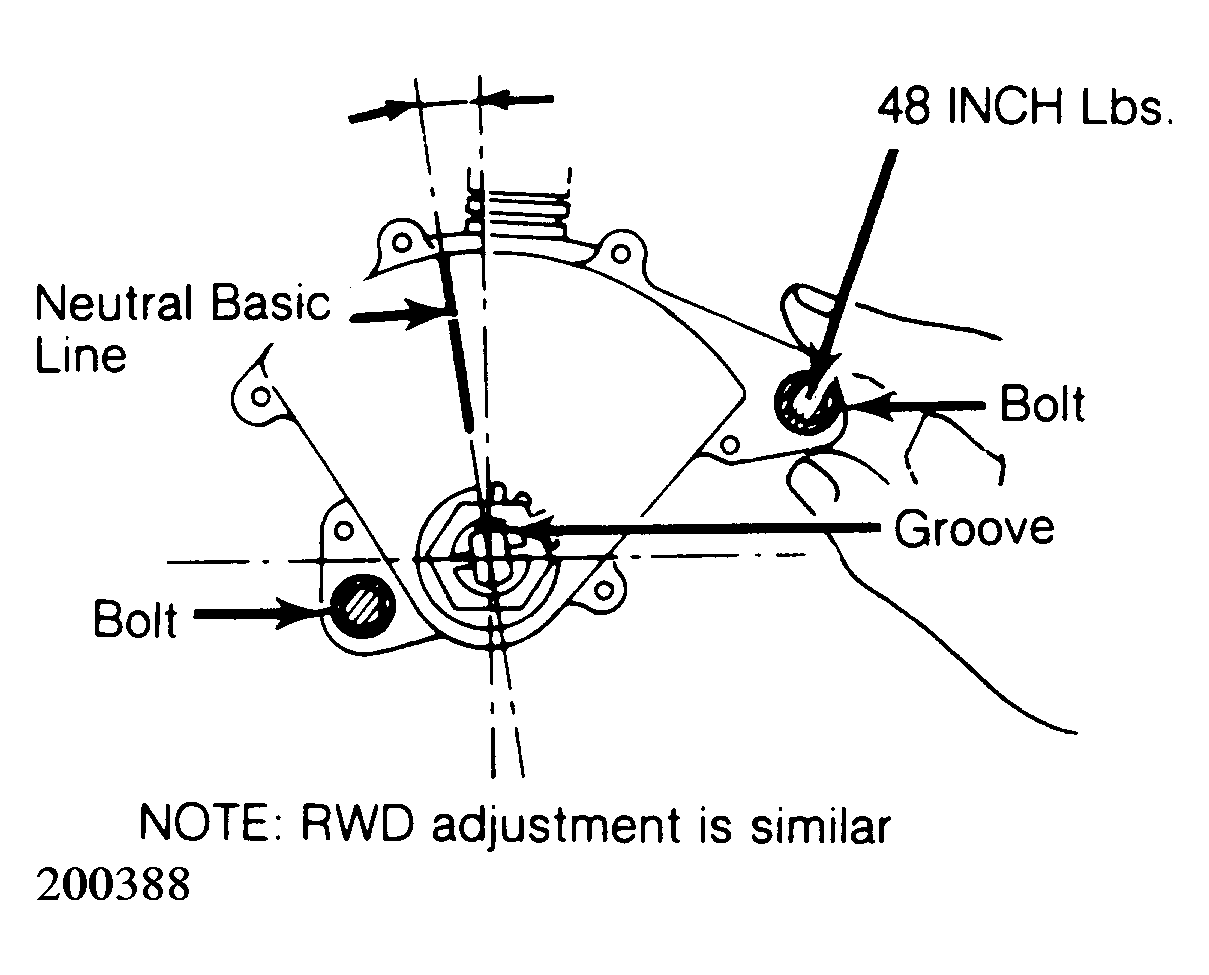

Fig 1: Adjusting FWD Neutral Safety Switch (RWD Adjustment Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
