Diagnostic Circuit Check

CAUTION: Perform all voltage measurements with ECU harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

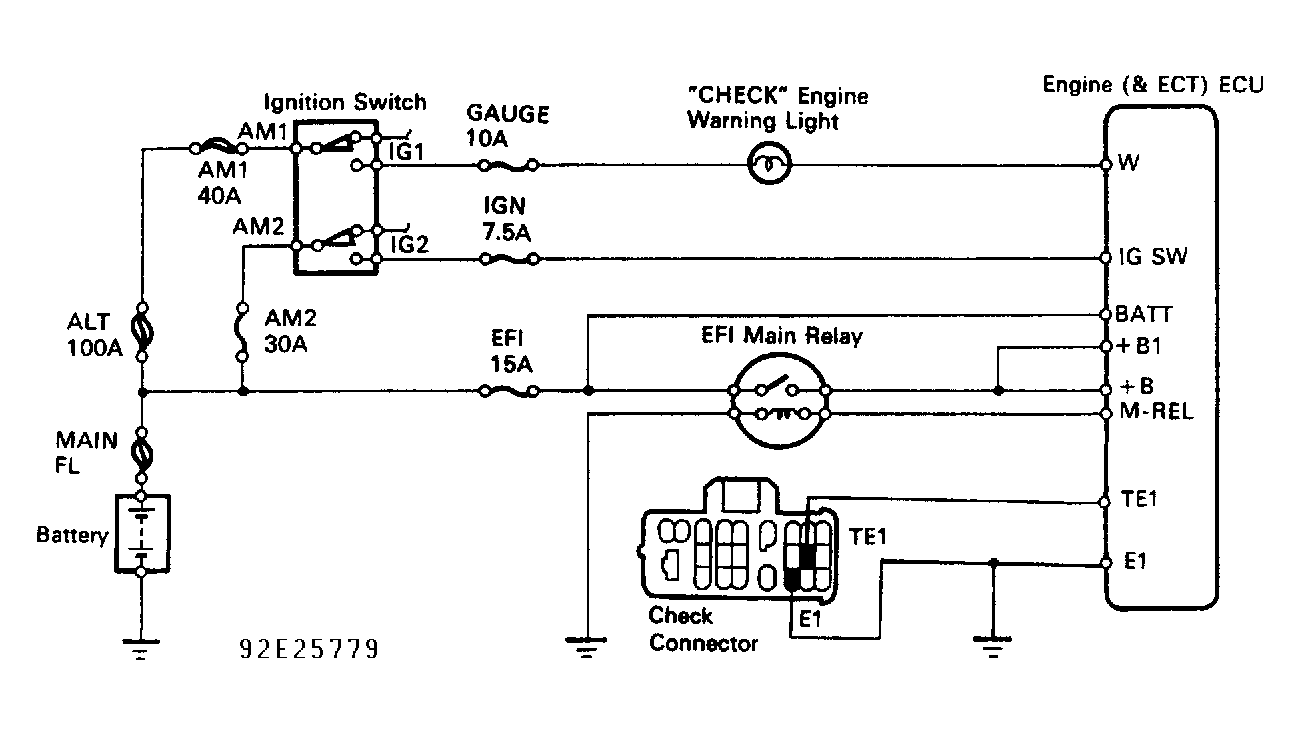

Fig 1: Diagnostic Circuit Check Schematic (5S-FE 4-Cylinder)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

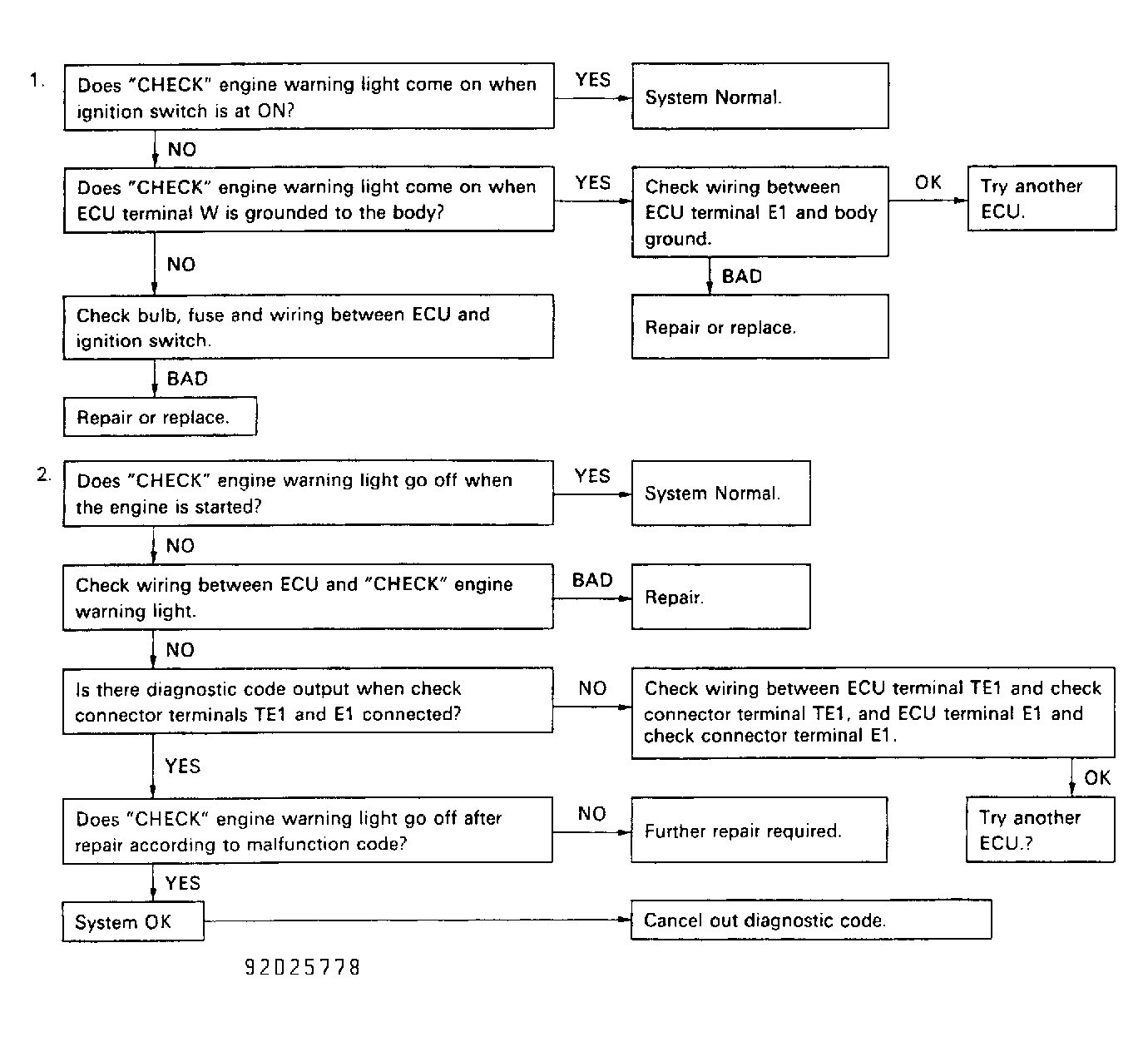

Fig 2: Diagnostic Circuit Check Flow Chart

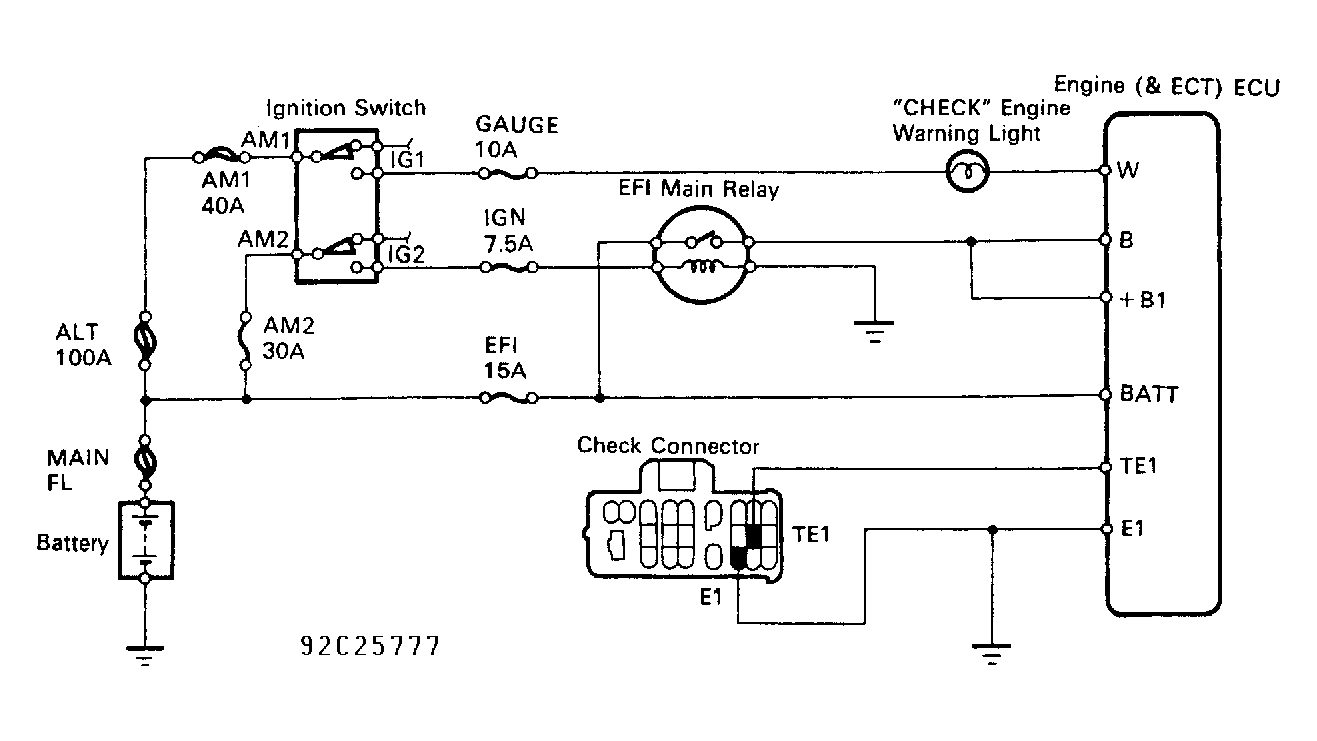

Fig 3: Diagnostic Circuit Check Schematic (3VZ-FE V6)
