System Tests

You will find the cause of trouble more easily, by properly using the table shown in Fig 1. In this table, the numbers indicate the order of priority of the causes of trouble Check each part in the order shown. If necessary, replace the effected part.

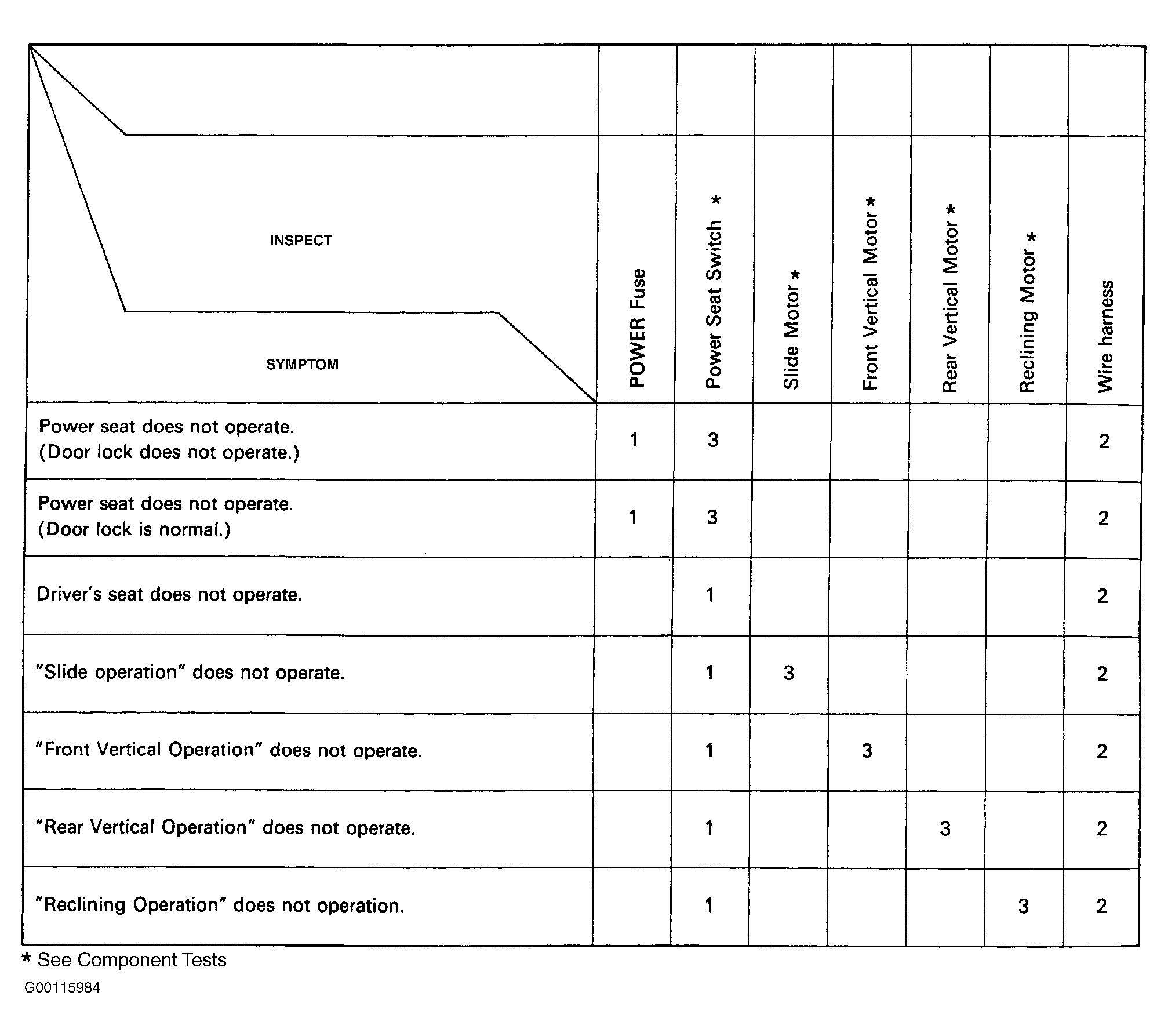

Fig 1: Symptom Diagnostic Table
G00115984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
