Test No. 14 - Check Engine Light Circuit

TEST NO. 14-CHECK ENGINE LIGHT CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
W-E1	No Voltage	No Trouble (Check Engine Warning Light OFF) and Engine Running	10-14V

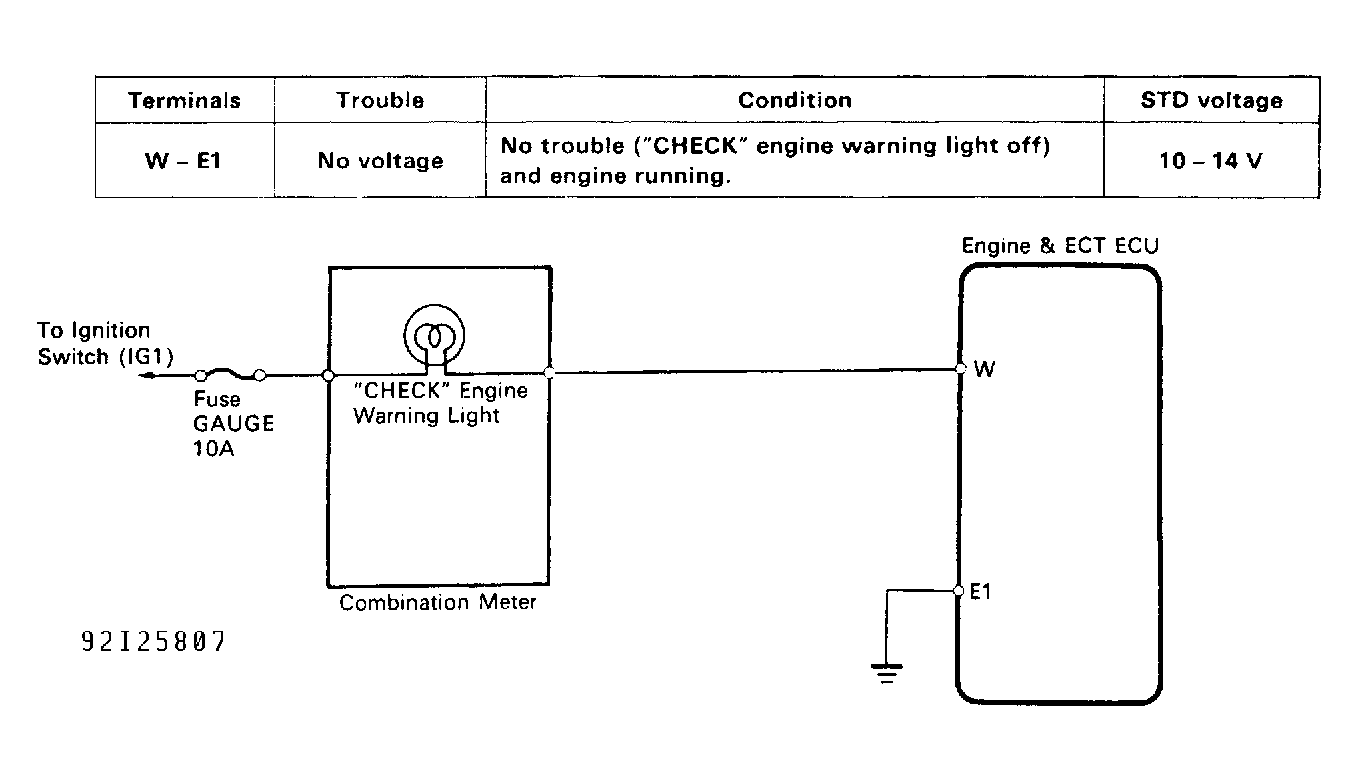

Fig 1: Test No. 14 Schematic Check Engine Light Circuit

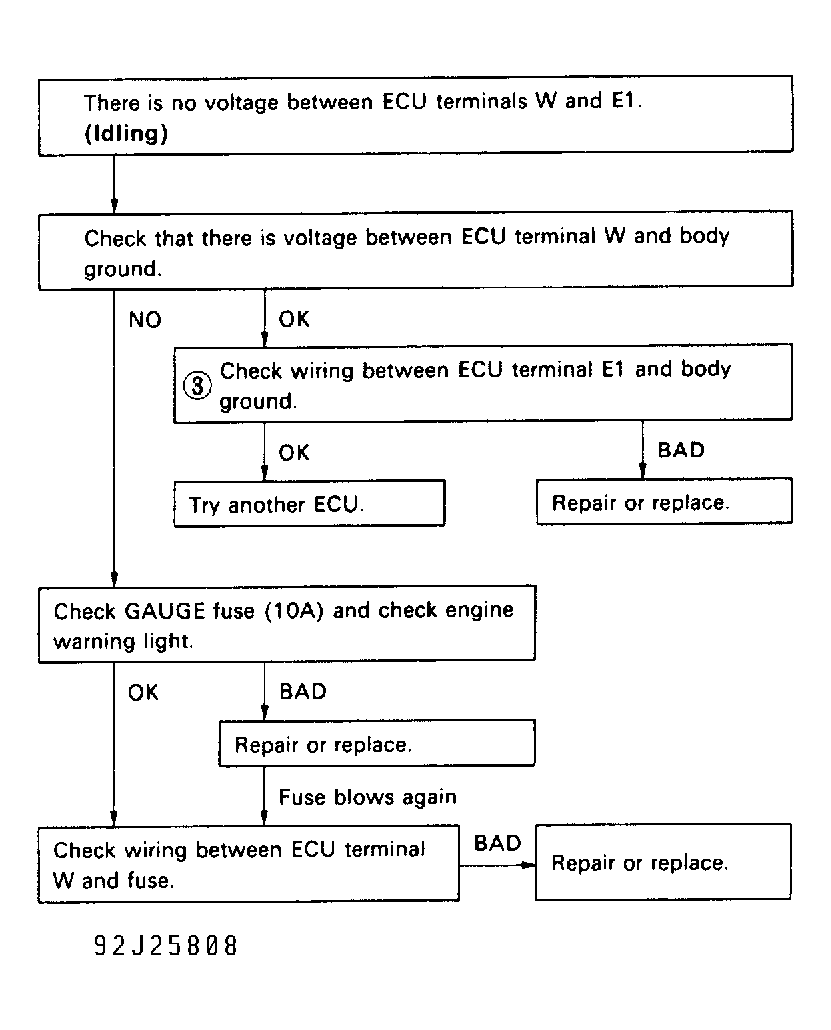

Fig 2: Test No. 14 Flow Chart Check Engine Light Circuit
