Ecu Terminal Identification

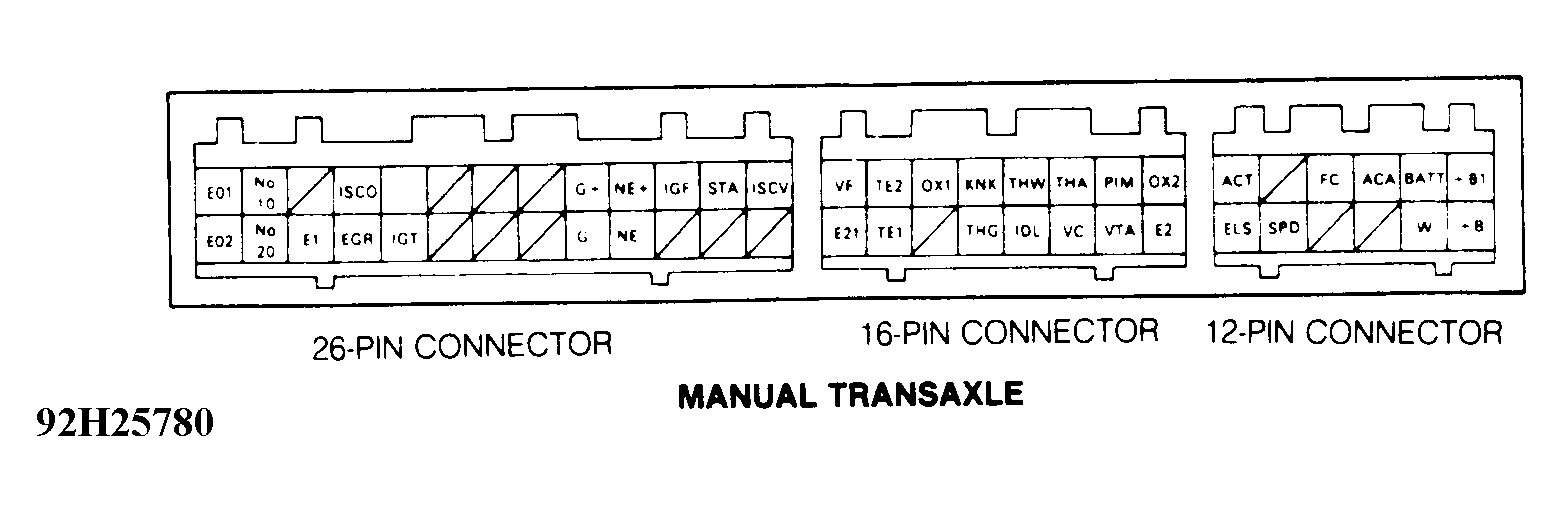

Fig 1: ECU Connector Terminal Identification (5S-FE With M/TX)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

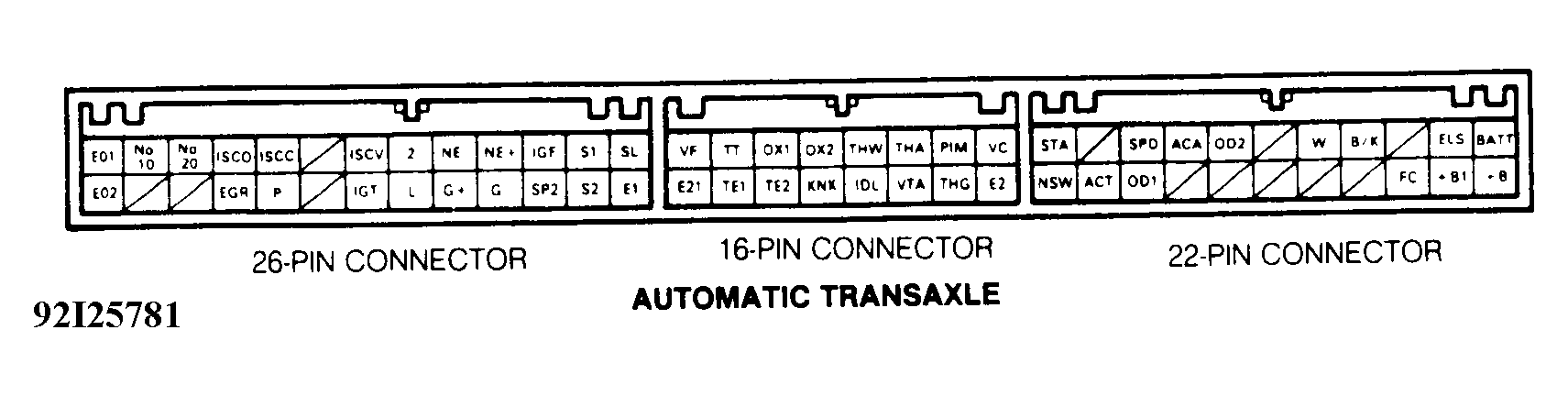

Fig 2: ECU Connector Terminal Identification (5S-FE With A/TX)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

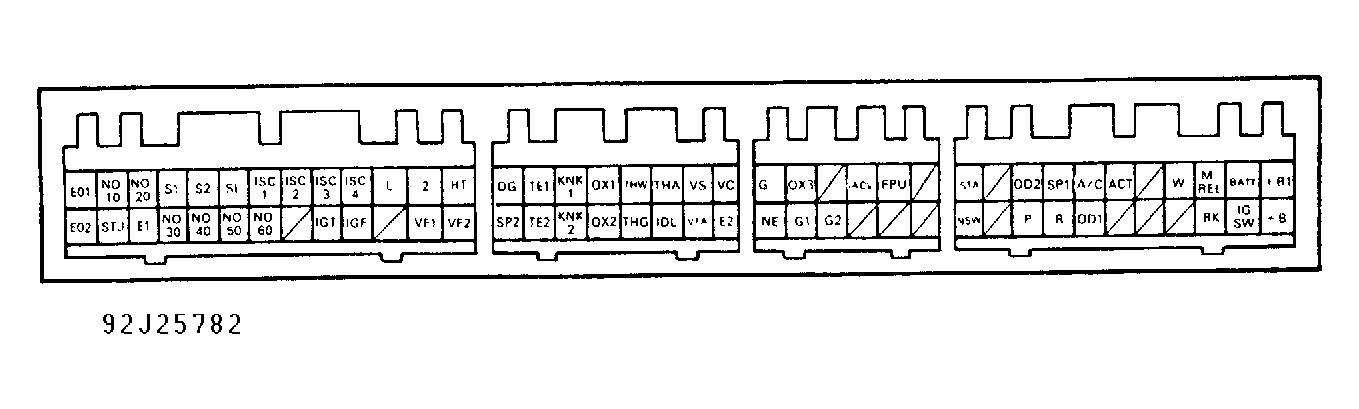

Fig 3: ECU Connector Terminal Identification (3VZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
