Component Locations

For component location, refer to illustration. See Fig 1 and Fig 2 .

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

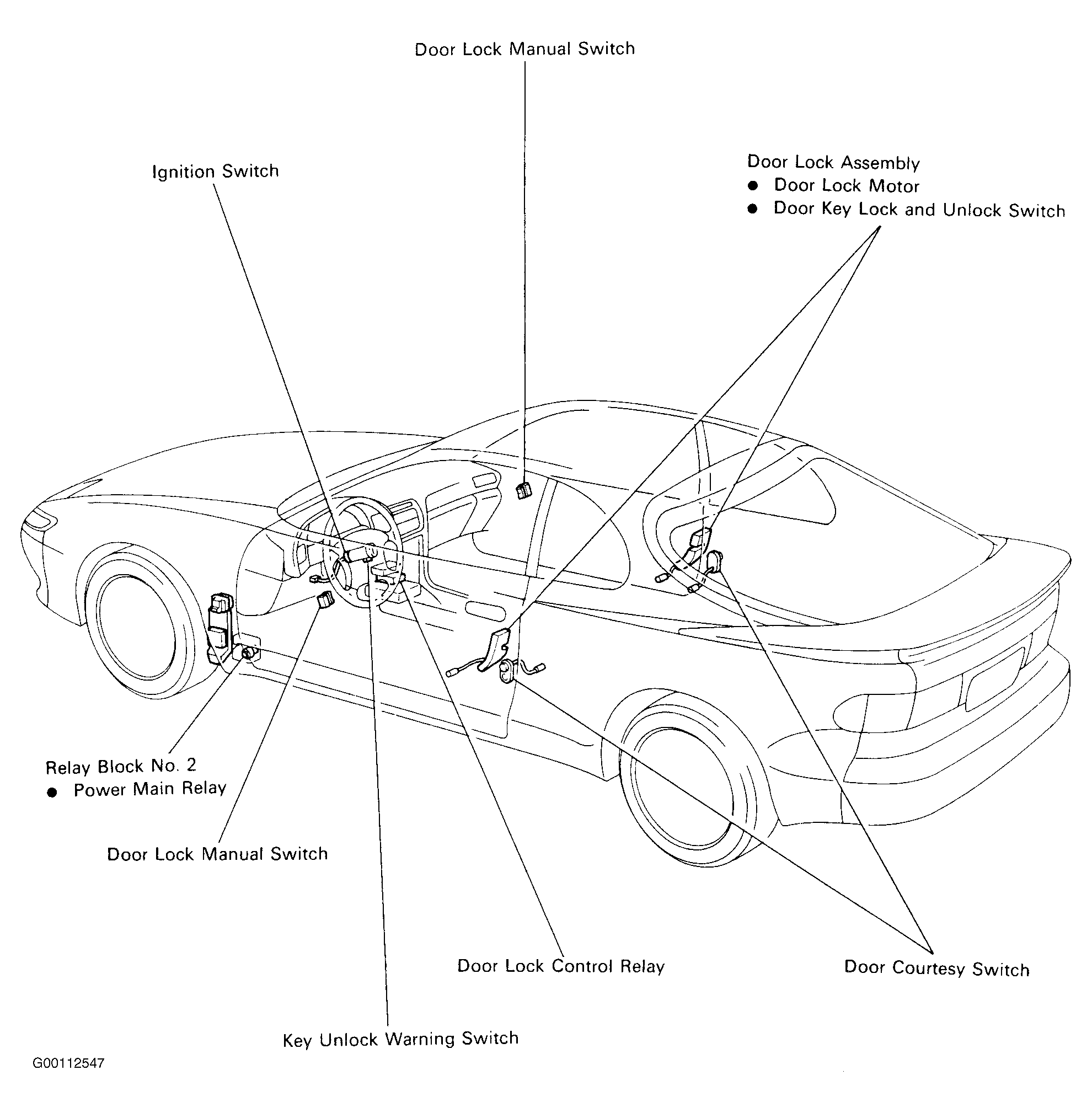

Fig 2: Locating Power Door Lock Components
