Wiring Diagrams

For wiring diagram and connector identification, see Fig 1.

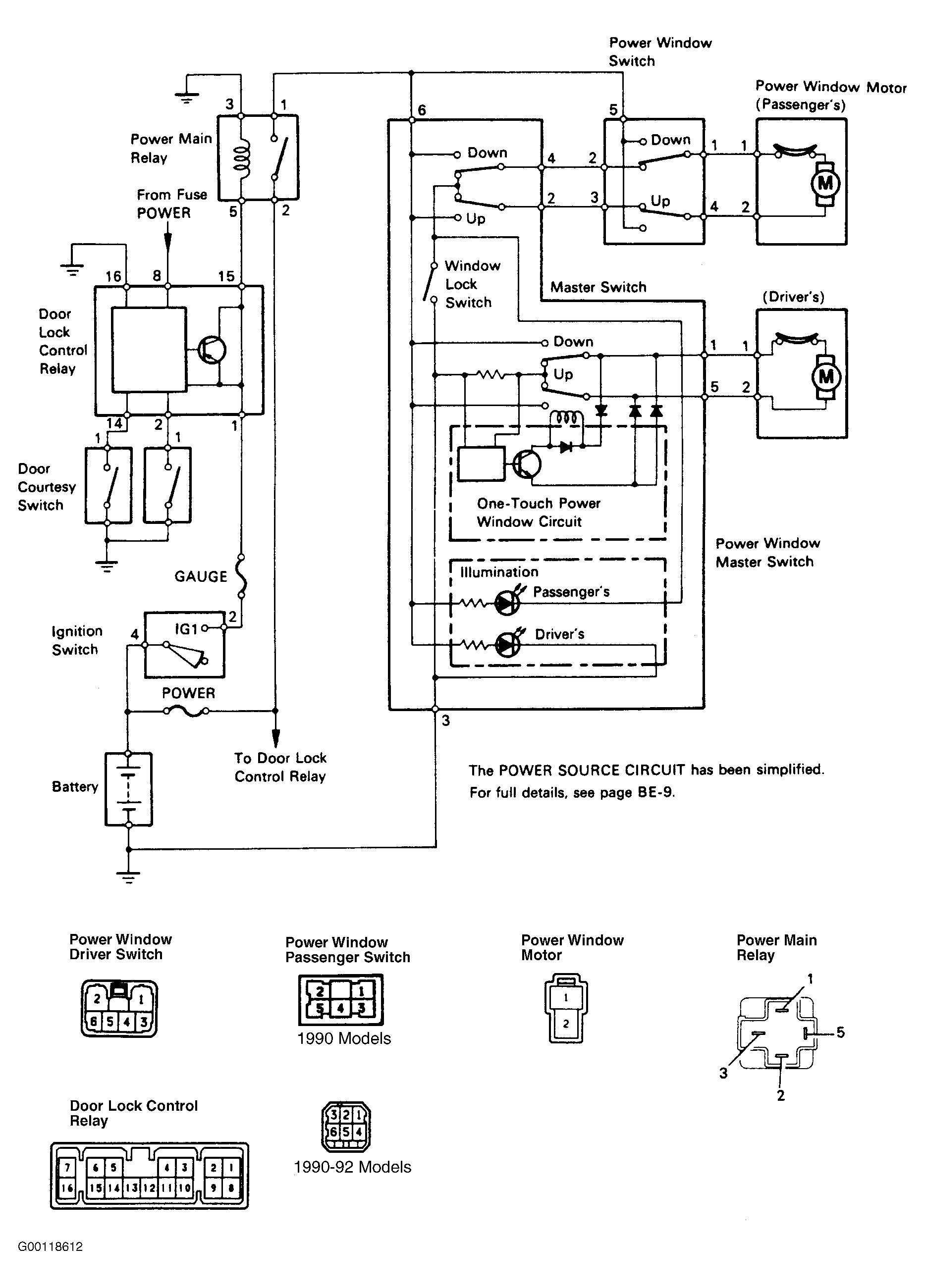

Fig 1: Power Window Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window Wiring Diagram (1990-92)
