Code 31/Test No. 7 - Vacuum Sensor Signal

CODE 31/TEST NO. 7-VACUUM SENSOR SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
PIM-E2	No Voltage	Ignition Switch ON	3.3-3.9V
VCC-E2	No Voltage	Ignition Switch ON	4.5-5.5V

Fig 1: Code 31/Test No. 7 Schematic Vacuum Sensor Signal

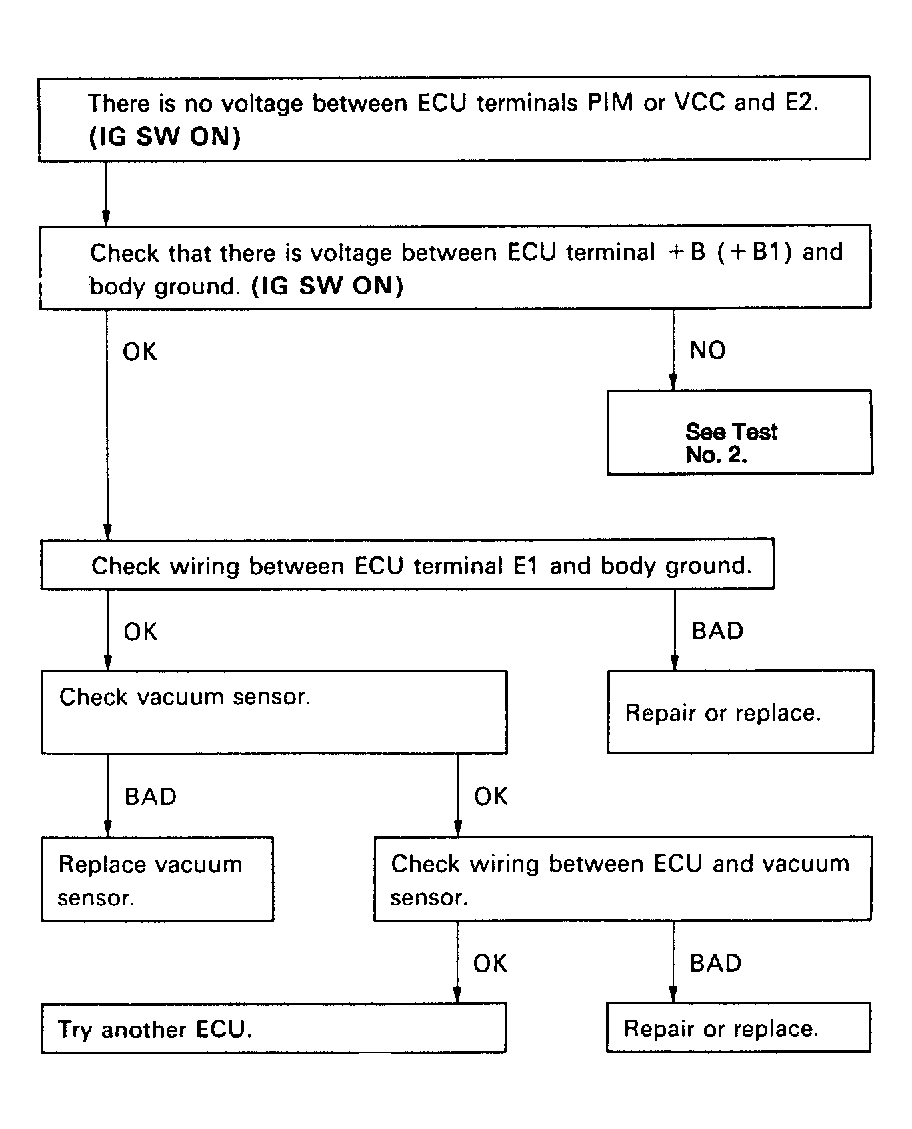

Fig 2: Code 31/Test No. 7 Flow Chart Vacuum Sensor Signal
