Code 71/Test No. 11 - EGR System Malfunction

Fig 1: Code 71/Test No. 11 Schematic EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

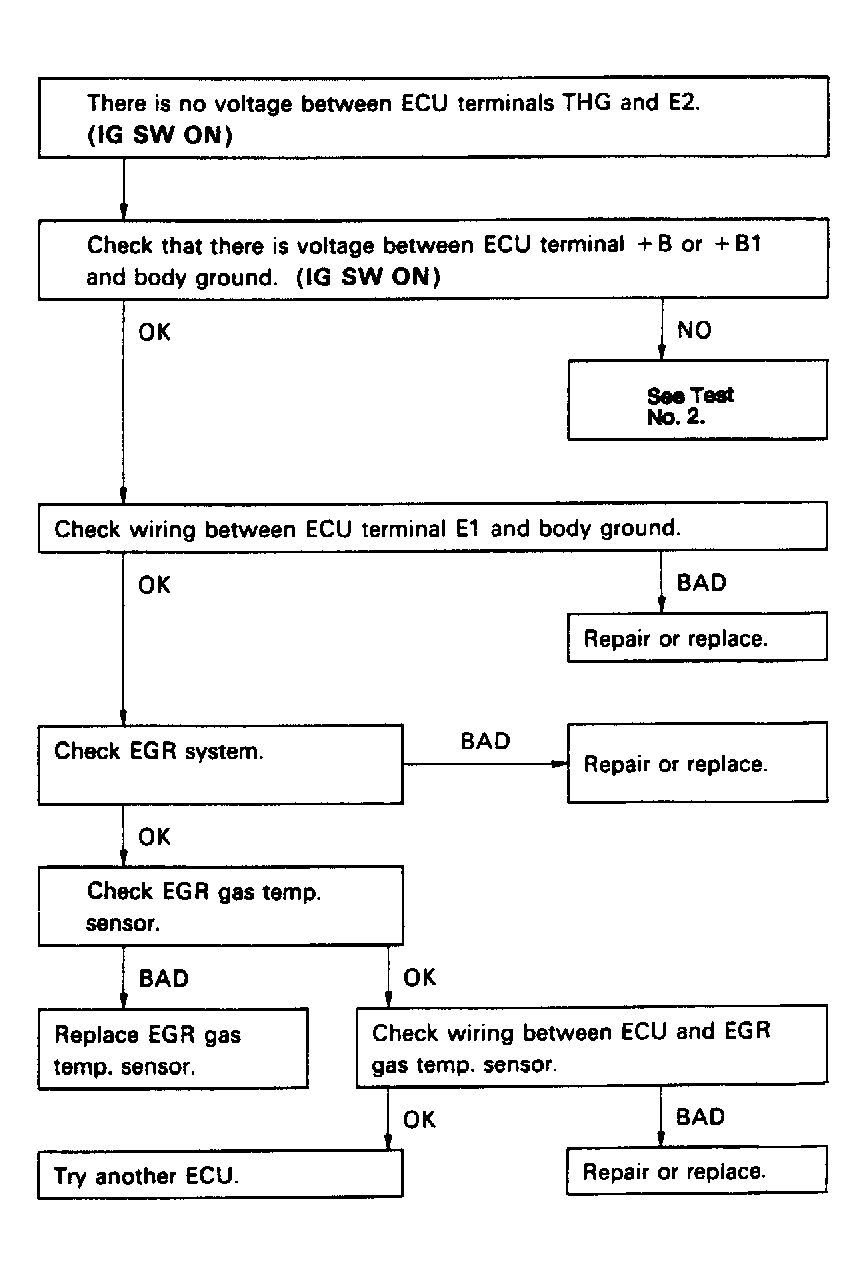

Fig 2: Code 71/Test No. 11 Flow Chart EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
