Test No. 1 - Ecu Power Source

TEST NO.1-ECU POWER SOURCE TROUBLE

Terminal	Trouble	Condition	STD Voltage
BATT-E1	No Voltage	---	10-14V

Fig 1: Test No. 1 Schematic ECU Power Source

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

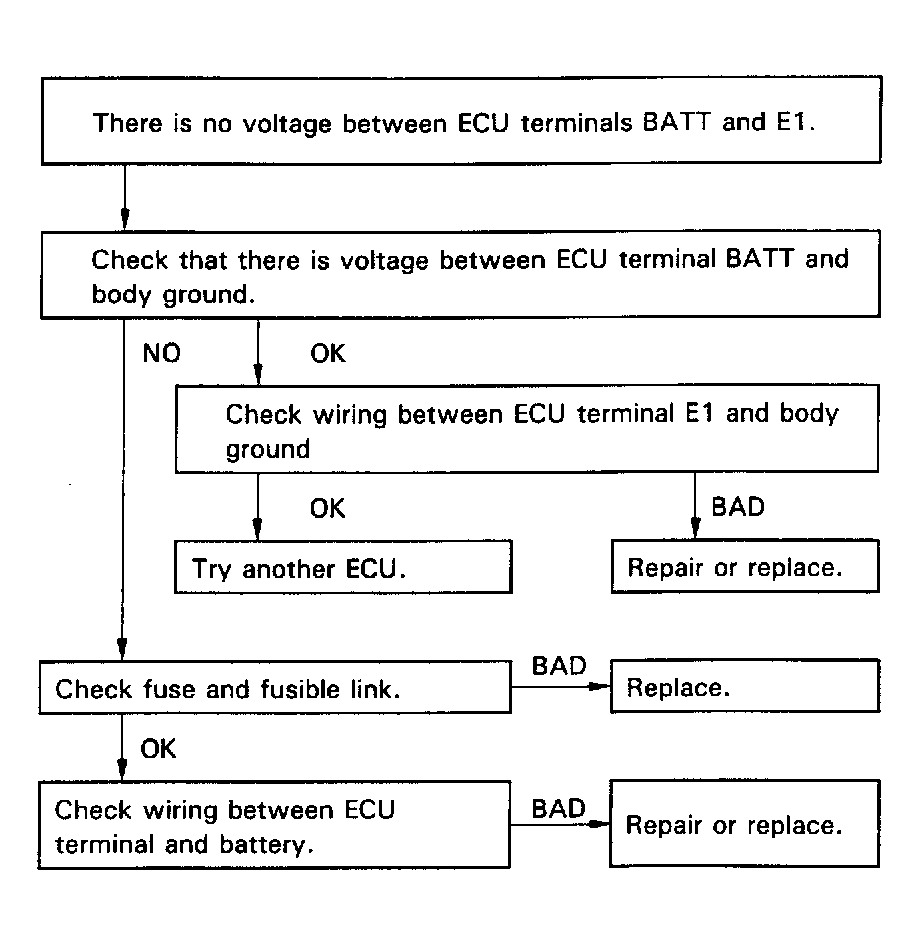

Fig 2: Test No. 1 Flow Chart ECU Power Source
