Pattern Select Switch
CAUTION:
Pattern select switch contains internal diodes. Ensure proper terminals are checked to prevent damage to diodes.

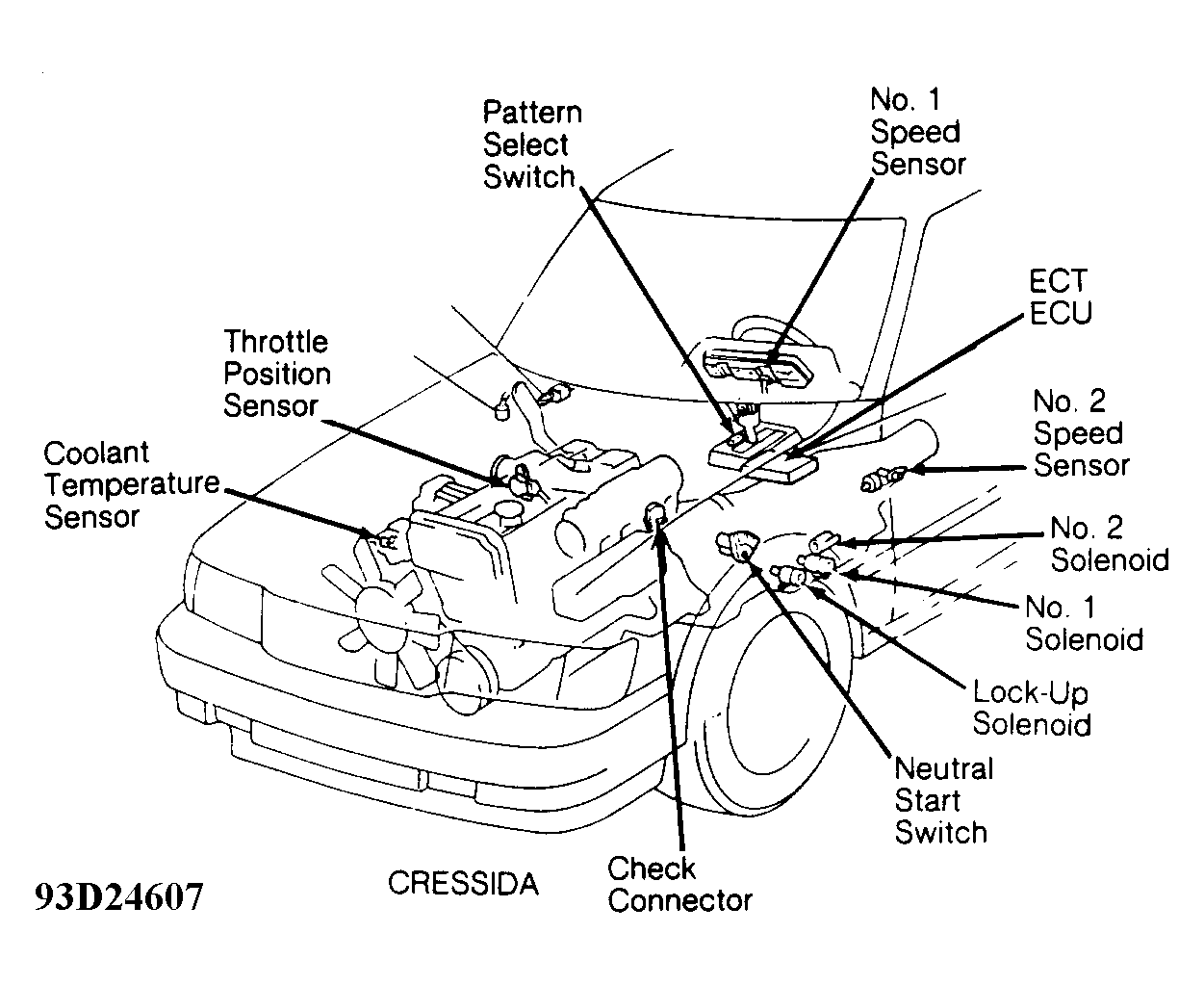

Disconnect the electrical connector from the pattern select switch. See Figure. Note terminal identification on the pattern select switch. See Fig 1. Using an ohmmeter, ensure continuity exists between specified terminals in accordance with specified switch positions. See the PATTERN SELECT SWITCH CONTINUITY table. Replace switch if defective.
PATTERN SELECT SWITCH CONTINUITY
| Switch Position | Terminals | |
|---|---|---|
| Cressida & Supra | ||
| NORMAL (Released Position) | 2 & 4 | |
| POWER (Depressed Position) | 2 & 3 | |
| Pickup (With Floor Shift) | ||
| POWER (Depressed Position) | 4 & 6 | |
| Pickup (With Column Shift) | ||
| POWER (Depressed Position) | 2 & 3 | |
| 4Runner | ||
| POWER (Depressed Position) | 4 & 6 | |
