Component Locations

COMPONENT LOCATIONS

Component	Location
Seat Heater Ground D	Under Junction Block No. 1 set bolt, behind left kick panel.
Seat Heater Ground E	Behind center of instrument panel, left of center console.
Seat Heater Ground H	Left rear pillar, on level with bottom or rear window.

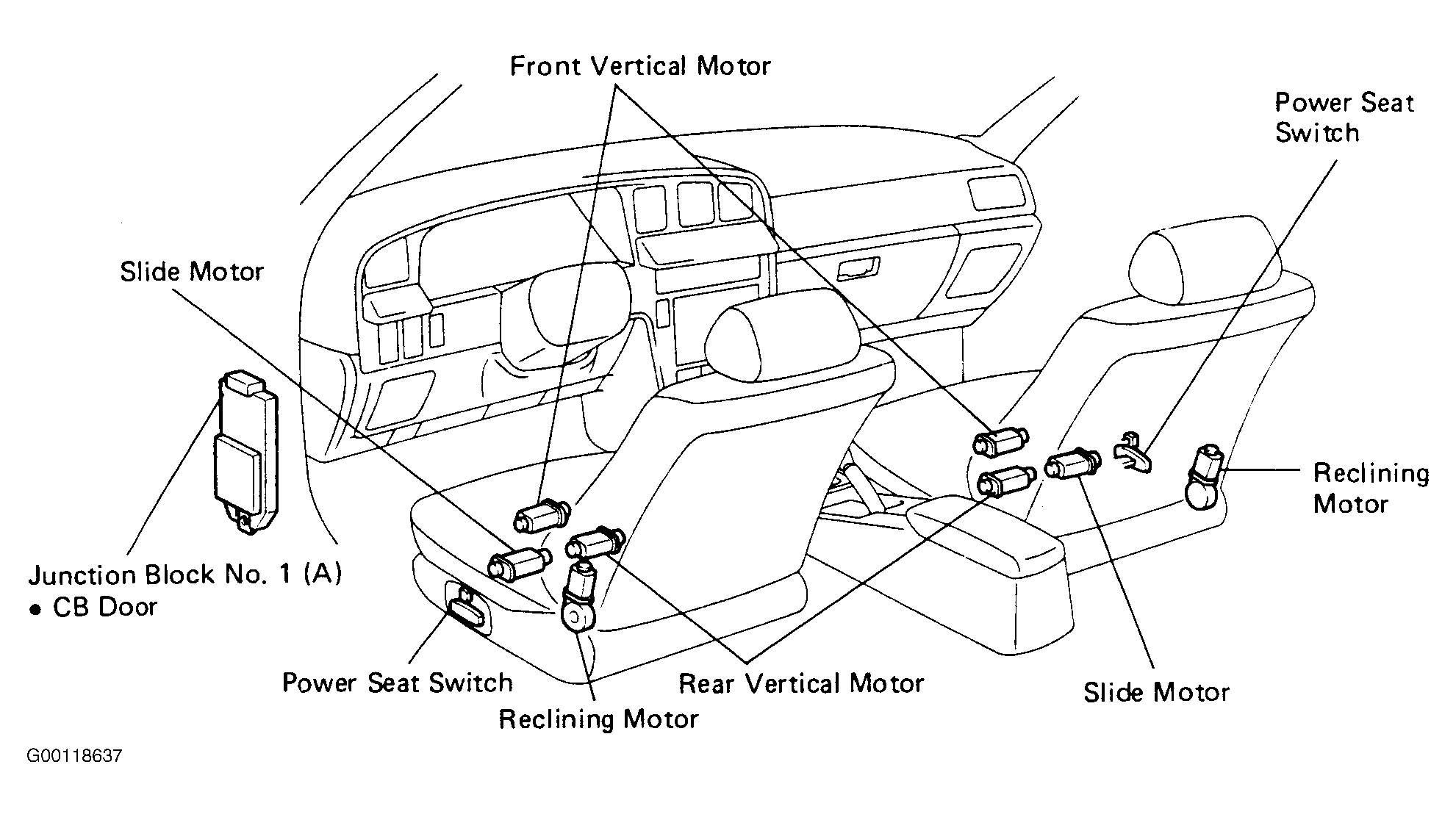

Fig 1: Locating Power Seat Components

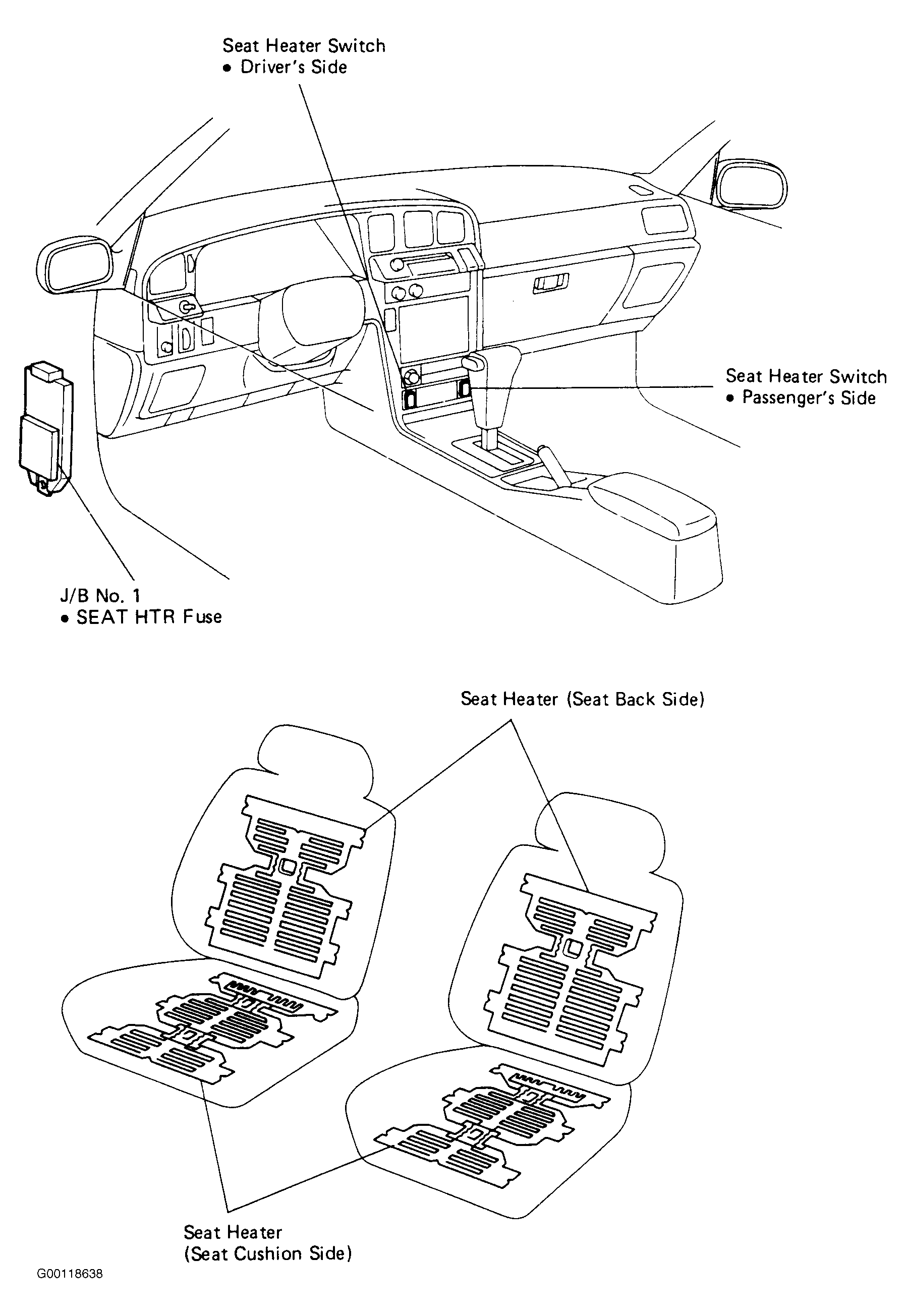

Fig 2: Locating Seat Heater System Components (1991-92)
