Code 24/Test No. 5 - Intake Air Temperature Sensor Signal

CODE 24/TEST NO. 5-IAT SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
THA - E2	No Voltage	Ignition Switch ON Int. Air Temp. 20°C (68°F)	1 - 3V

Fig 1: Code 24/Test No. 5 Schematic Intake Air Temperature Sensor Signal

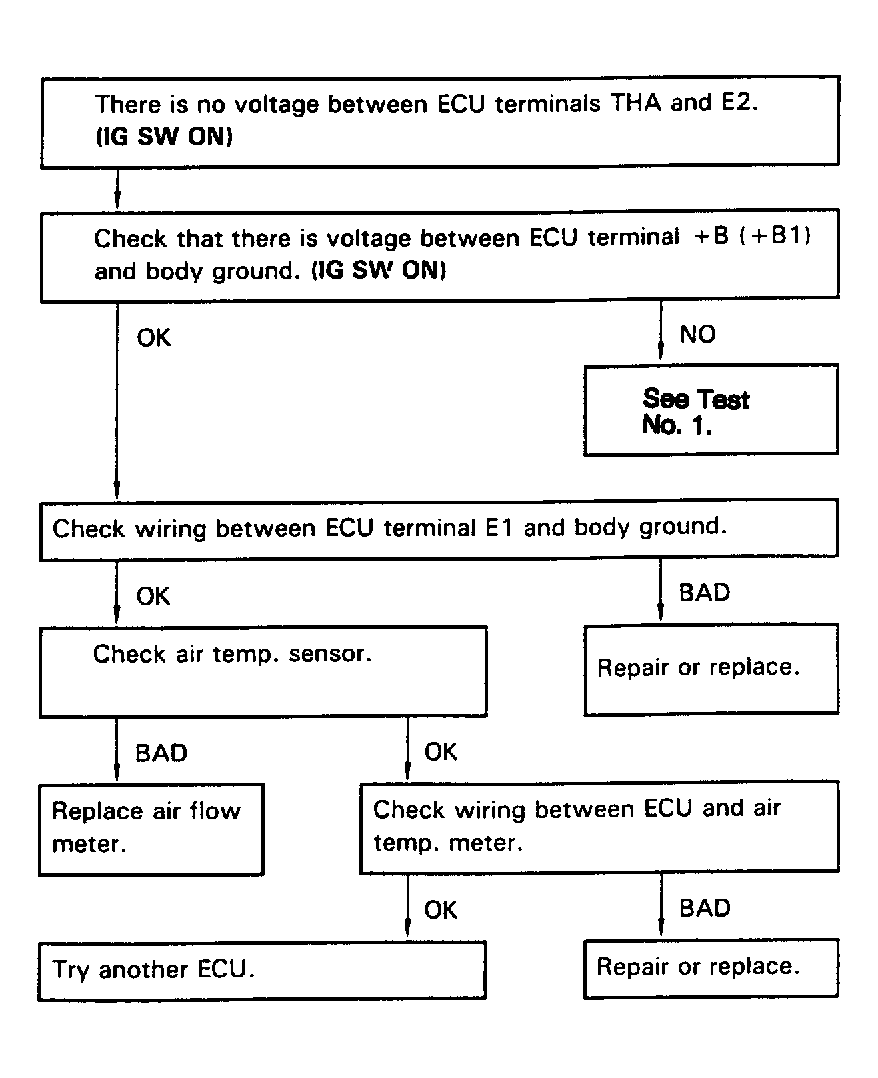

Fig 2: Code 24/Test No. 5 Flow Chart Intake Air Temperature Sensor Signal
