Relay Circuit

Disconnect the connector from the relay. Inspect the connector on the wire harness side. See Fig 1 and Fig 2 . If circuit is not as specified, inspect the door lock signal.

Fig 1: Identifying Door Lock Control Relay Wire Harness Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

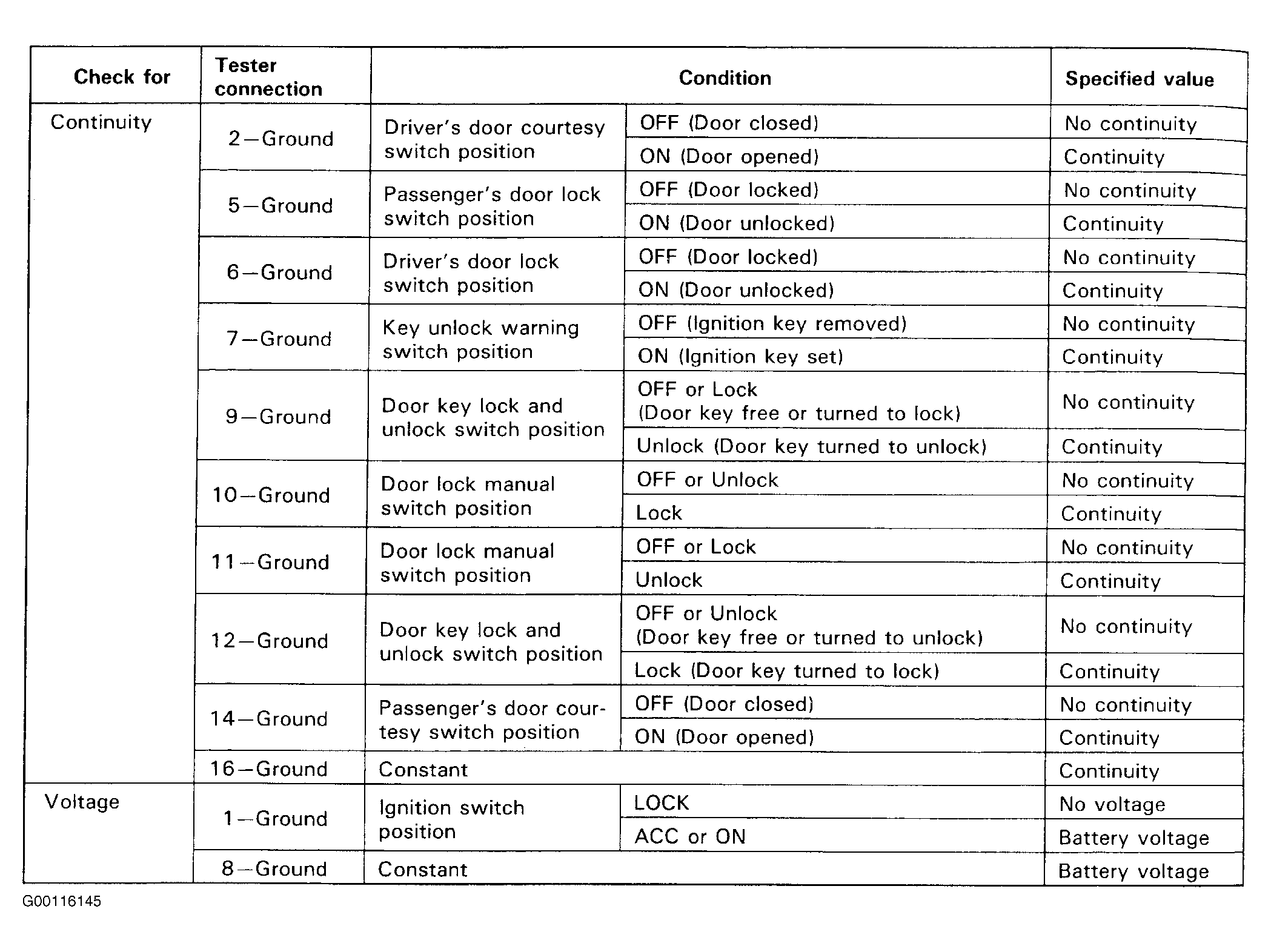

Fig 2: Testing Door Lock Control Relay Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
