Code 43/Test No. 8 - Starter Signal

CODE 43/TEST NO. 8-STARTER SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
STA-E1(E11)	No Voltage	Cranking	6-14V

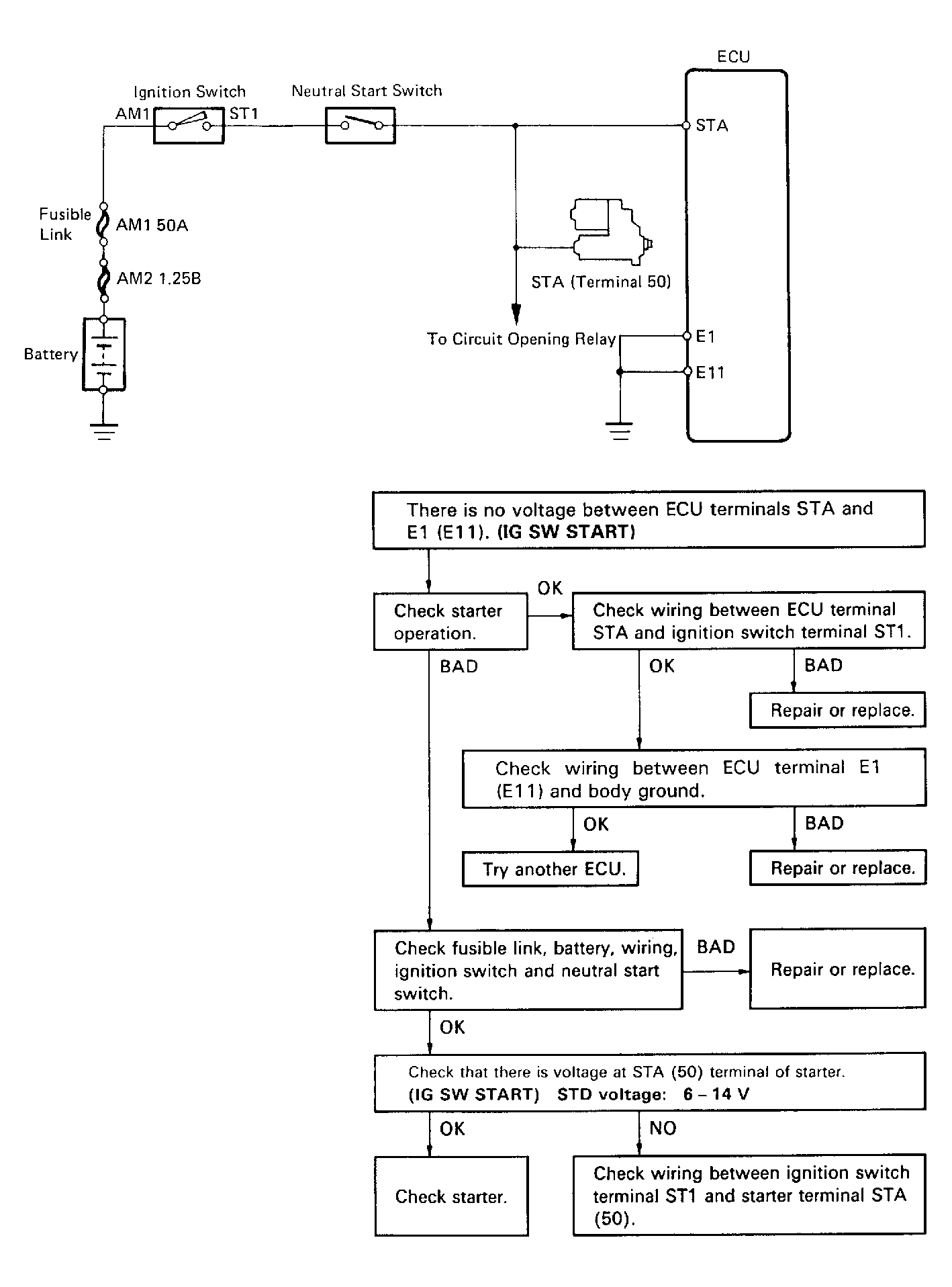

Fig 1: Code 43/Test No. 8 Schematic Starter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 43/Test No. 8 Component Diagram Starter Signal

Fig 3: Code 43/Test No. 8 Flow Chart Starter Signal
