Test No. 13 - Check Engine Light Circuit

TEST NO. 13-CHECK ENGINE LIGHT CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
W-E1(E11)	No Voltage	No Trouble (Check Engine Light OFF) and Engine Running	10- 14V

Fig 1: Test No. 13 Schematic Check Engine Light Circuit

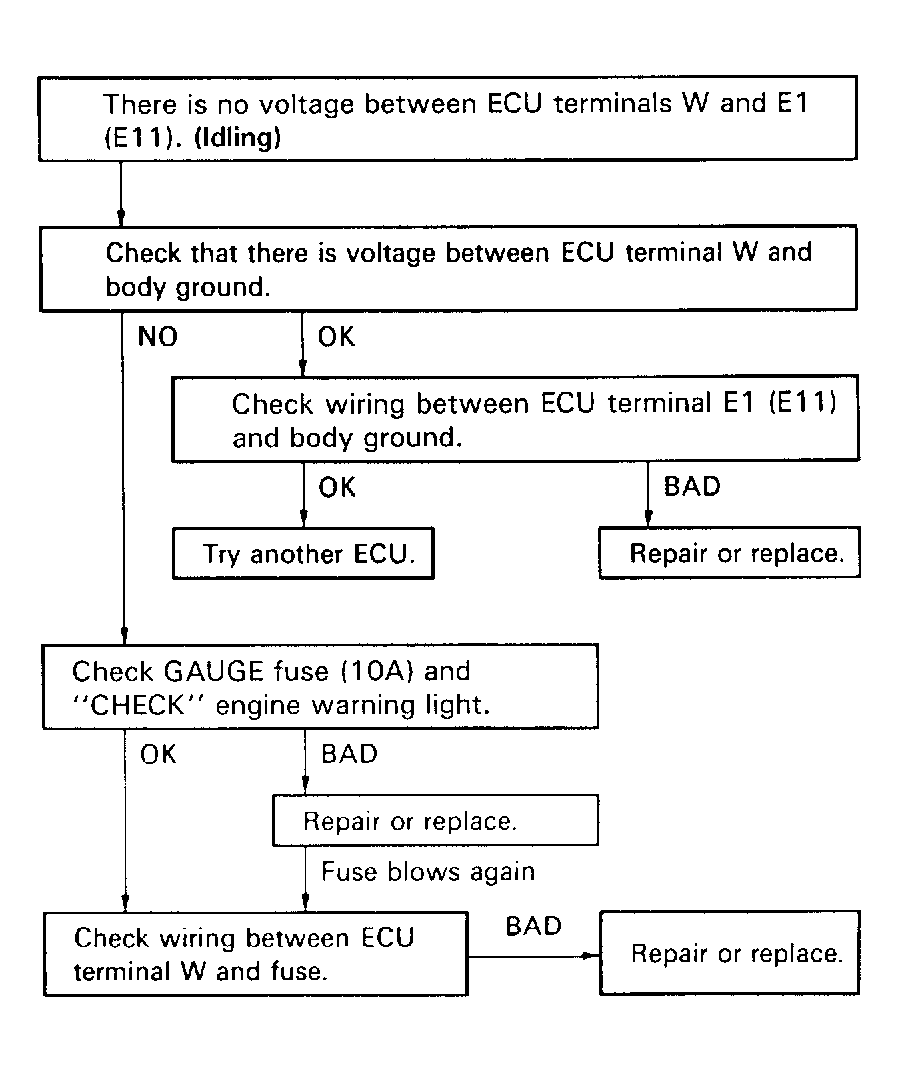

Fig 2: Test No. 13 Flow Chart Check Engine Light Circuit
