Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||

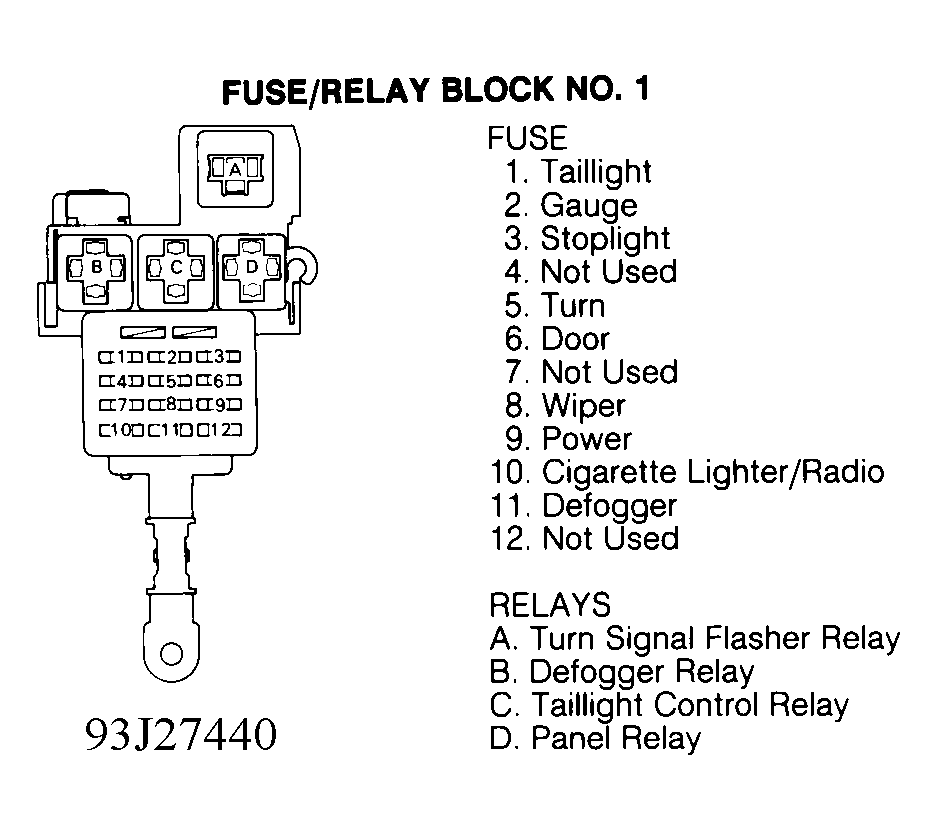

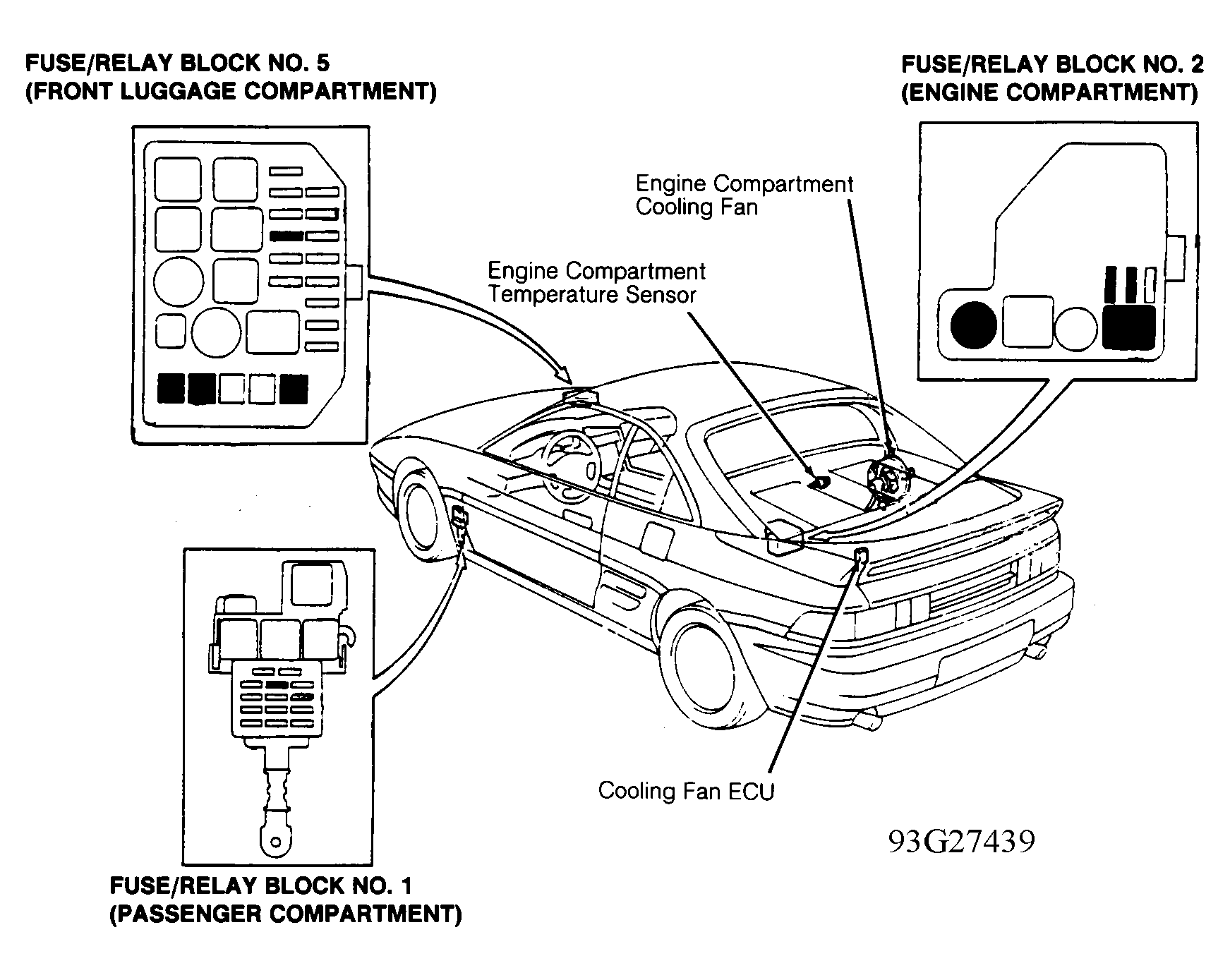

| No. 1 (Passenger Compartment) | Behind left kick panel. See Figure & Figure . | |

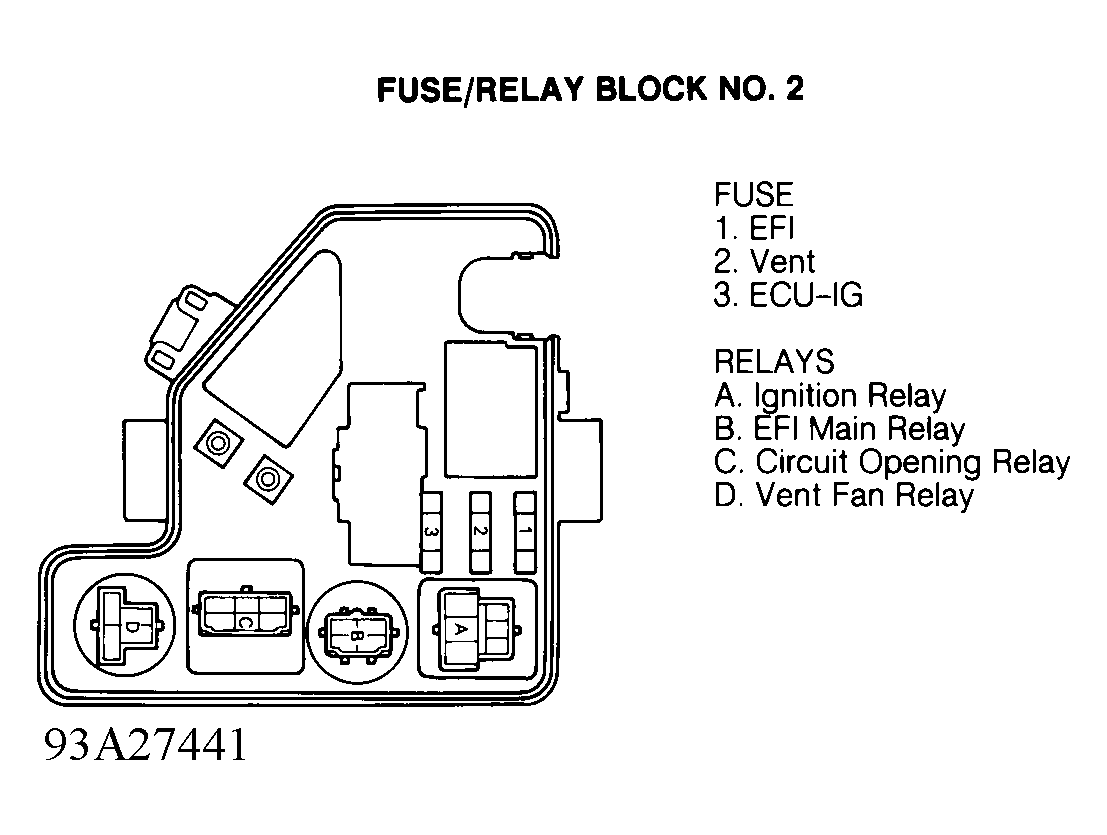

| No. 2 (Engine Compartment) | On left rear corner of engine compartment. See Figure & Figure . | |
| No. 5 | Front right side of luggage compartment. See Figure & Figure . | |
| Main Fusible Link (FL) | Near positive battery terminal. | |
