Diagnostic Trouble Code Definitions
For diagnostic trouble code definitions, refer to table. See
Fig 1
.

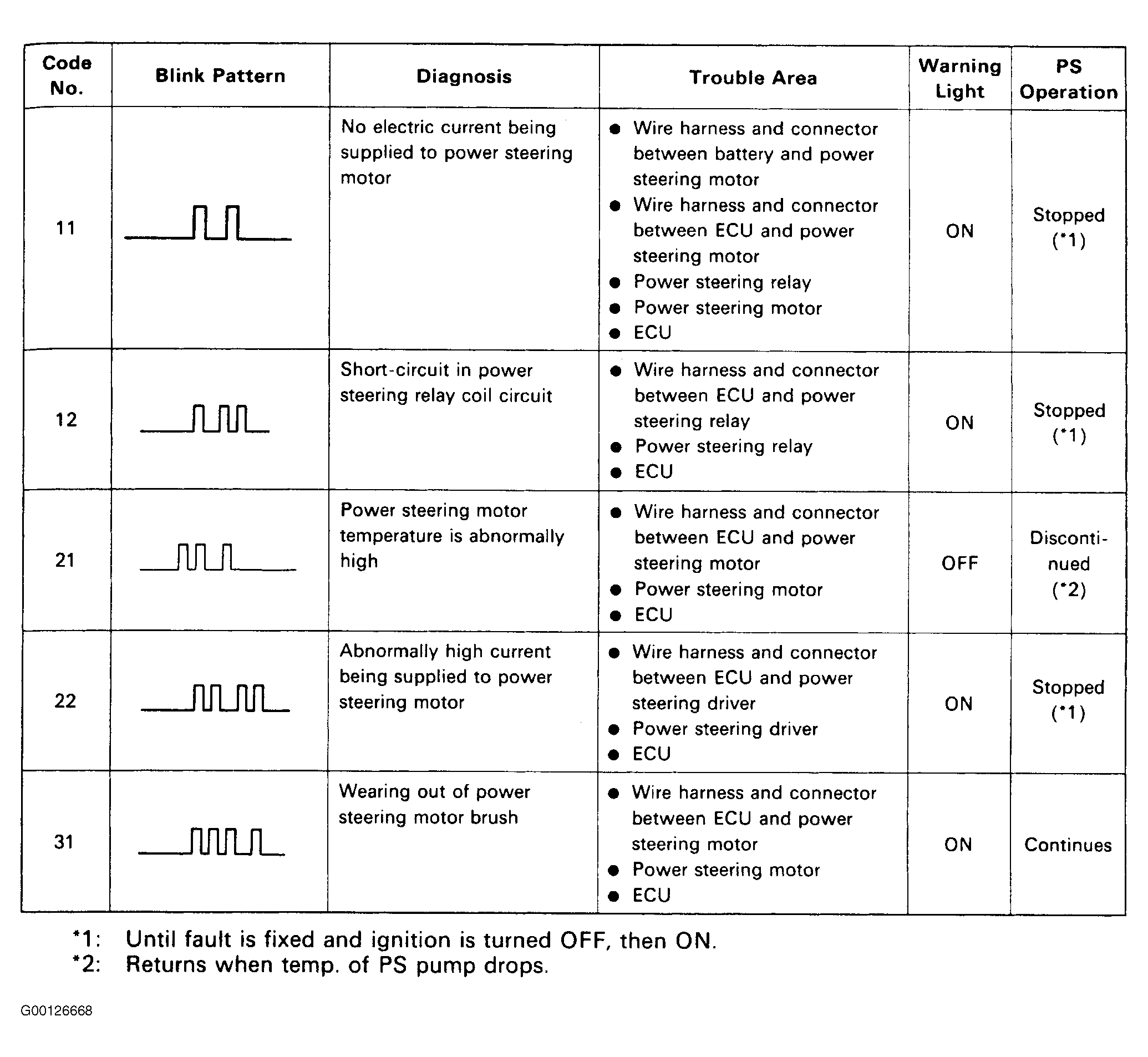

Fig 1: Diagnostic Trouble Code Definitions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
