Wiring Diagrams

NOTE: Body ground E is located behind left kick panel. D5 diode is located behind right side of instrument panel, to right of glove box.

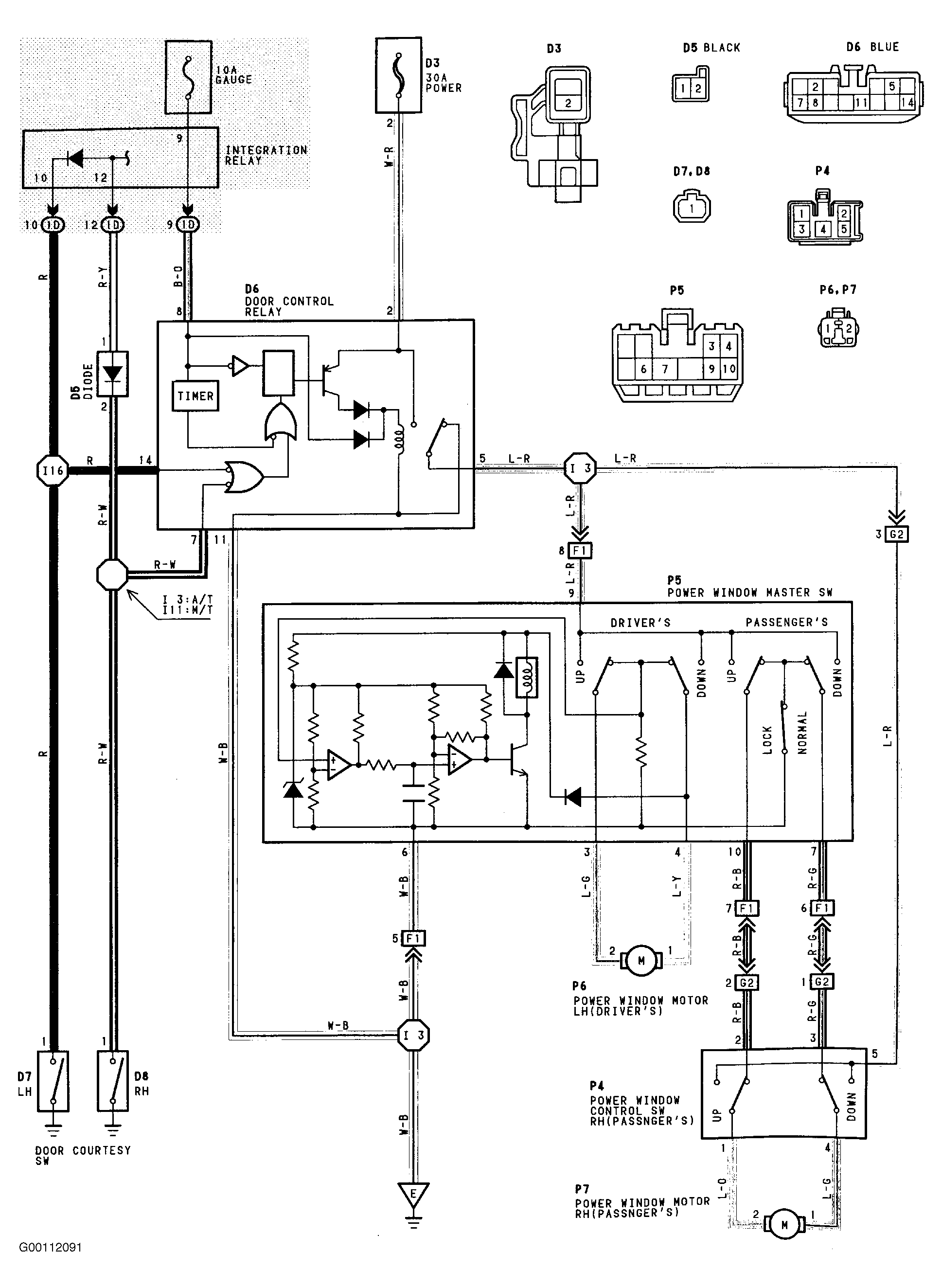

Fig 1: Power Window Wiring Diagram (1990-92 Pickup)
