Test No. 12 - Idle Speed Control Circuit

TEST NO. 12-IDLE SPEED CONTROL CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
ISC1-E1	No Voltage	Ignition Switch ON	8-14V
ISC2-E1	"	"	"

Fig 1: Test No. 12 Schematic Idle Speed Control Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Test No. 12 Component Diagram Idle Speed Control Circuit

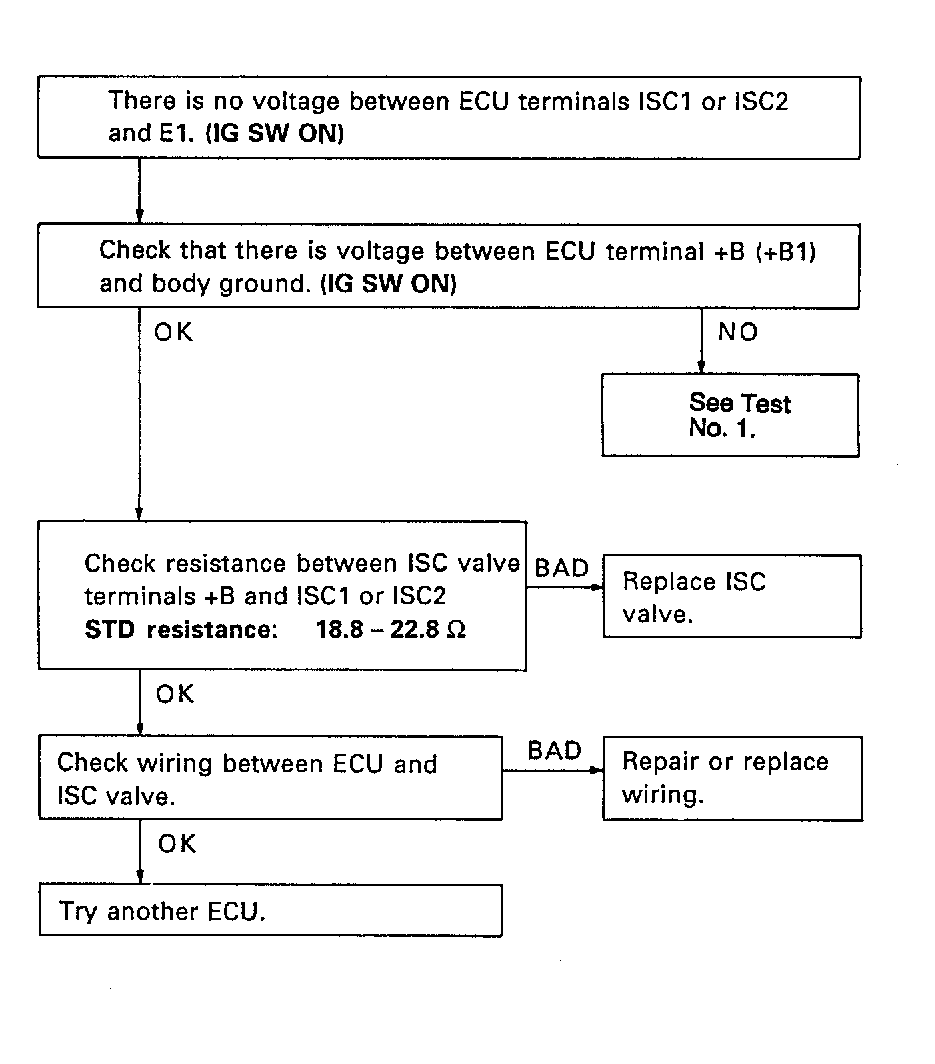

Fig 3: Test No. 12 Flow Chart Idle Speed Control Circuit
