Test No. 13 - Check Engine Light Circuit

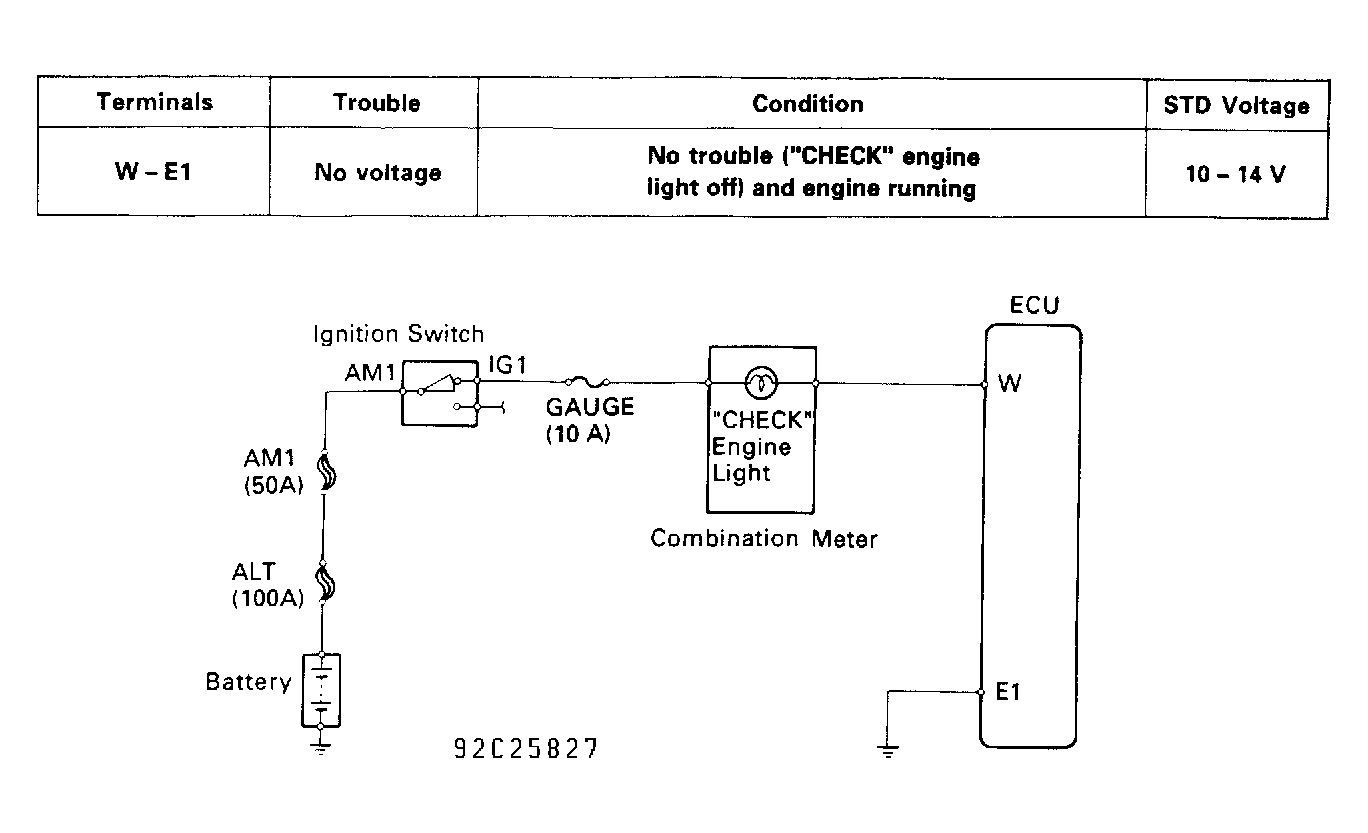

Fig 1: Test No. 13 Schematic Check Engine Light Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

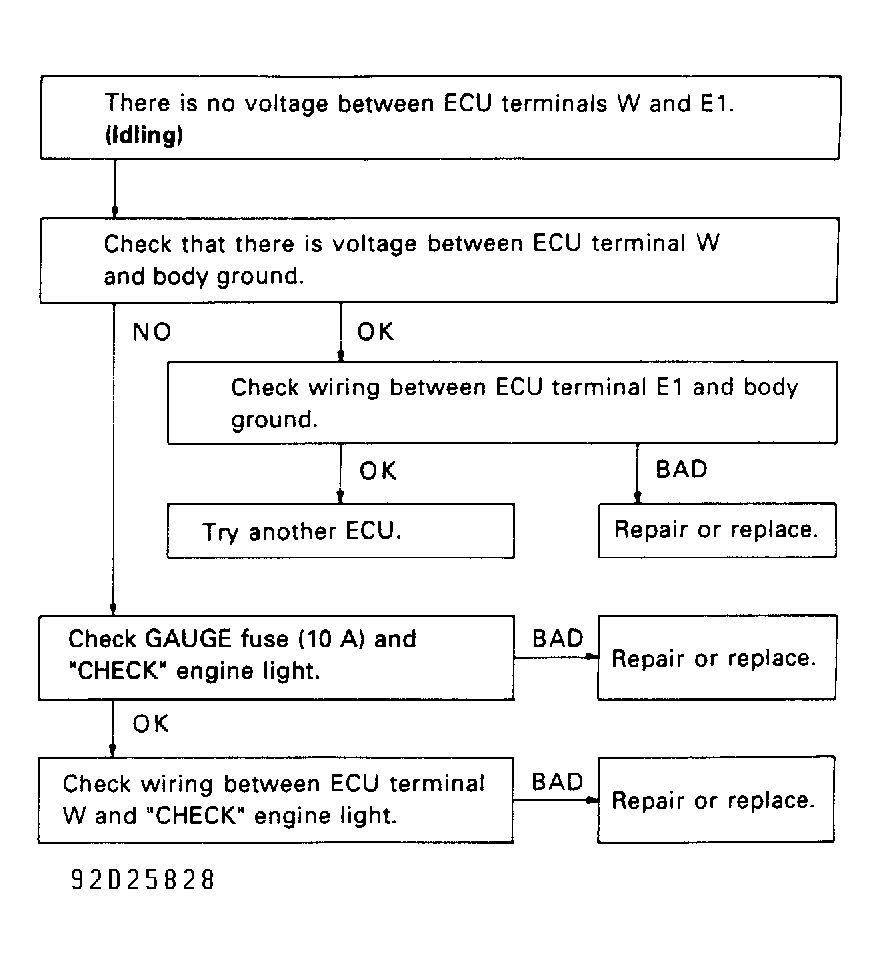

Fig 2: Test No. 13 Flow Chart Check Engine Light Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
