Supra 7M-GE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Diagnostic Code Charts
›
Diagnostic Circuit Check
Diagnostic Circuit Check
Fig 1: Diagnostic Circuit Check Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

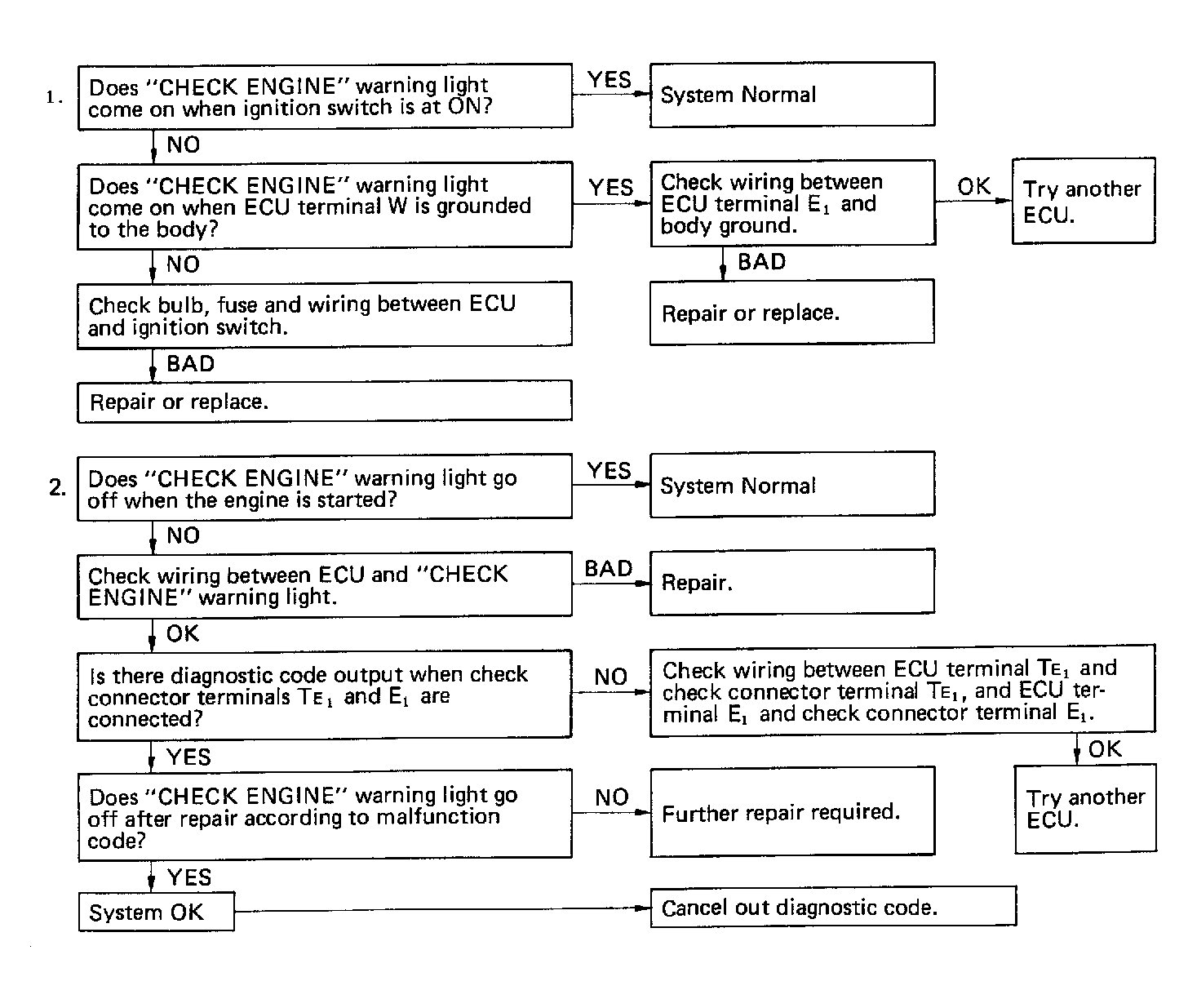

Fig 2: Diagnostic Circuit Check Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
