All Others

Air temperature sensor is an integral part of airflow meter. Check resistance at terminals E2 and THA of airflow meter. See AIRFLOW METER RESISTANCE SPECIFICATIONS  table.

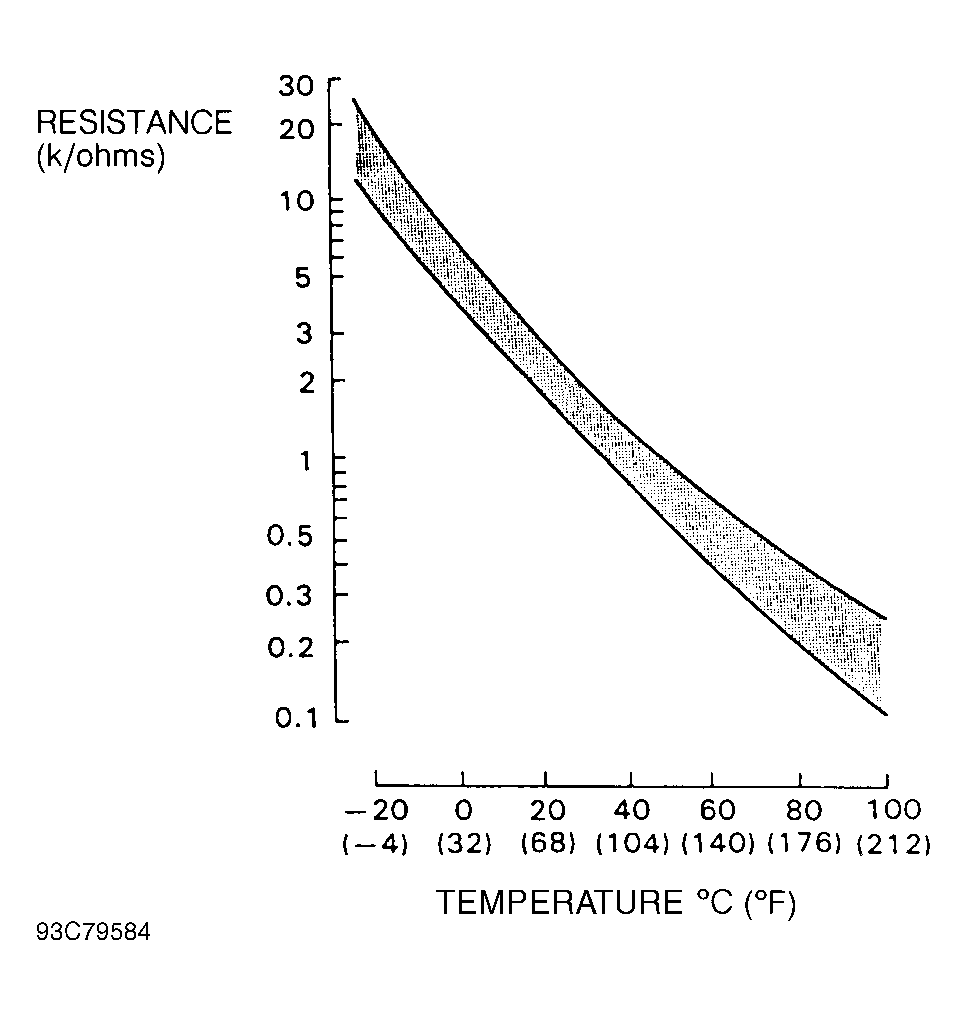

Fig 1: Air Temperature Sensor Chart (Camry, Celica, Paseo & Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Air Temperature Sensor Chart (Except Camry, Celica, Paseo & Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
