Code 14/Test No. 4 - Ignition Signal

NOTE: To test ignition components, see SYSTEM/COMPONENT TESTS article in this section.

CODE 14/TEST NO. 4 - IGNITION SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.7 - 1.0V

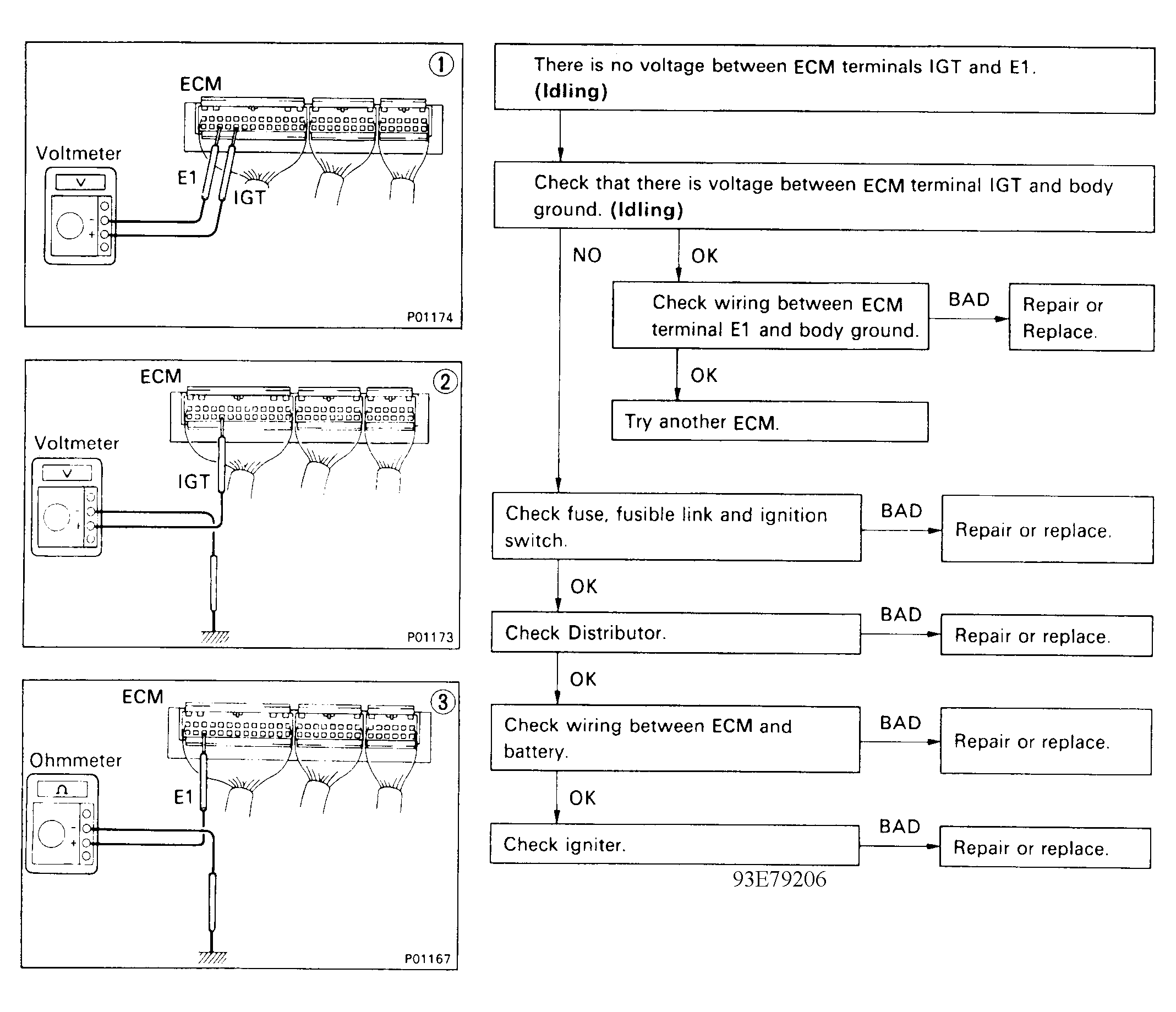

Fig 1: Code 14/Test No. 4 Flow Chart - Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

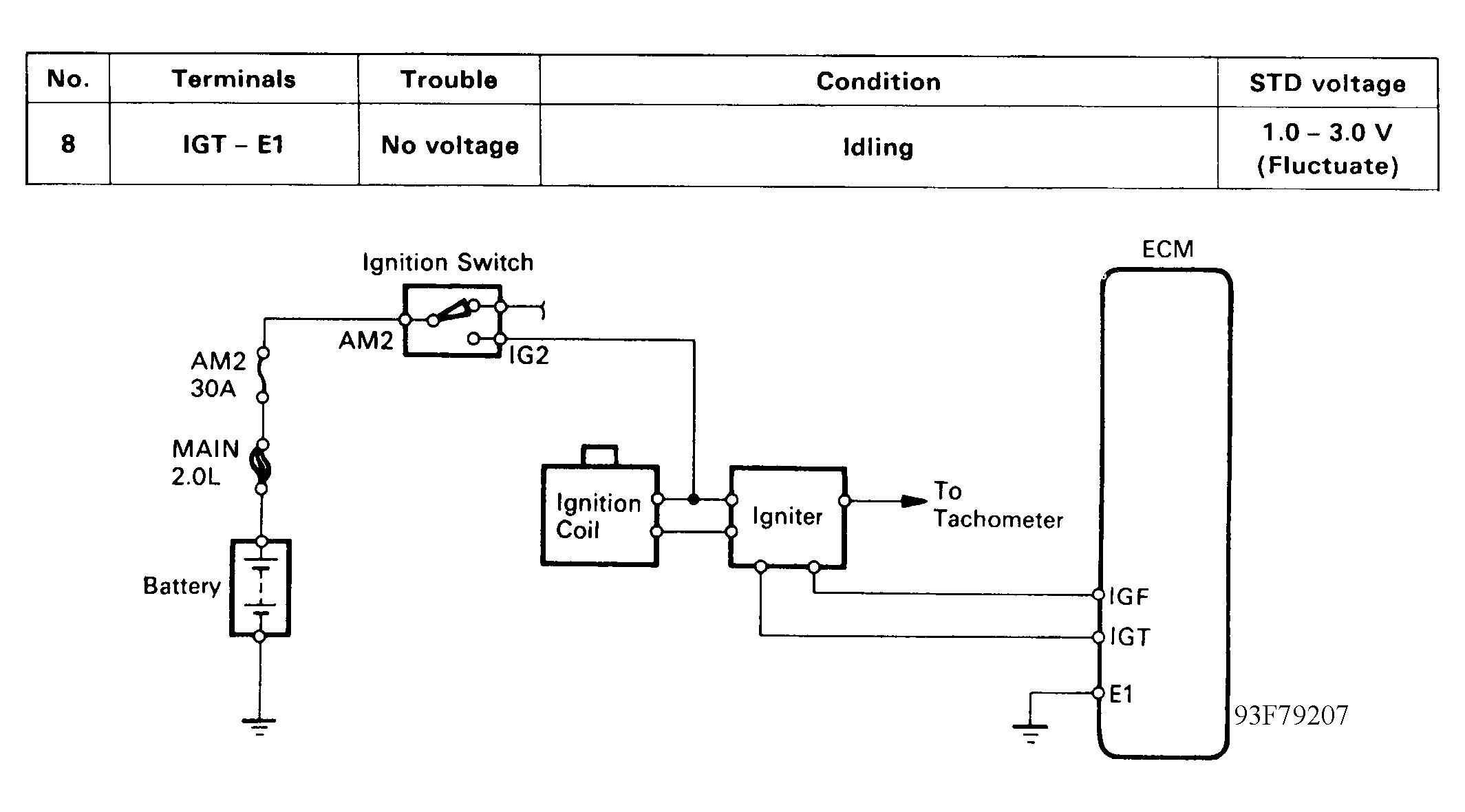

Fig 2: Code 14/Test No. 4 Schematic (5S-FE) - Ignition Signal

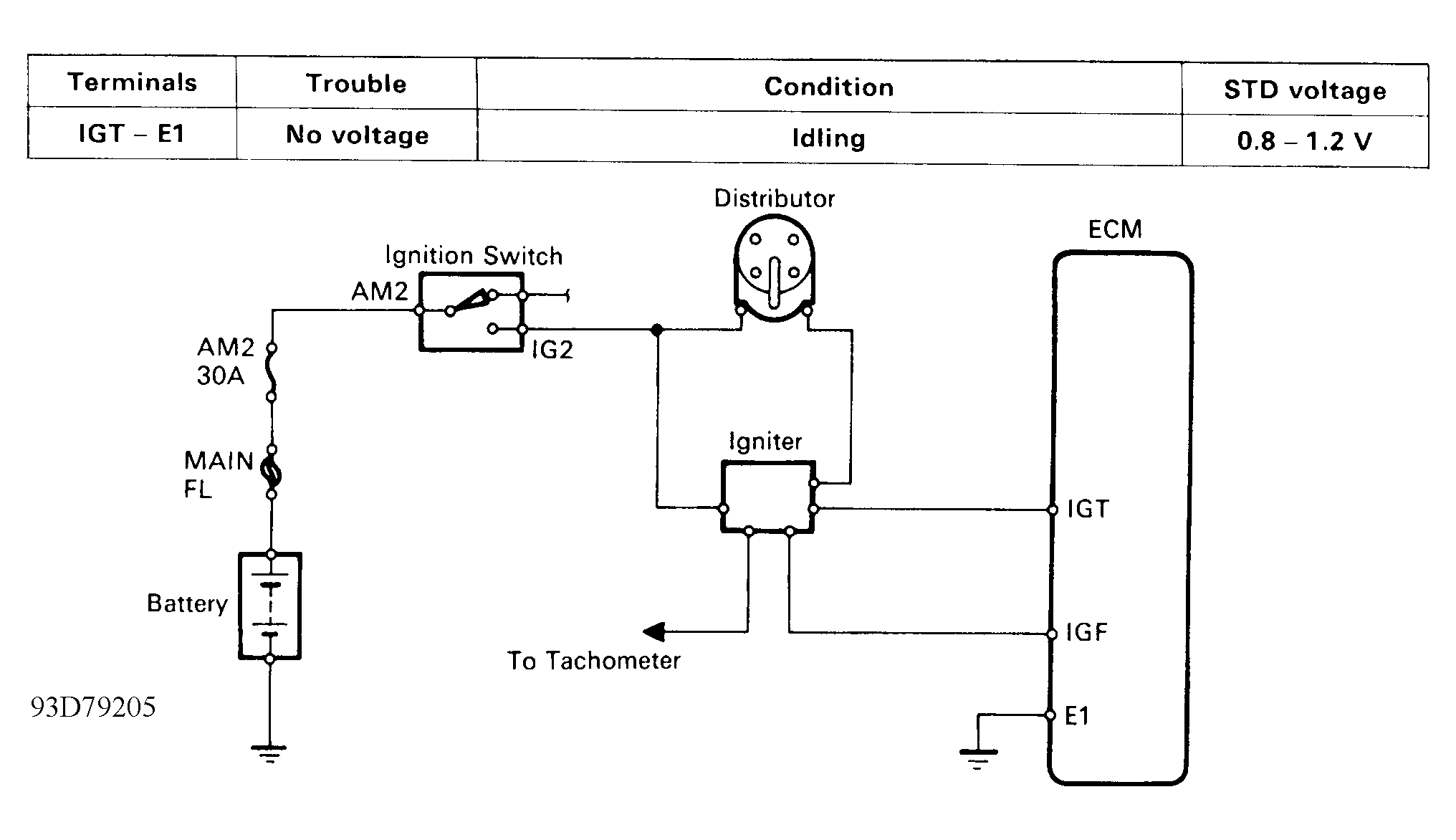

Fig 3: Code 14/Test No. 4 Schematic (3VZ-FE) - Ignition Signal
