Code 24/Test No. 6 - Intake Air Temperature Sensor Signal

CODE 24/TEST NO. 6 - IAT SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
THA - E2	No Voltage	Ignition Switch ON Int. Air Temp. 20°C (68°F)	1 - 3V

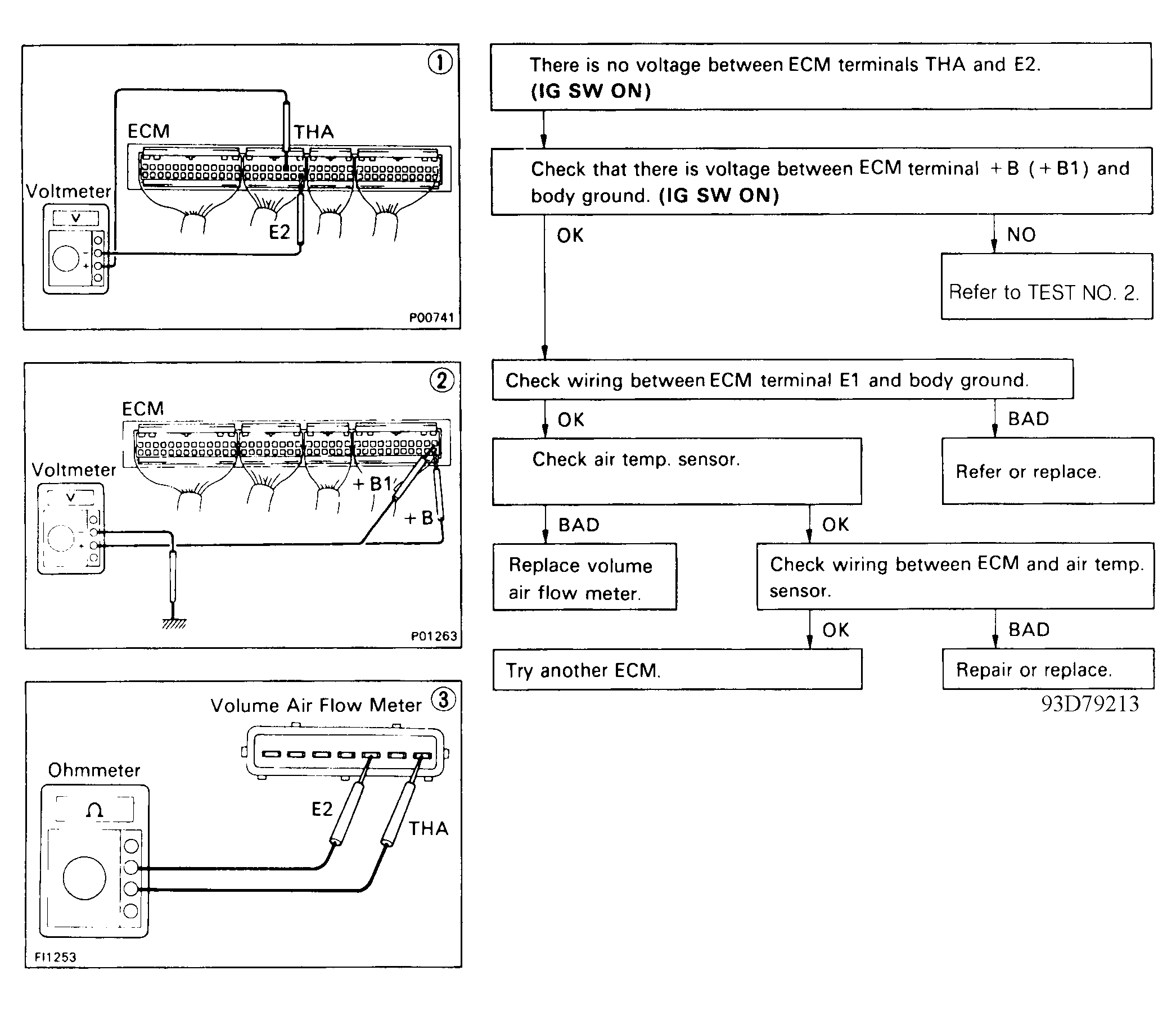

Fig 1: Code 24/Test No. 6 Flow Chart Intake Air Temperature Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

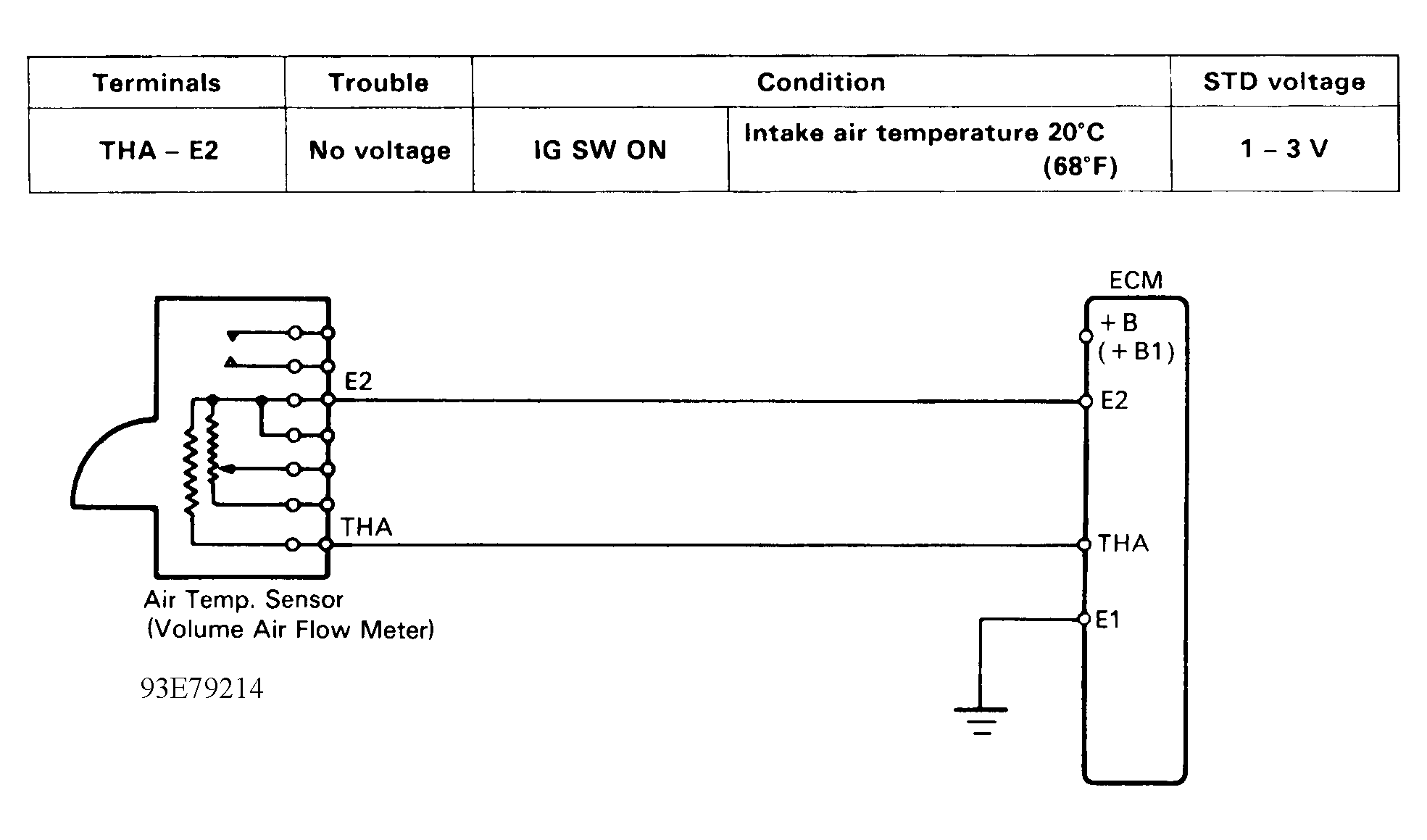

Fig 2: Code 24/Test No. 6 Schematic (5S-FE) Intake Air Temperature Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

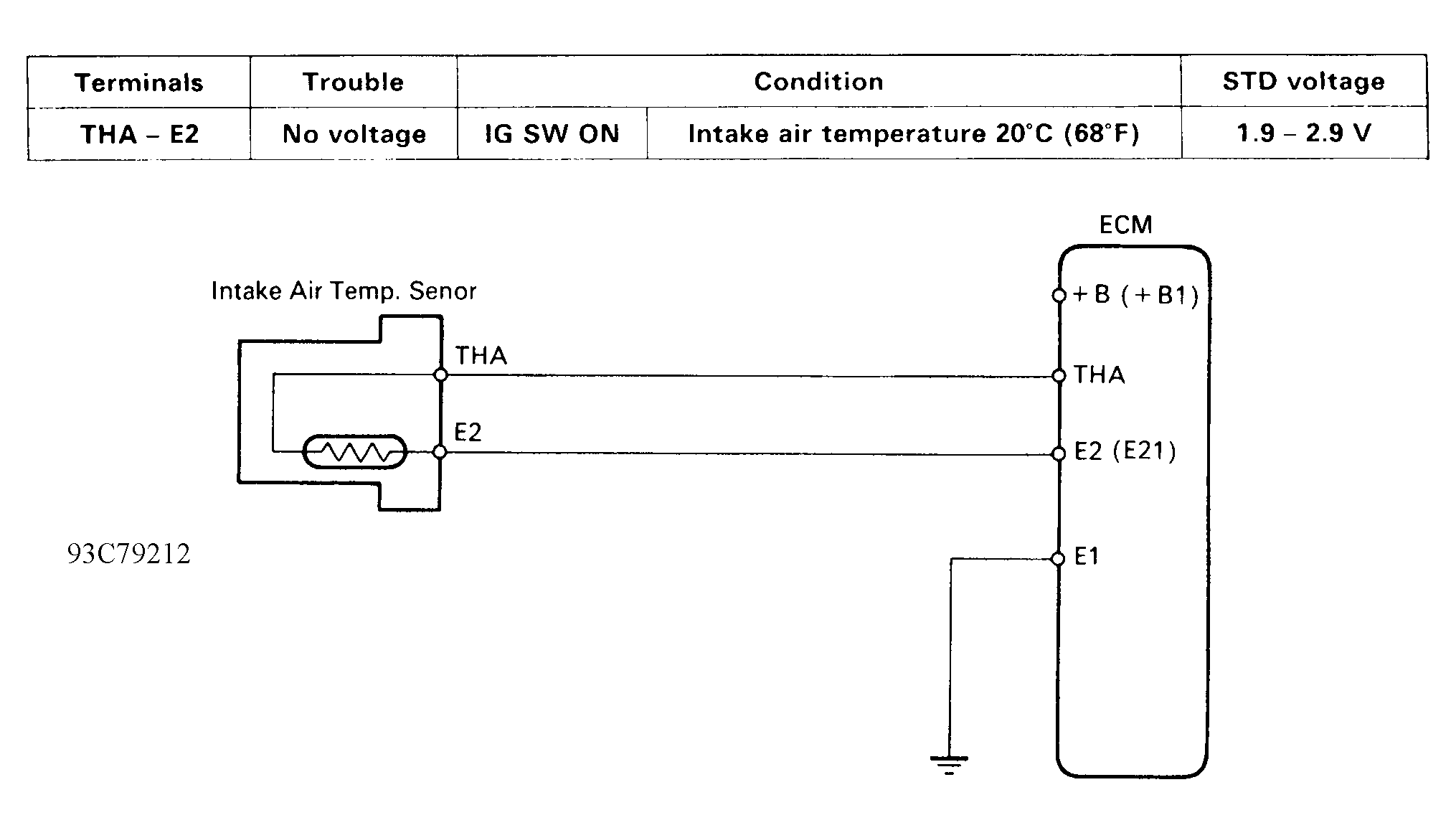

Fig 3: Code 24/Test No. 6 Schematic (3VZ-FE) Intake Air Temperature Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
