Code 41/Test No. 9 - TPS Sensor Signal

CODE 41/TEST NO. 9 - TPS SENSOR SIGNAL (5S-FE)

No.	Terminals	Trouble	Condition	STD Voltage
3	IDL-E2	No Voltage	Ignition Switch On, Throttle Valve Open	8 - 14V
	VC-E2		-------	4.5 - 5.5V
	VTA-E2		Throttle Valve fully closed (Throttle opener must be canceled first.)	0.8 - 1.2V
			Throttle Valve fully open	3.2 - 4.2V

CODE 41/TEST NO. 9 - TPS SENSOR SIGNAL (3VZ-FE)

No.	Terminals	Trouble	Condition	STD Voltage
3	IDL-E2	No Voltage	Ignition Switch On, Throttle Valve Open	10 - 14V
	VC-E2		-------	4.0 - 6.0V
	VTA-E2		Throttle Valve fully closed (Throttle opener must be canceled first.)	0.3 - 0.8V
			Throttle Valve fully open	2.7 - 5.2V

Fig 1: Code 41/Test No. 9 - View of TPS Connector Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 41/Test No. 9 Schematic Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

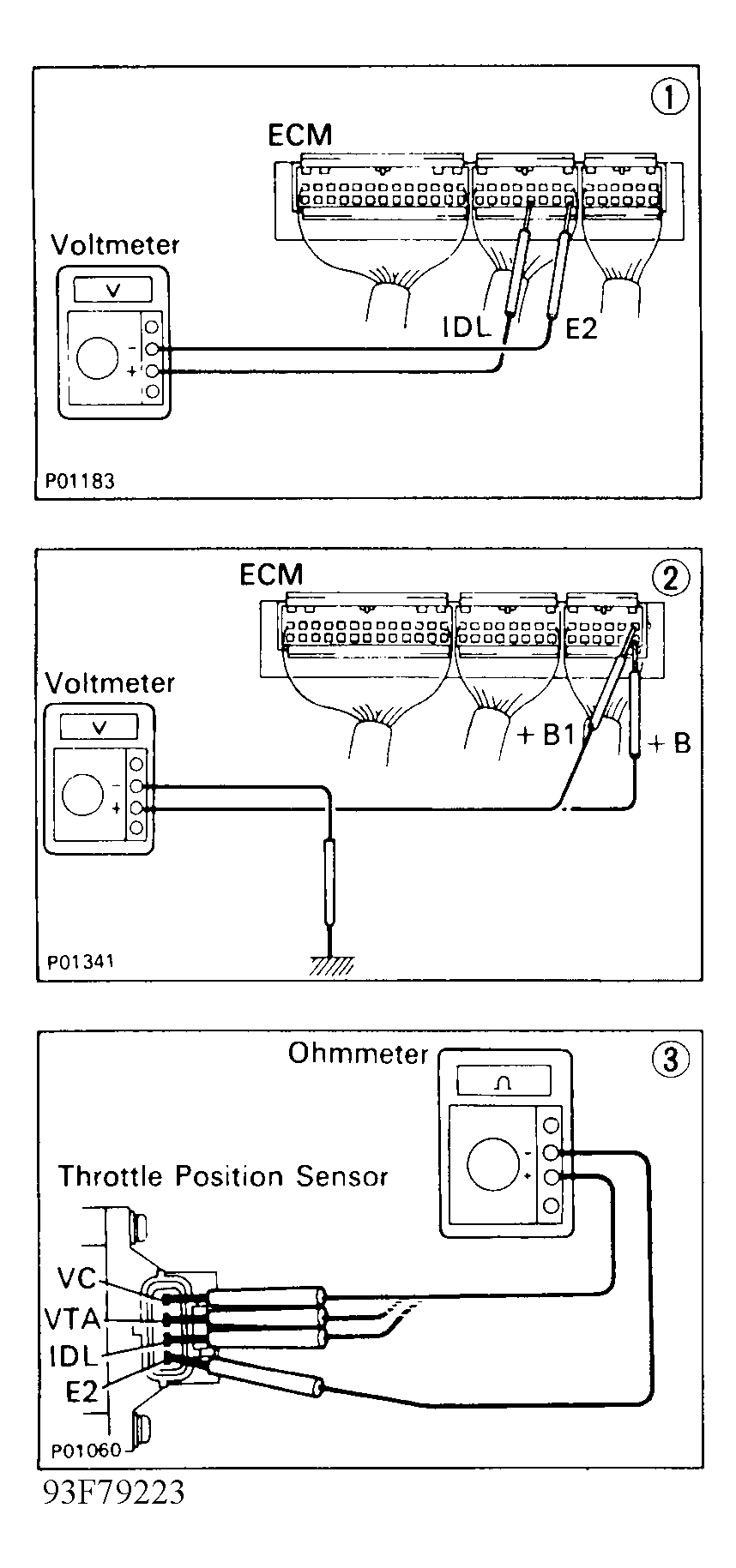

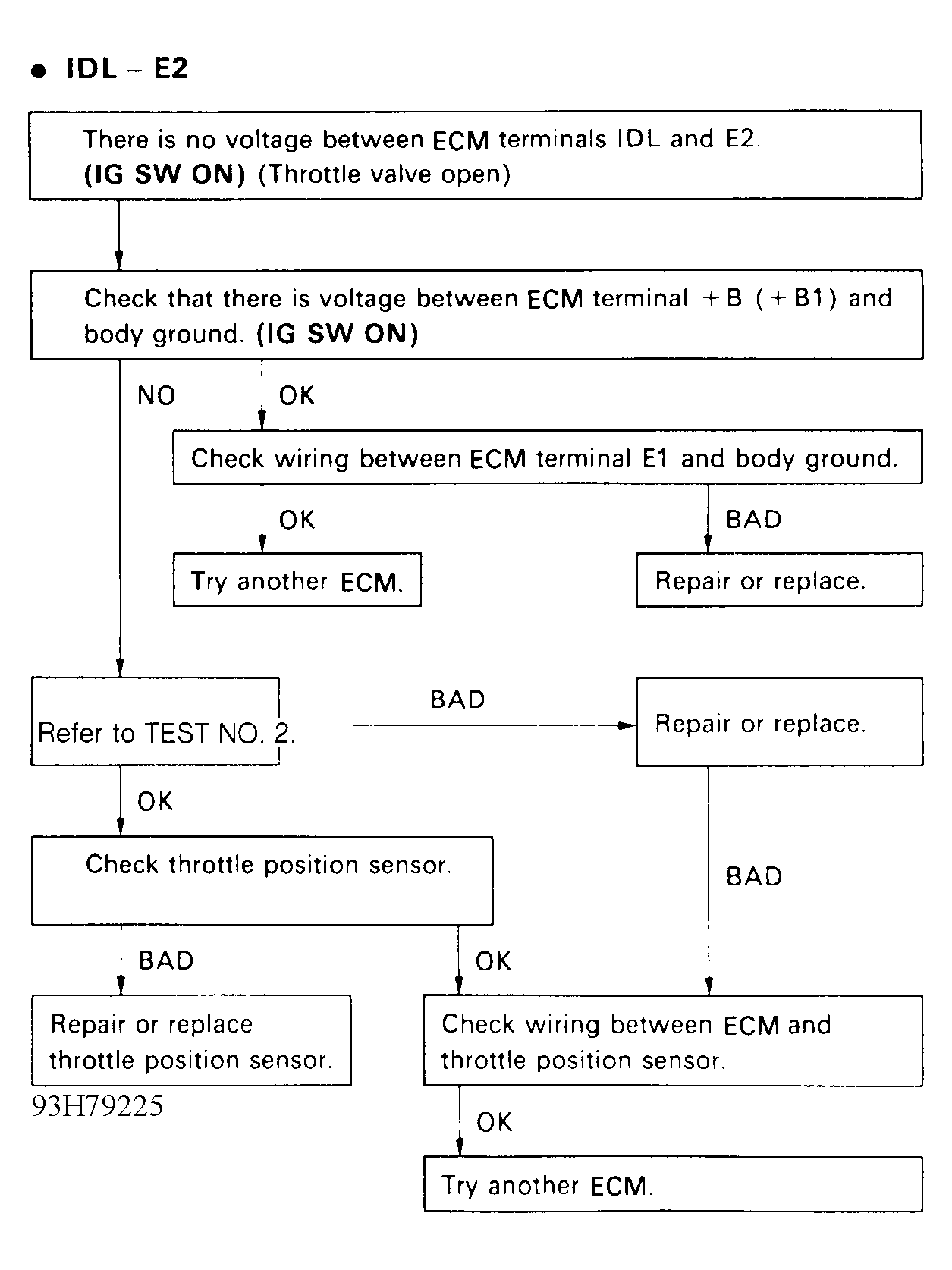

Fig 3: Code 41/Test No. 9 Flow Chart (W/ECT)-Terminals IDL - E2 Throttle Position Sensor Signal

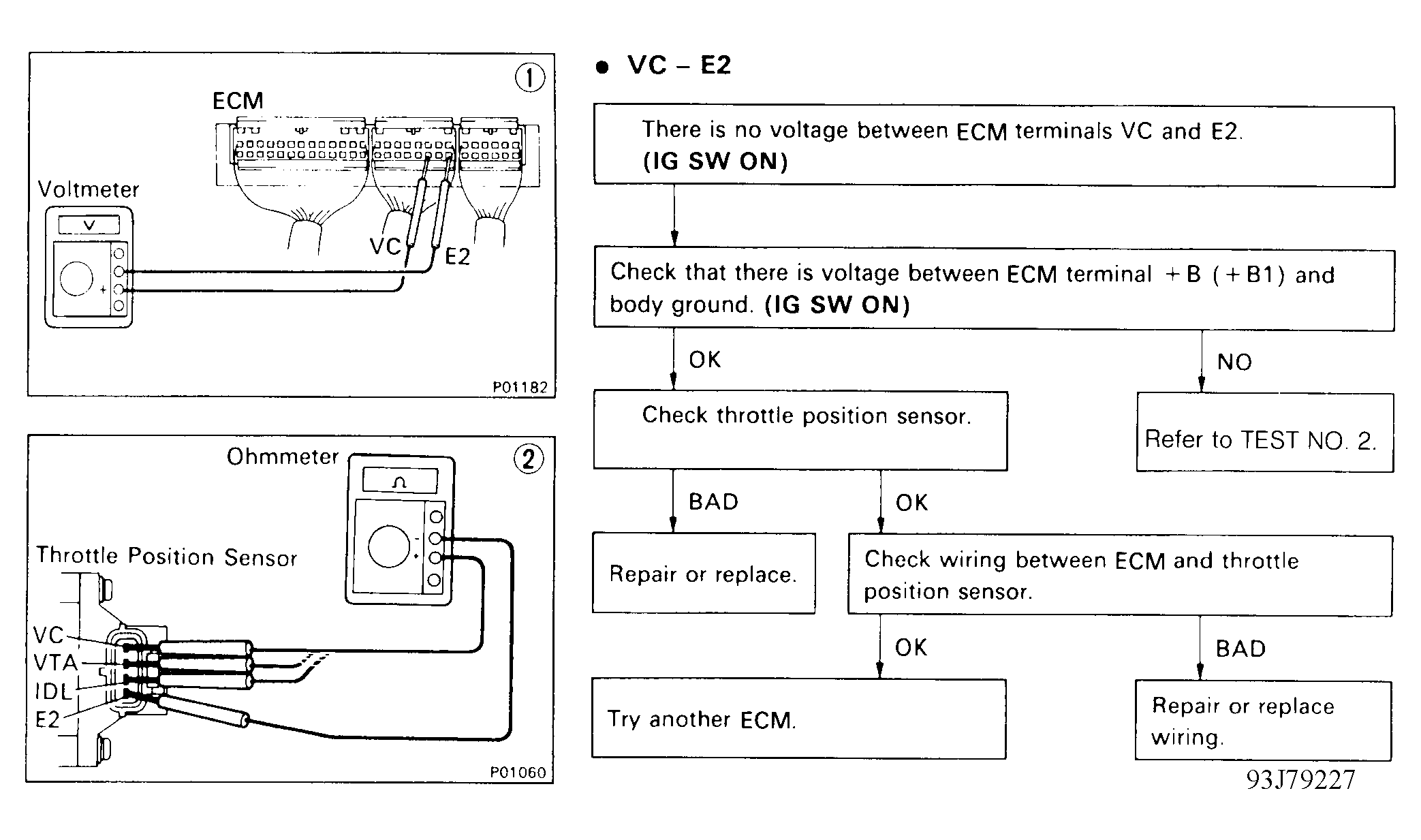

Fig 4: Code 41/Test No. 9 Flow Chart (W/ECT)-Terminals VC - E2 Throttle Position Sensor Signal

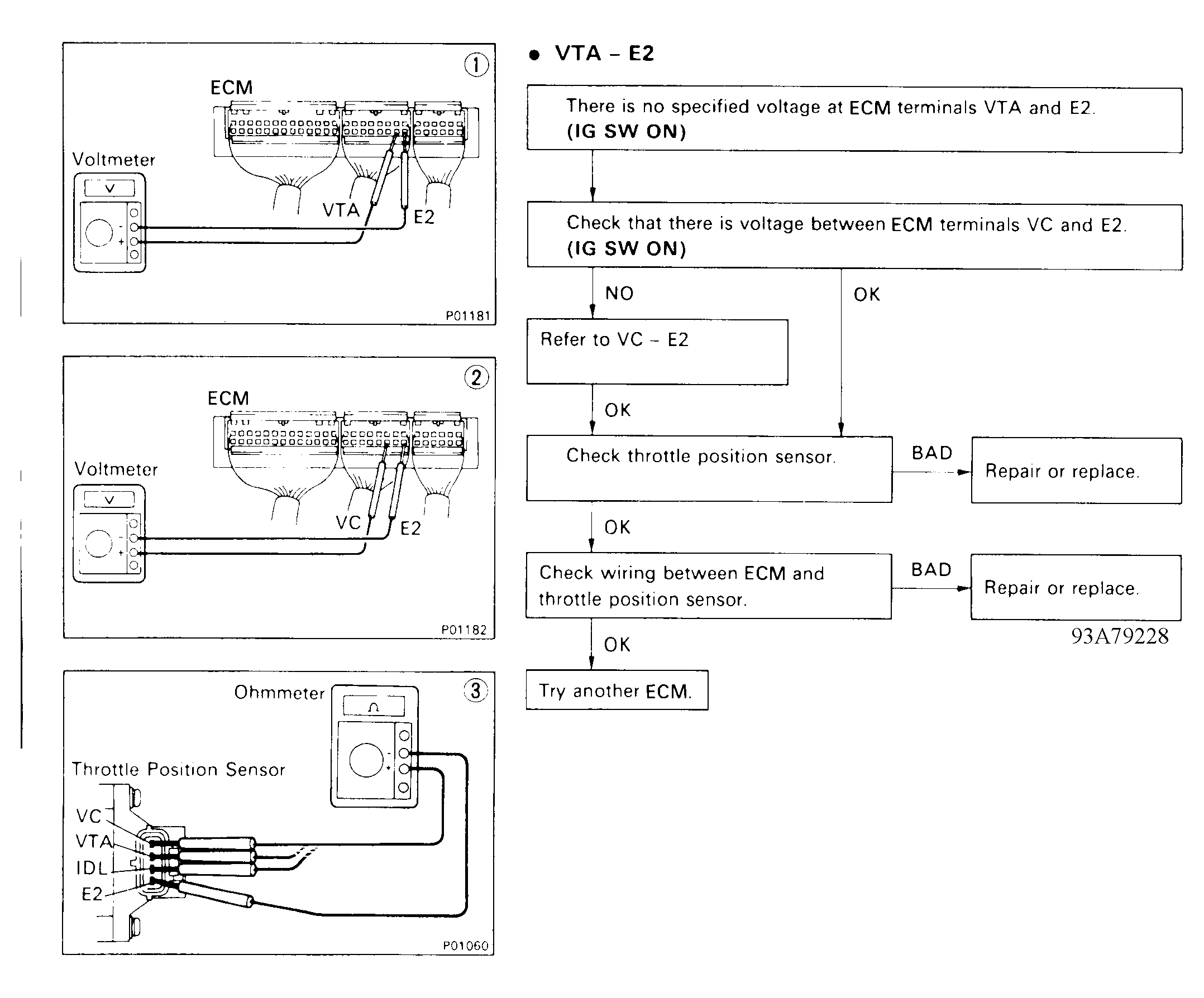

Fig 5: Code 41/Test No. 9 Flow Chart (W/ECT)-Terminals VTA - E2 Throttle Position Sensor Signal
