Pick-Up Coil Air Gap

Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1, Fig 2, or 16 for air gap measuring procedures.
Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS table.

PICK-UP COIL AIR GAP SPECIFICATIONS

Application	In. (mm)
All Engines	.008-.016 (.20-.40)

Fig 1: Checking Pick-Up Coil Air Gap (1.6L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

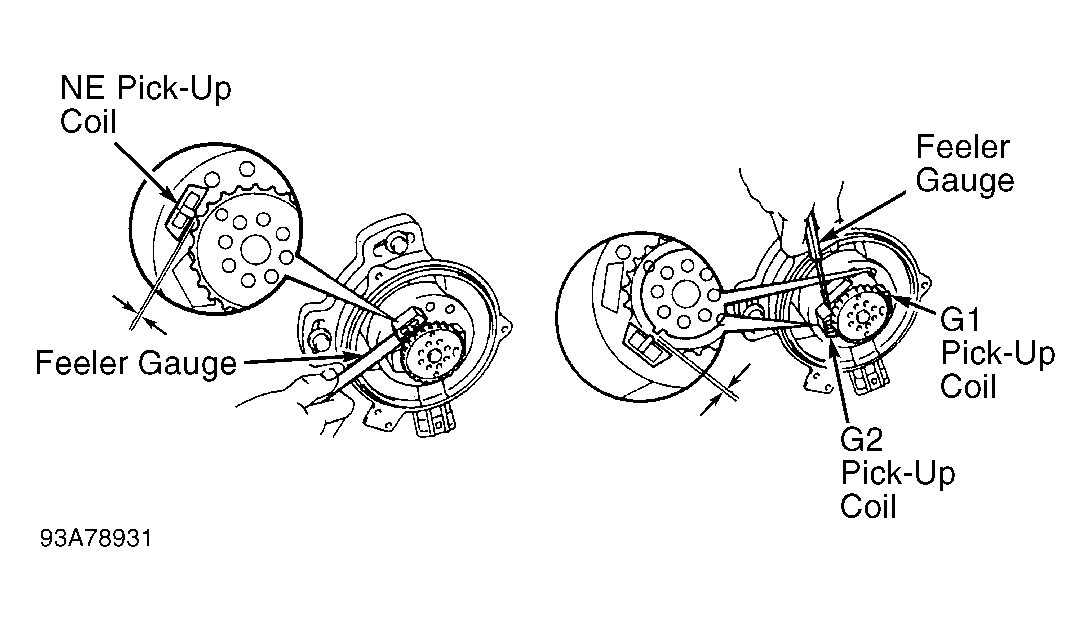

Fig 2: Checking Pick-Up Coil Air Gap (2.0L Turbo)

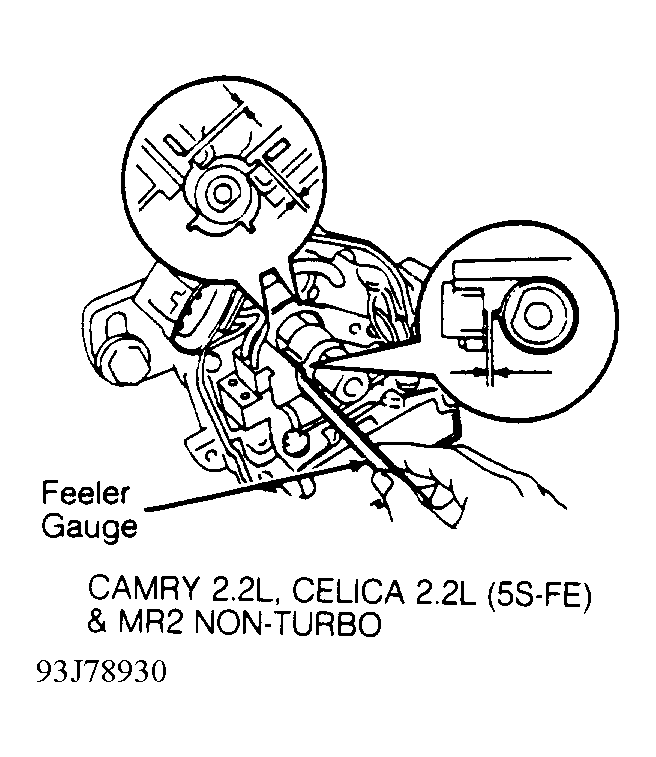

Fig 3: Checking Pick-Up Coil Air Gap (2.2L)
