Engine Controls - Tests W/Codes
›
Trouble Code Diagnostic Charts
›
Diagnostic Circuit Check
Diagnostic Circuit Check

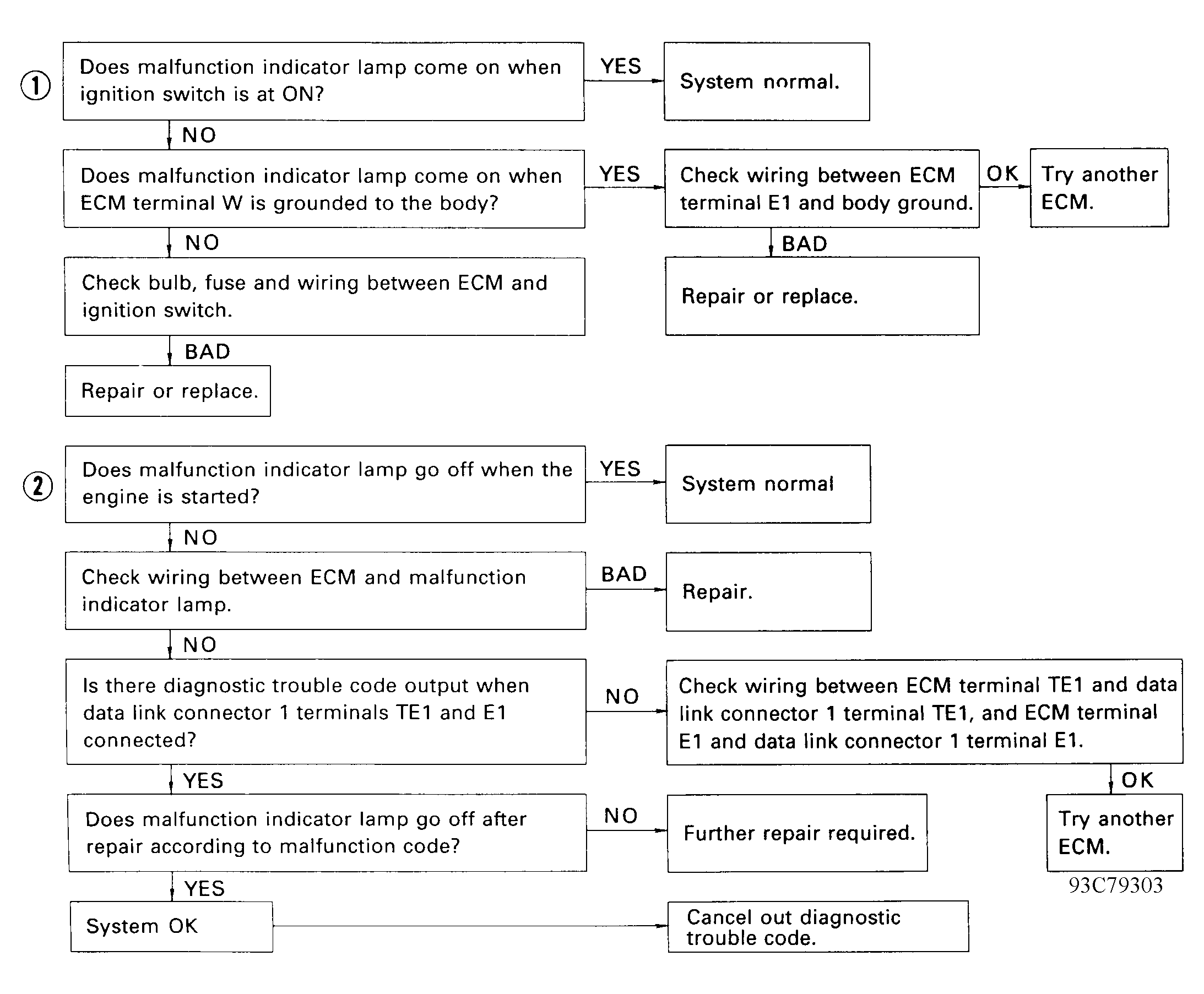

Fig 1: Diagnostic Circuit Check Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

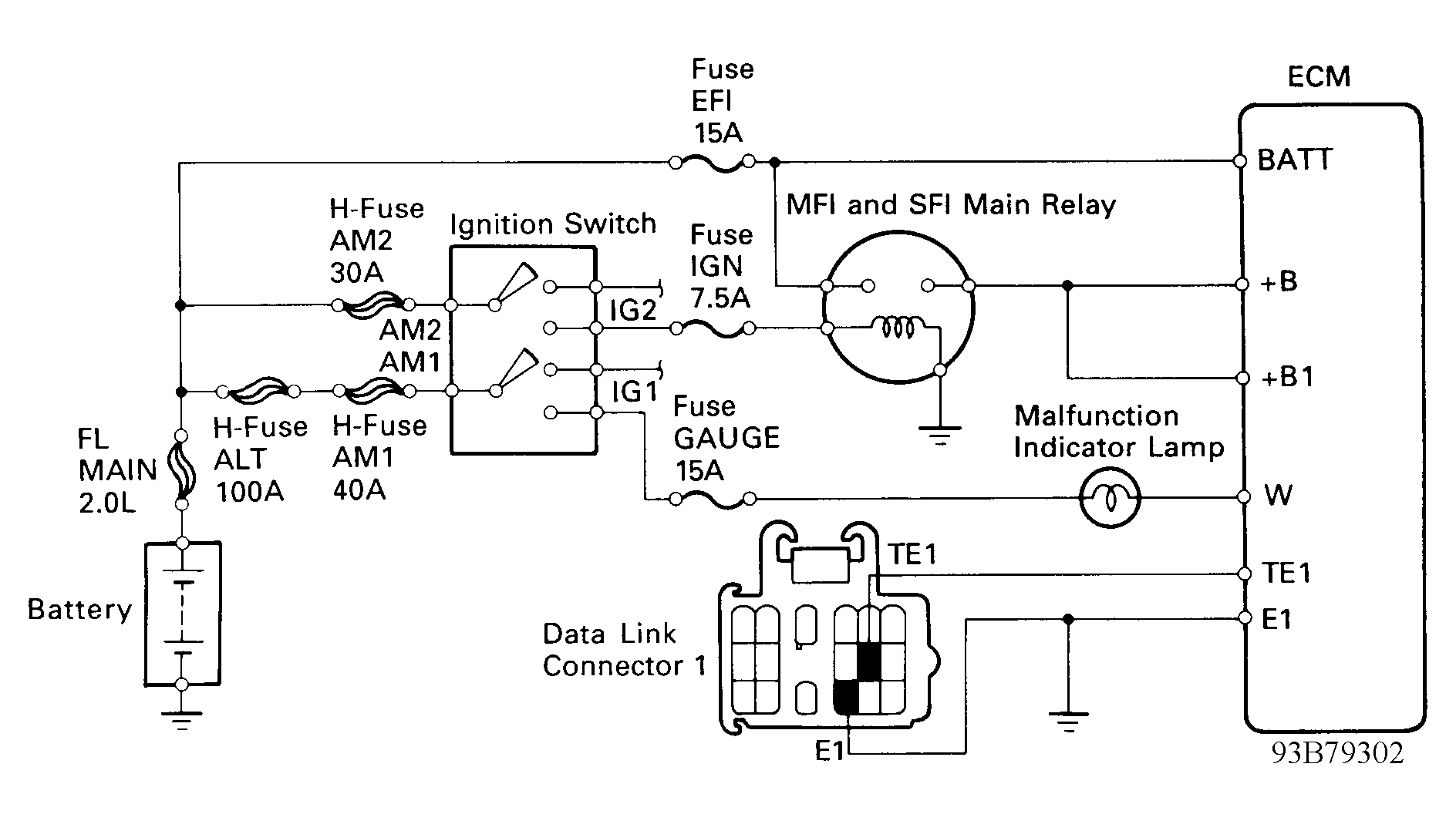

Fig 2: Diagnostic Circuit Check Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
