Testing Anti-Theft Circuits: Notes

NOTE: Perform all tests using a volt-ohmmeter with a minimum 10-megohm input impedance. See Fig 1 and Fig 2 for additional circuit testing.

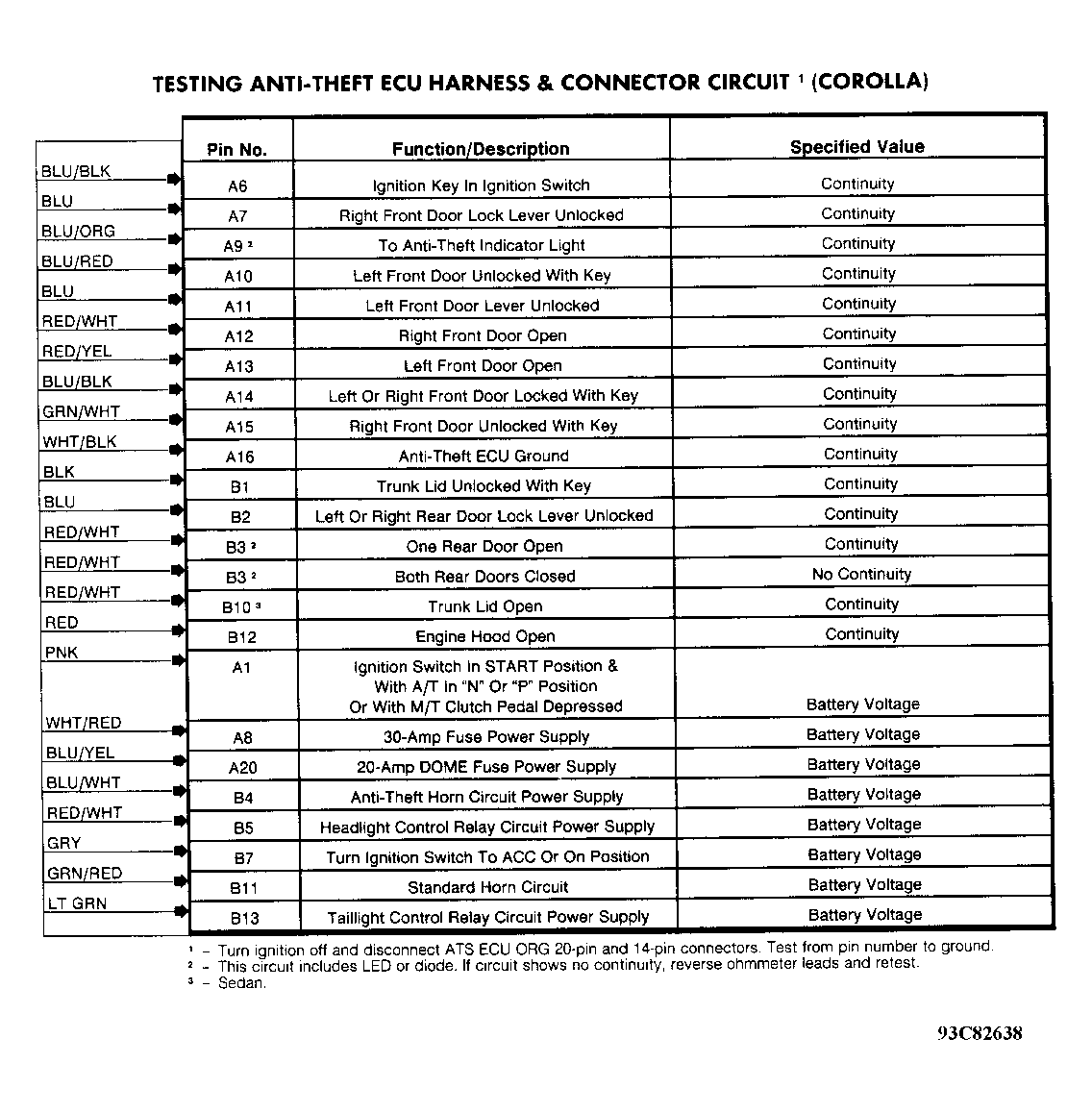

Fig 1: Testing Anti-Theft ECU Harness & Connector Circuit
