Code 22 - Coolant Temperature Sensor Signal
Code 22 - Coolant Temperature Sensor Signal
Fig 1: Code 22 Flow Chart - Coolant Temp. Sensor (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

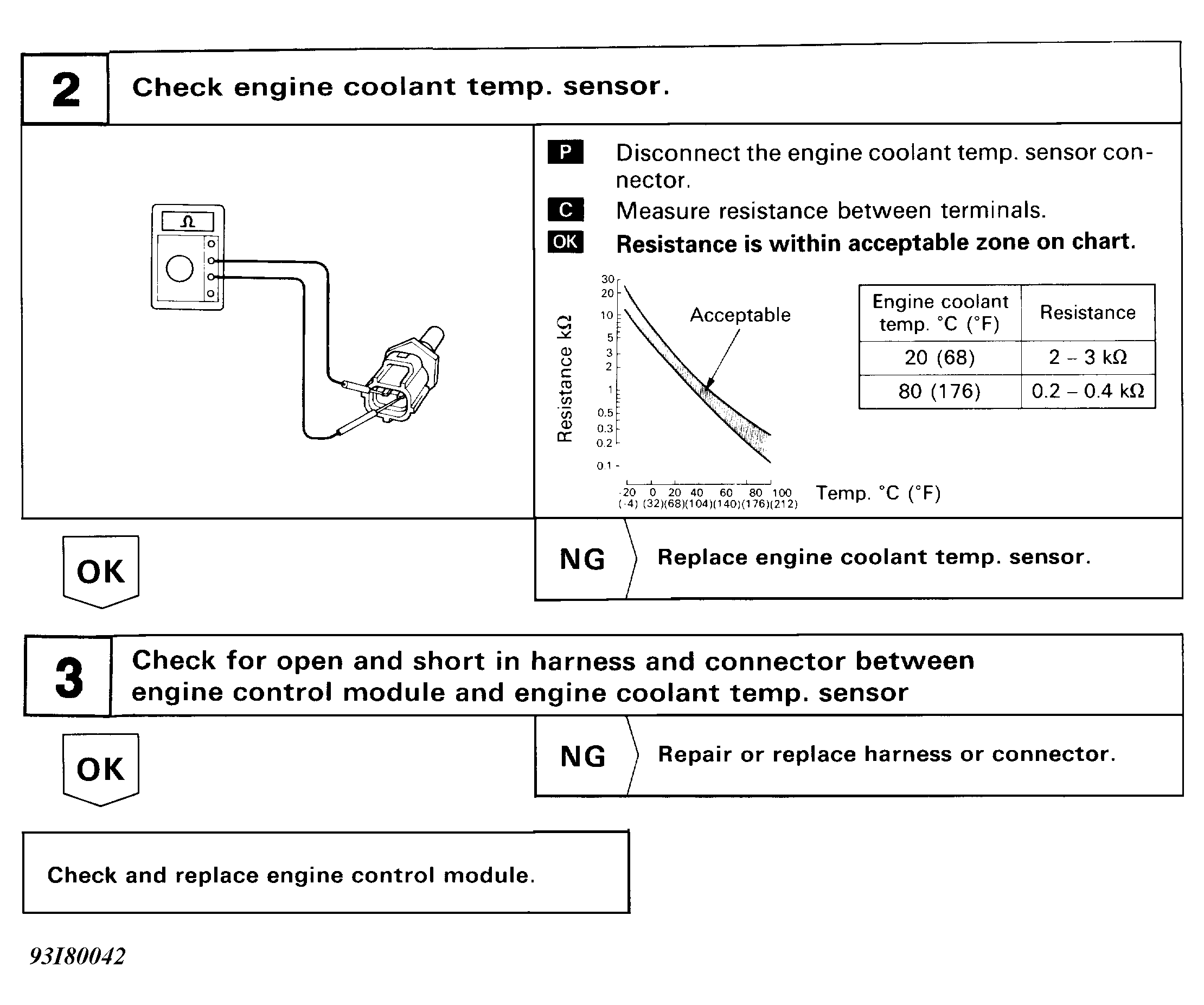

Fig 2: Code 22 Flow Chart - Coolant Temp. Sensor (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
