Code 24 - Intake Air Temperature Sensor

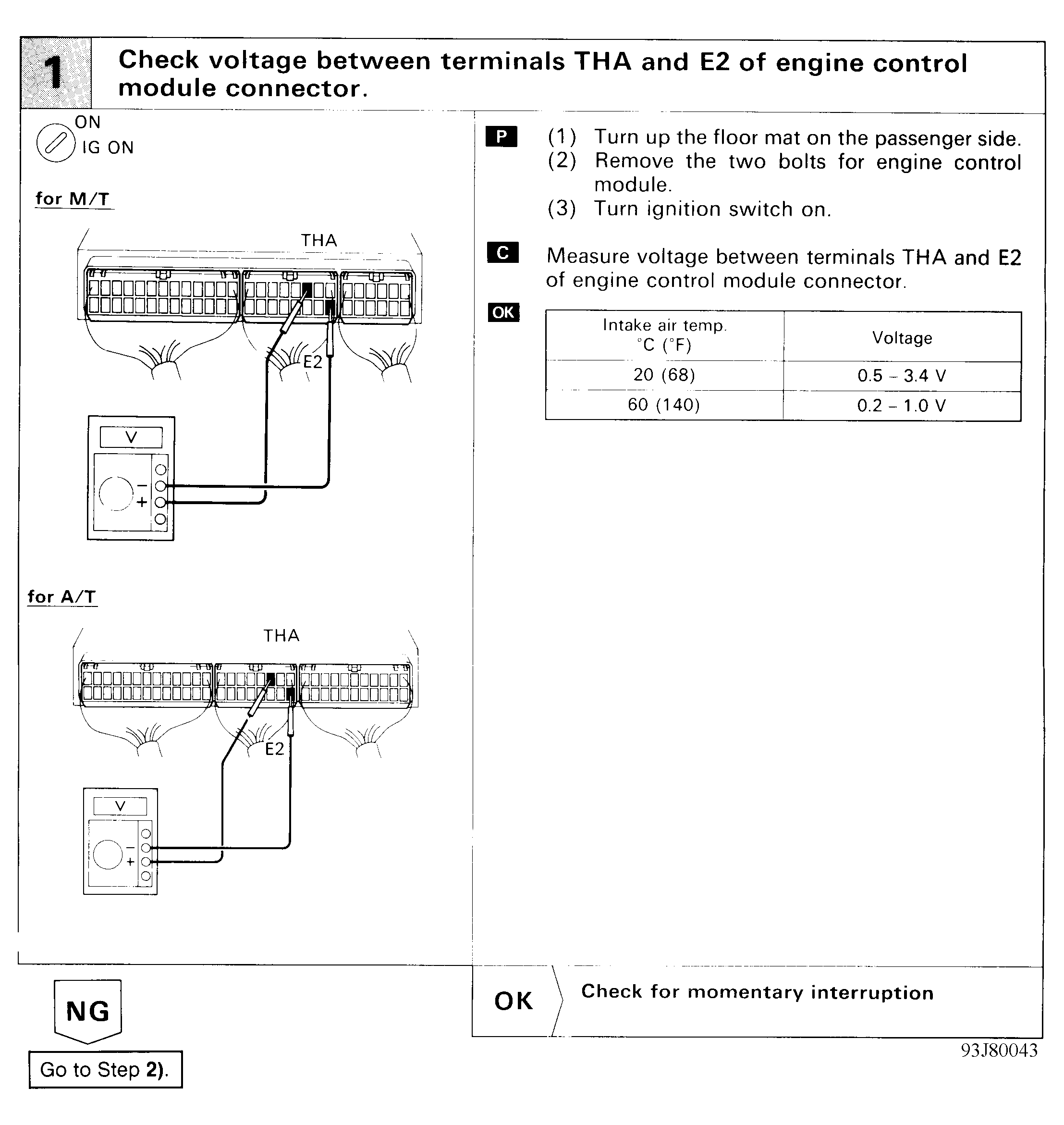

Fig 1: Code 24 Flow Chart - Intake Air Temp. Sensor (1 Of 2)
G93J80043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

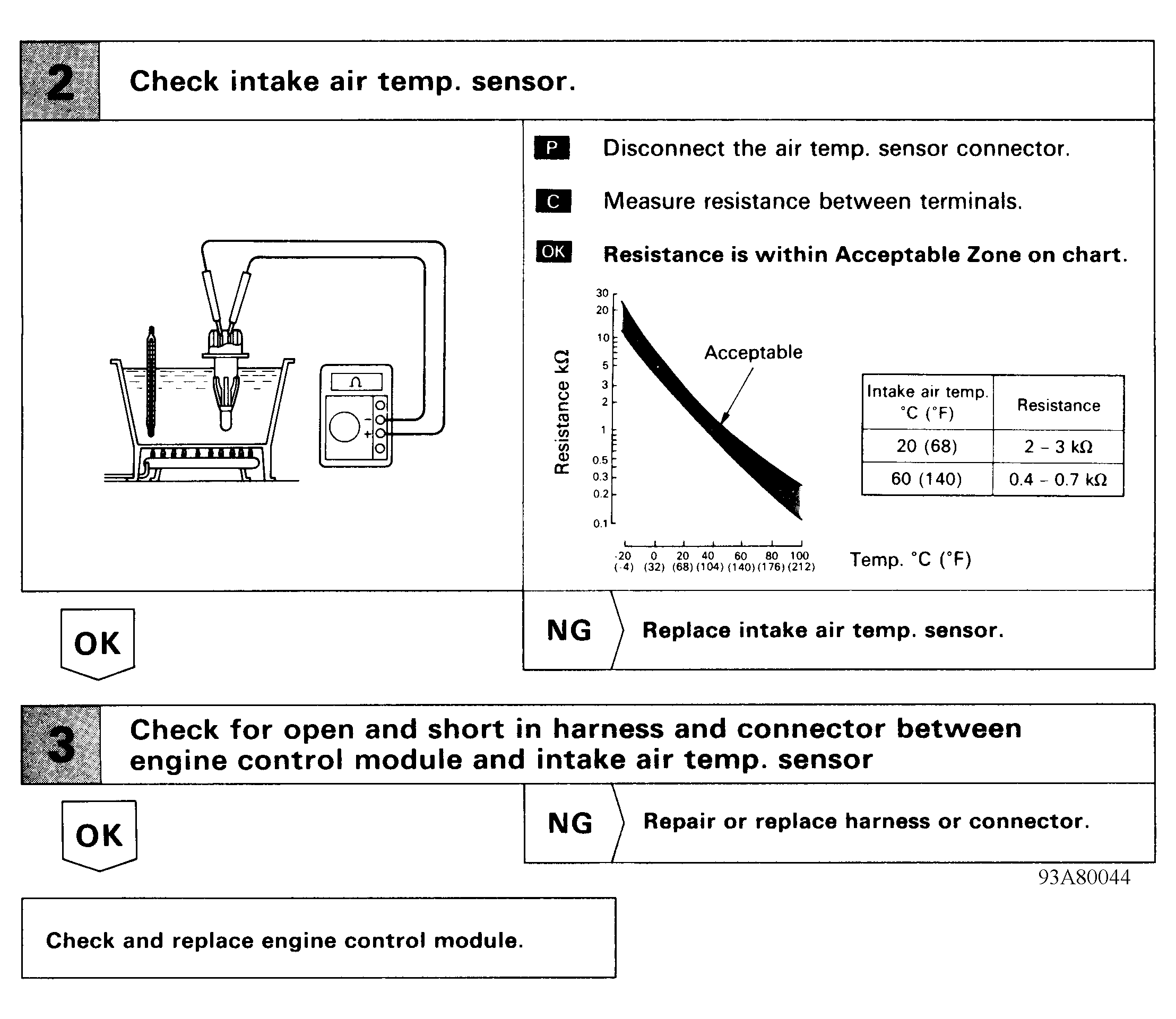

Fig 2: Code 24 Flow Chart - Intake Air Temp. Sensor (2 Of 2)
G93A80044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
