Code 27 - Sub-Oxygen Sensor Signal
Code 27 - Sub-Oxygen Sensor Signal

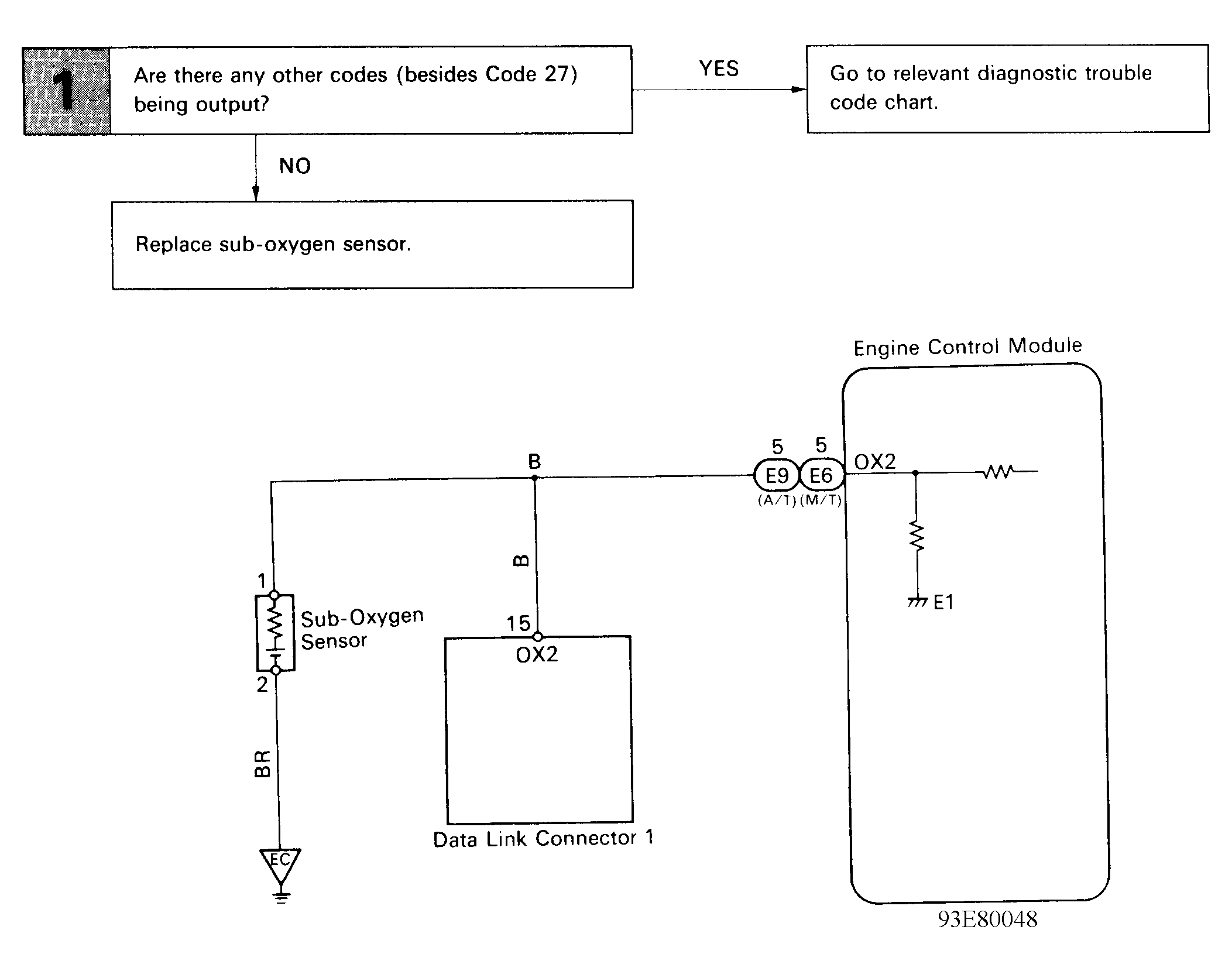

Fig 1: Code 27 Flow Chart - Sub-Oxygen Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
