Engine Controls - Tests W/Codes
›
Trouble Code Diagnostic Charts
›
Code 42 - Vehicle Speed Sensor Signal
Code 42 - Vehicle Speed Sensor Signal

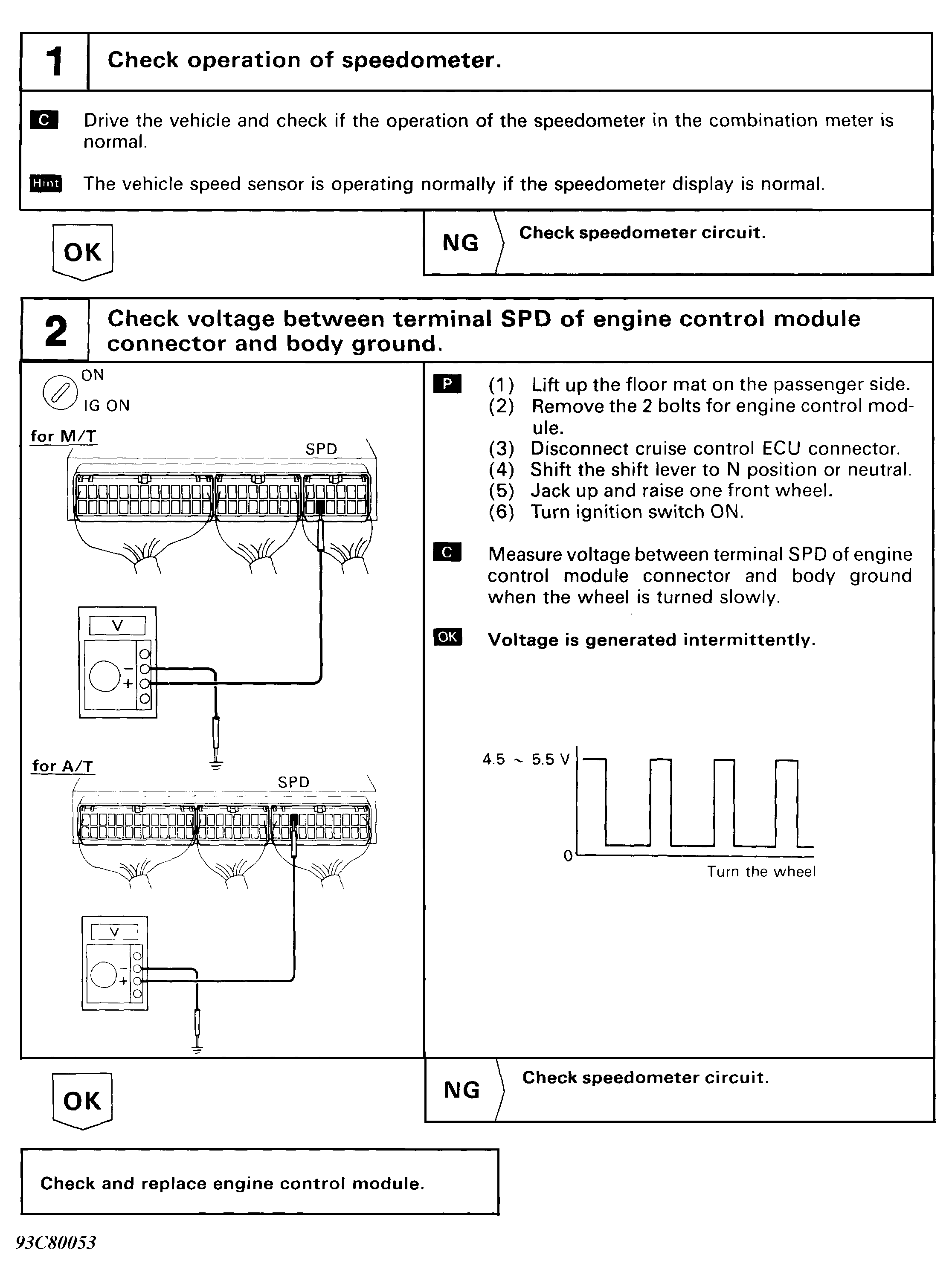

Fig 1: Code 42 Flow Chart - Vehicle Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
