Code 52 - Knock Sensor Signal (7A-FE)

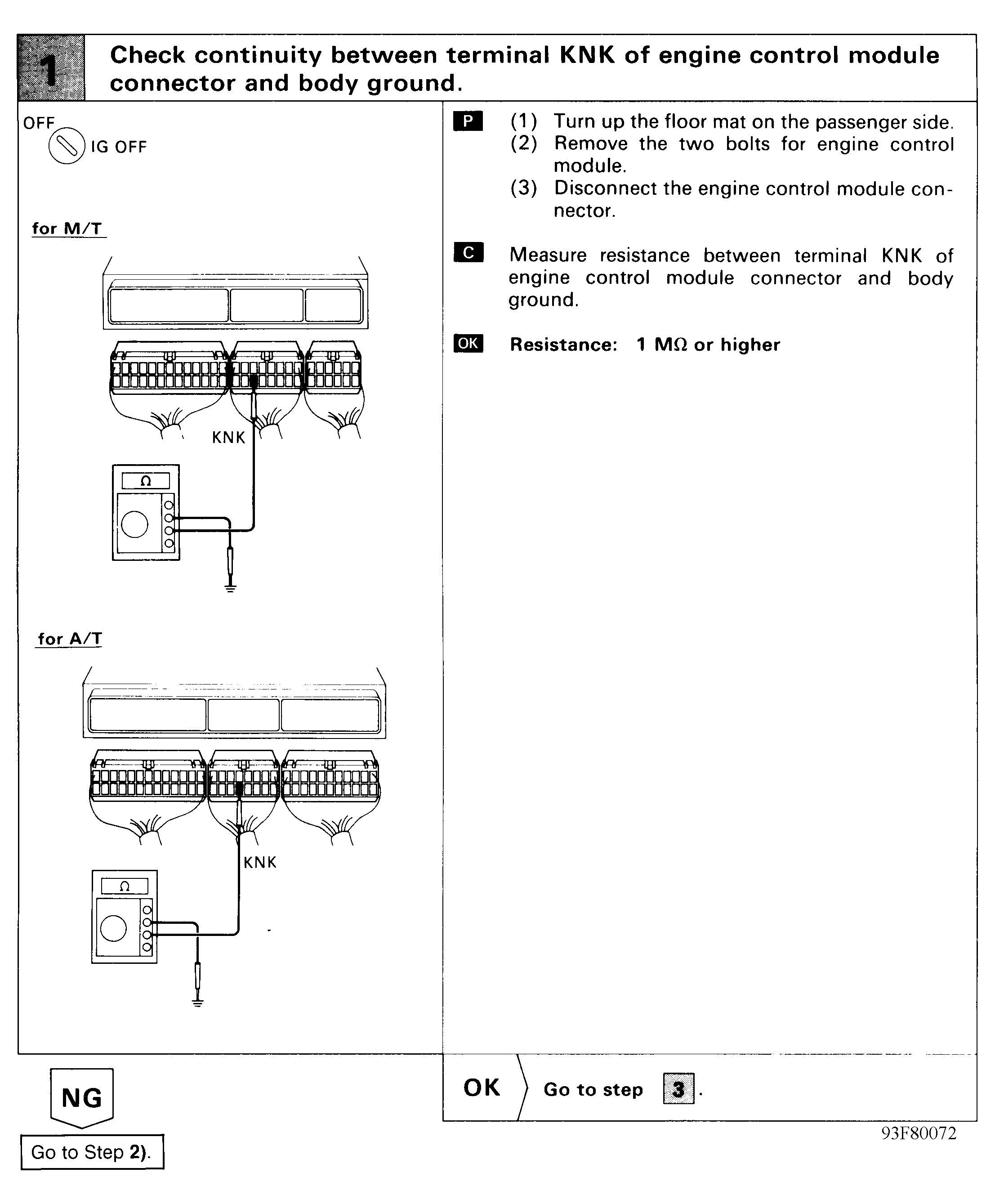

Fig 1: Code 52 Flow Chart - Knock Sensor Signal (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

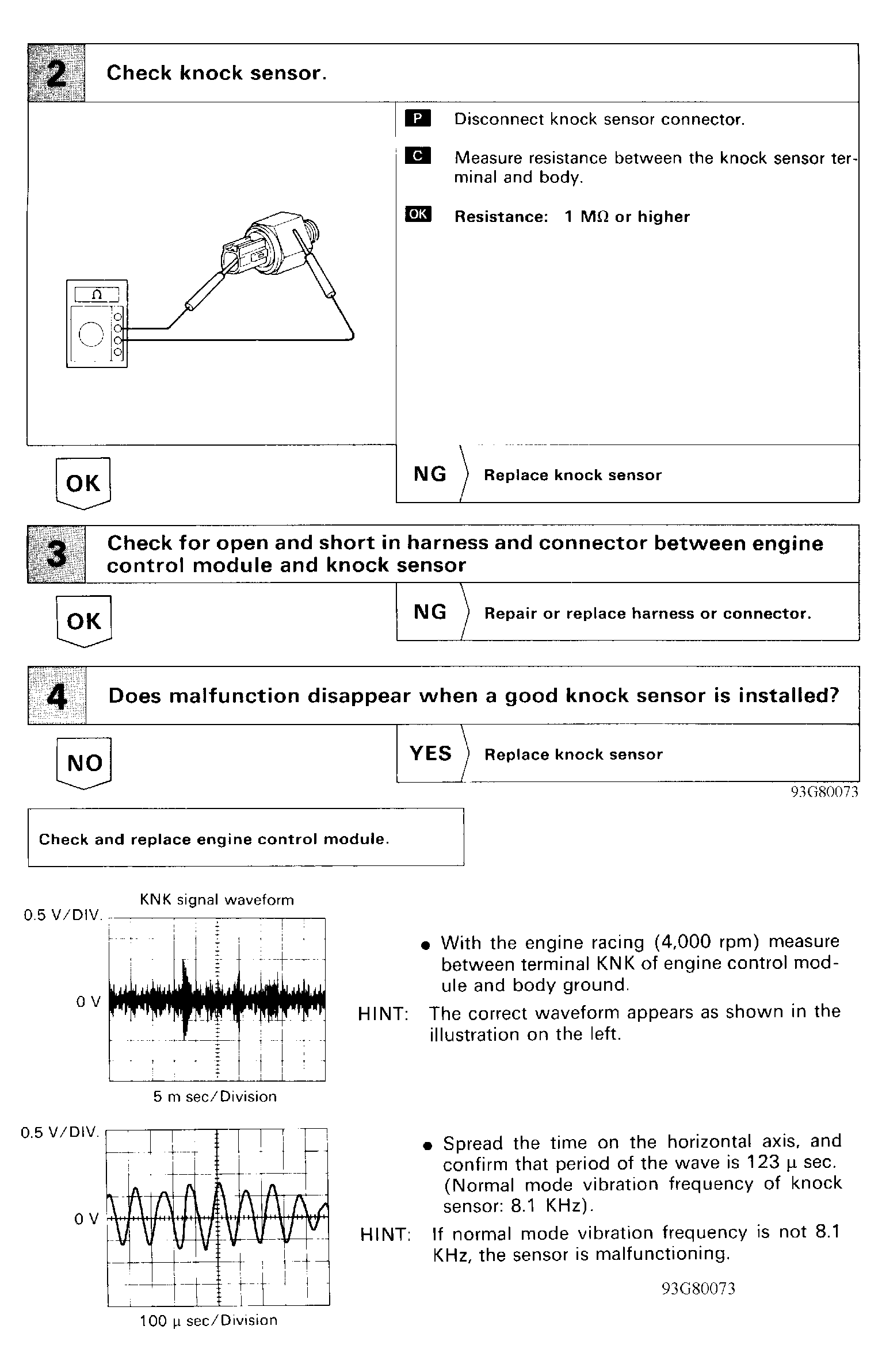

Fig 2: Code 52 Flow Chart - Knock Sensor Signal (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
